Product Description

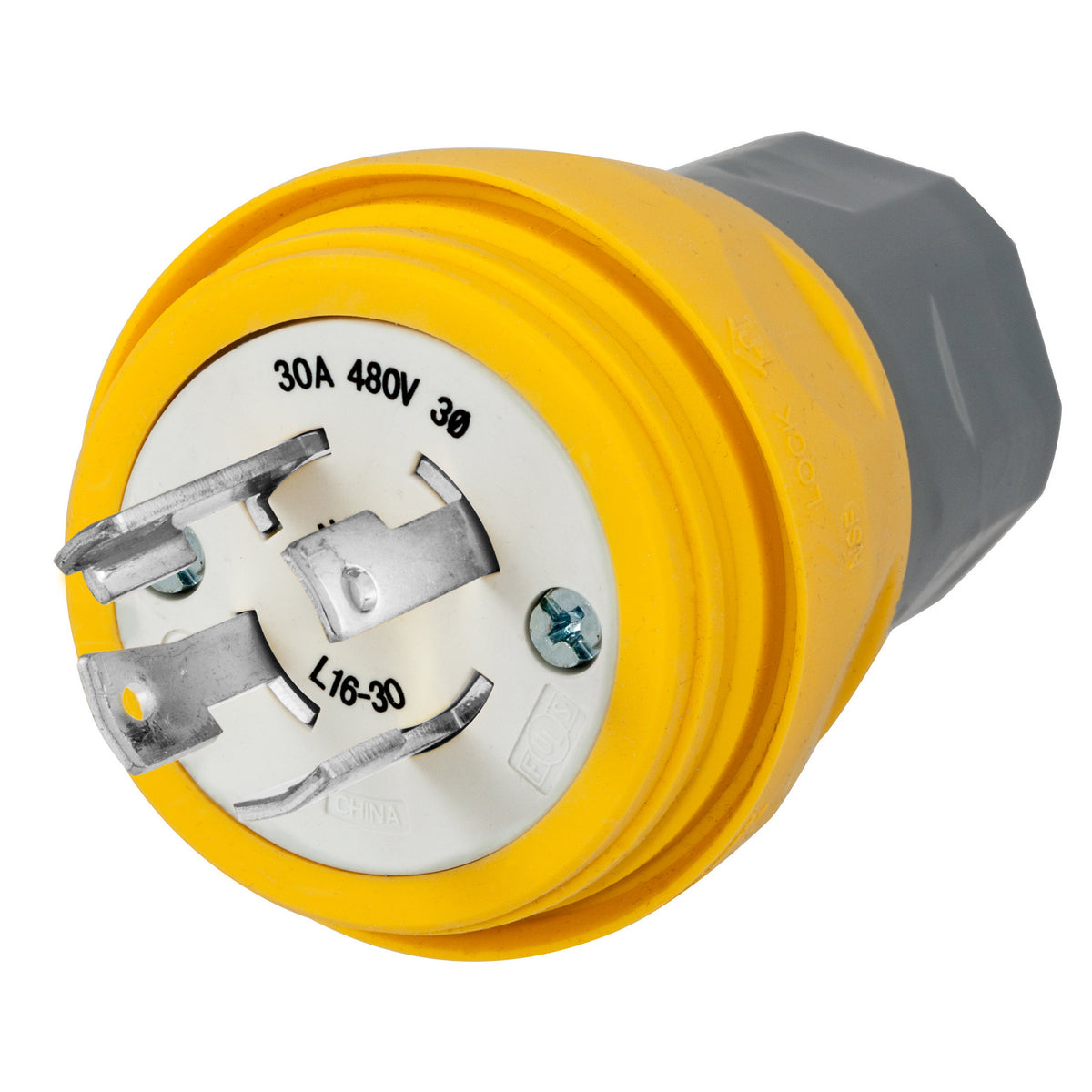

The Hubbell HBL28W76 is a watertight locking plug designed for commercial and industrial use. It operates at 480 VAC and has a current rating of thirty amps. This product features a three-phase grounding male design suitable for various applications.
- Watertight design prevents water ingress.
- Works with cords ranging from three eighths to one inch in diameter.
- Meets NEMA 4/4X/6/6P/12 standards for enclosure ratings.
Product Highlights
This locking plug is made of elastomer and composite materials which provide durability and resistance to environmental factors. The temperature range for operation is from minus forty to sixty degrees Celsius.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: HBL28W76
Technical Specifications
-
Amperage Rating: 30 A
-
Voltage Rating: 480 VAC
-
Number of Poles: 3
-
Number of Wires: 4
-
Horsepower: 10 hp
-
Dimensions: 2.77 x 2.77 x 3.94 inches
-
Cord Diameter: 3/8 to 1 inch
-
NEMA Rating: L16-30P
-
Temperature Rating: -40 to 60 degrees Celsius
-
Material: Elastomer/Composite
-
Enclosure: NEMA 4/4X/6/6P/12
-
Standards/Approvals: RoHS Compliant, UL 498, CSA C22.2 No. 42
-
Terminal Type: Screw
