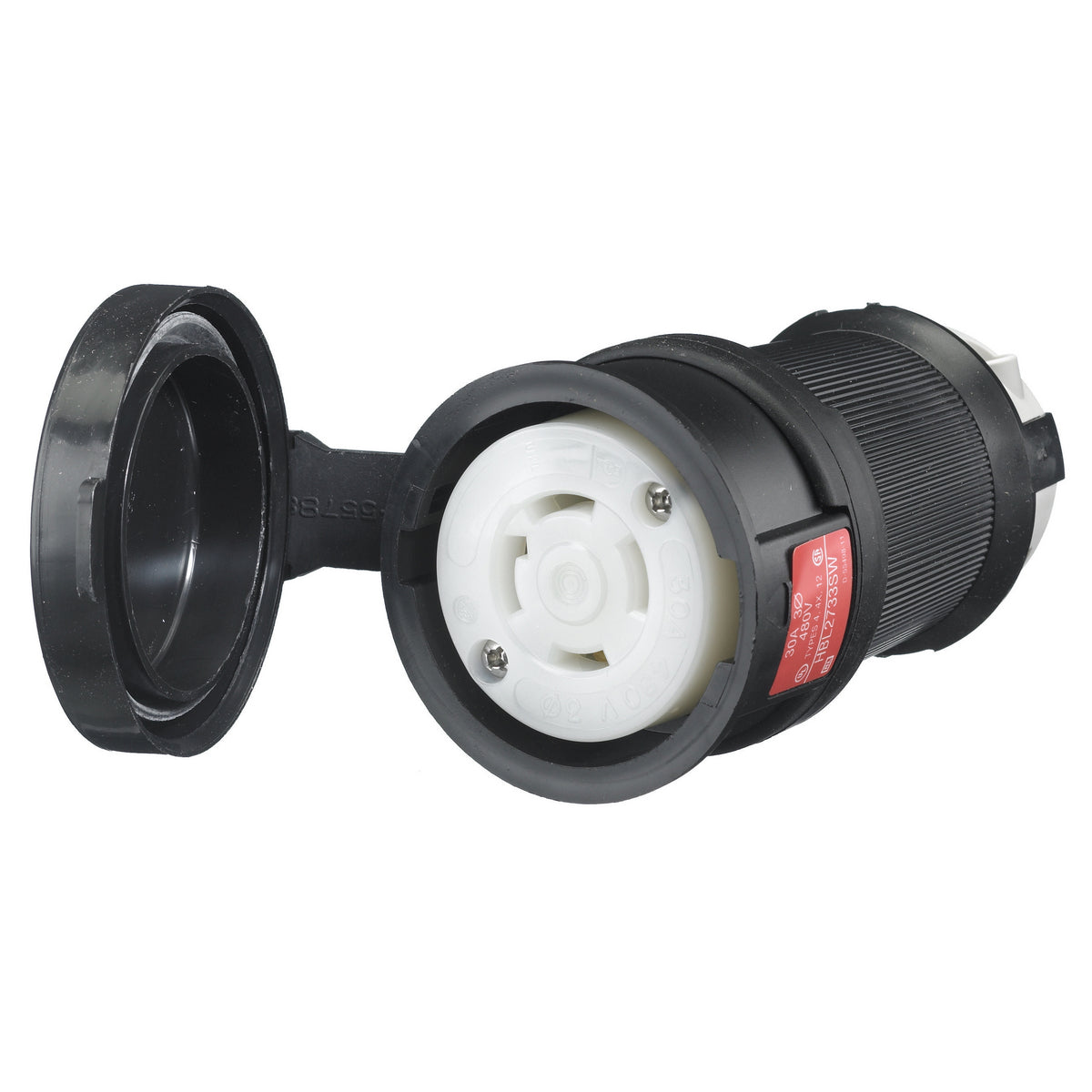

Hubbell HBL2733SW HUB 3P 4W 3PH 480V 30A Shrouded Conn

Product Description

The Hubbell HBL2733SW is a wiring device designed for heavy-duty industrial use. It features a 3-phase grounding standard watertight cord mount connector suitable for applications requiring robust electrical connections. This device handles a voltage rating of 480 VAC and a current rating of thirty amps, which makes it ideal for high-powered equipment.

• UL type 4X seal protects connections from environmental stress.
• Impact-resistant thermoplastic housing for durability in tough conditions.
• Pressure screw terminal ensures secure wiring connections.

Product Highlights

This connector is perfect for industrial environments where reliable and safe power connections are crucial.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358523194

Technical Specifications

• Application: Heavy Duty Industrial Applications
• Voltage Rating: 480 VAC
• Amperage Rating: 30 A
• Horsepower: 10 hp
• Number of Poles: 3
• Number of Wires: 4
• Cord Diameter: 0.35 to 1.15 in
• Temperature Rating: -40 to 75 deg C
• Enclosure: IP66
• NEMA Rating: L16-30R
• Material: Composite
• Dimensions: 2.75 x 2.75 x 4.4 in
• Standards/Approvals: RoHS Compliant, CSA C22.2 No. 42/0.6, Federal Specification W-C-596, NEMA WD1/WD5, UL 498
