Product Description

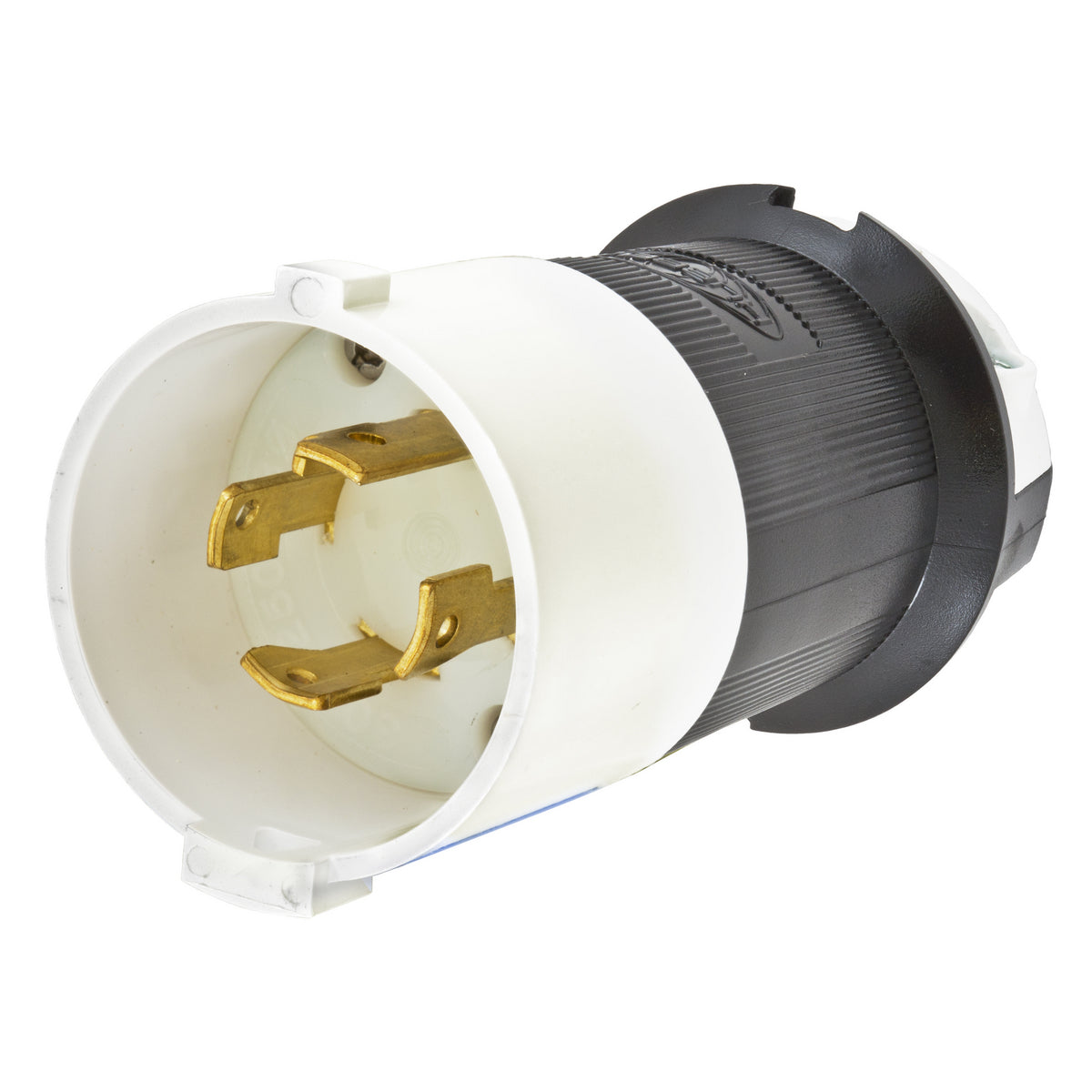

The Hubbell HBL2721S is a three-phase grounding male standard cord mount locking plug designed for reliable power connection in dry locations. This product operates at 250 VAC and can handle up to 30 Amps. Its design includes three poles and four wires, making it suitable for various electrical tasks.
- Ribbed nylon housing for secure grip and resistance to impact and chemicals
- Superior cord grip design that safeguards terminations from excess strain
- Integral dust shield to protect wiring chamber from contaminants
Product Highlights
This locking plug offers durability and high performance, making it ideal for indoor applications in the electrical sector.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358523478
Technical Specifications
-
Amperage Rating: 30 A
-
Application: Dry Locations, Power Connection and Indoor Applications
-
Color: Black/White
-
Cord Diameter: 0.35 to 1.15 inches
-
Dimensions: 2.33 x 2.33 x 4.21 inches
-
Enclosure: IP20
-
Horsepower: 3 hp
-
Manufacturer Part Number: HBL2721S
-
Material: Composite
-
NEMA Rating: L15-30P
-
Number of Poles: 3
-
Number of Wires: 4
-
Standards/Approvals: RoHS Compliant, UL 498, CSA C22.2 No. 42/0.6, UL94HB Flammability Rating, Federal Specification W-C-596
-
Temperature Rating: -40 to 75 degrees Celsius
-
Terminal Type: Screw
-
Type: 3-Phase Grounding Male Standard Cord Mount
-
Voltage Rating: 250 VAC
