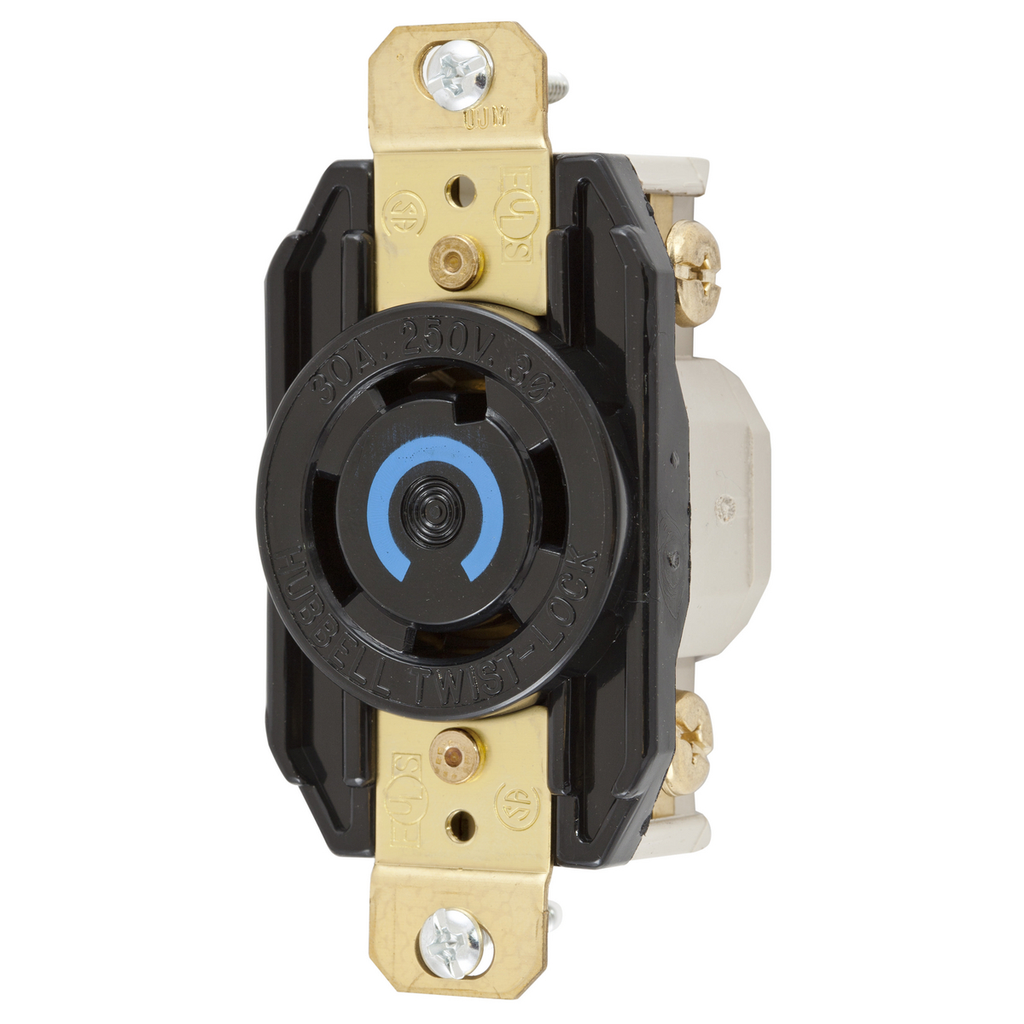

Hubbell HBL2720 30A 3Ph 250V AC Twist-Lock Black Single Flush Receptacle

Product Description

The Hubbell HBL2720 is a twist-lock receptacle designed for reliable power distribution. This product operates at thirty amps and is rated for three-phase, two hundred fifty volts alternating current. With a three-pole, four-wire grounding system, it ensures safe and efficient electrical connections. Ideal for heavy-duty industrial applications, this receptacle is built with screw terminals for secure wiring.

• Designed for three-phase power applications
• Includes wire restraint recess to secure connections
• Manufactured with thermoplastic material

Product Highlights

Durable construction suitable for industrial environments. Features a robust mounting system for added reliability.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Current Rating: 30 Amp
• Voltage Rating: 250 Volt
• Wattage: 7500 Watt
• Amperage Rating: 30 Amp
• Material: Thermoplastic

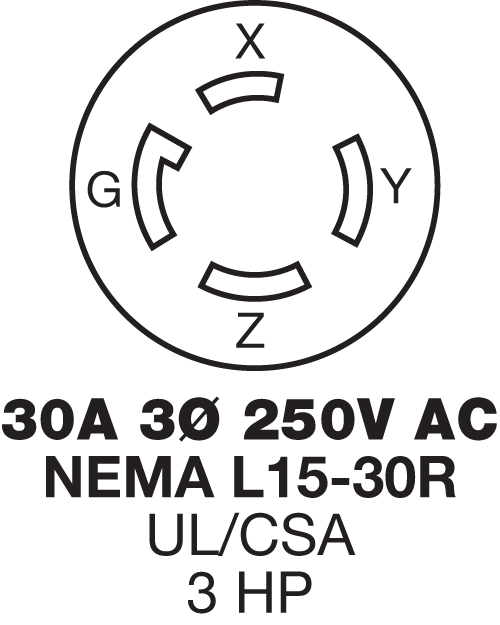

• NEMA Rating: L15-30R
• Number of Poles: 3 Pole
• Number of Wires: 4-Wire Grounding
• Operating Temperature: -40 degrees C
