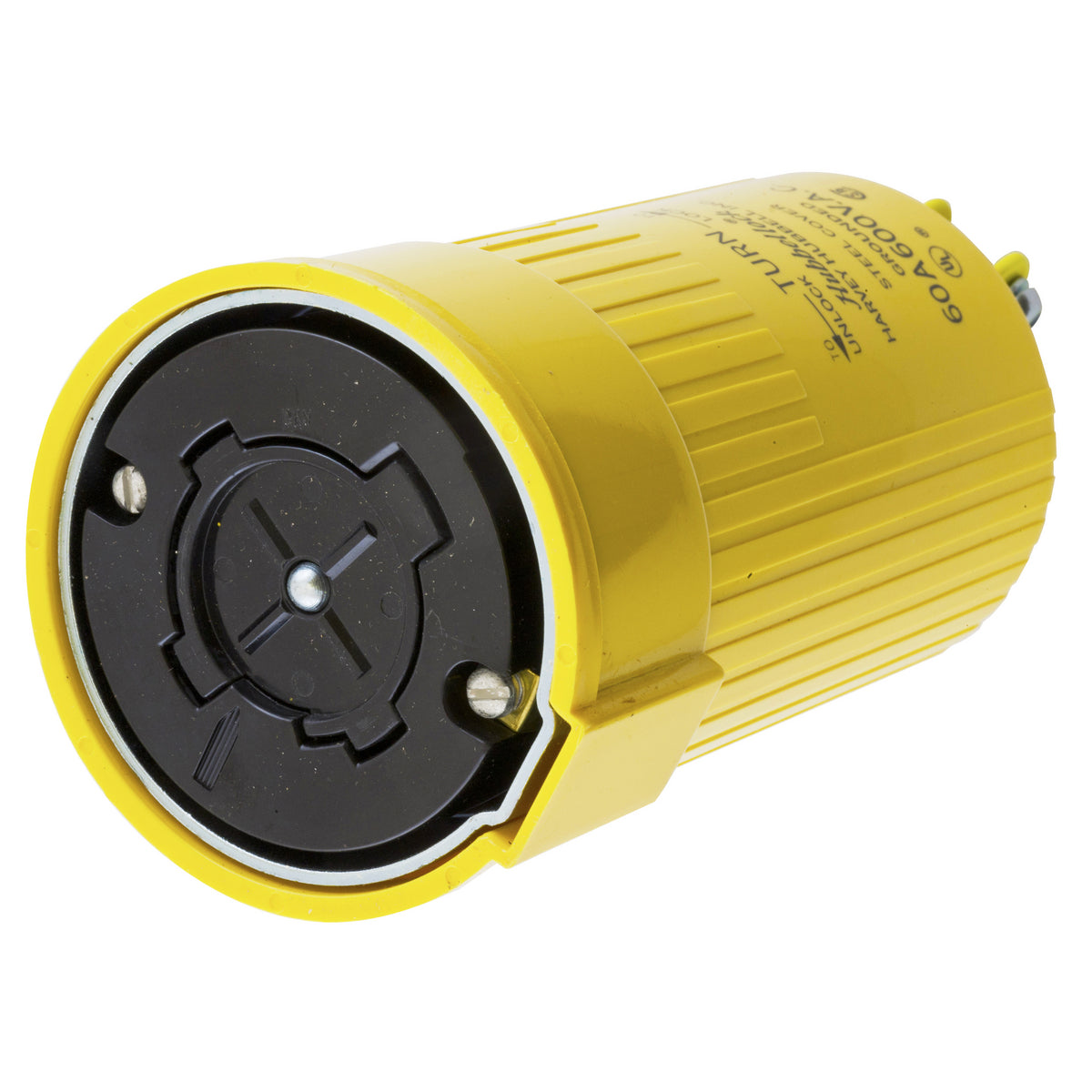

Hubbell HBL26418 HUB 4W CONN. 60A 600V

Product Description

The Hubbell HBL26418 is a heavy-duty isolated grounding female connector designed for indoor applications. This product features a voltage rating of six hundred volts alternating current and is rated for sixty amperes. It has three poles and four wires, ensuring reliable performance in various electrical setups. The connector is constructed with a steel material and is suitable for cords with diameters ranging from zero point ninety-two to one point forty-five inches.

• Operates at 600 VAC with a 60 A rating
• Diverse application for indoor use with IP30 enclosure
• Temperature range from -40 to 75 degrees Celsius

Product Highlights

This connector is designed to withstand harsh conditions while ensuring safety and reliability. Its spring-loaded safety shutter minimizes arcing during mating and unmating, thus promoting safe operation.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: HBL26418

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 600 VAC
• Cord Diameter: 0.92 to 1.45 inches
• Dimensions: 3.19 x 1.09 x 5.44 inches
• Material: Steel
• Number of Poles: 3
• Number of Wires: 4
• Temperature Rating: -40 to 75 degrees Celsius
• Application: Indoor Applications
• Enclosure: IP30
• Standards/Approvals: UL 498 | CSA C22.2 No. 42
