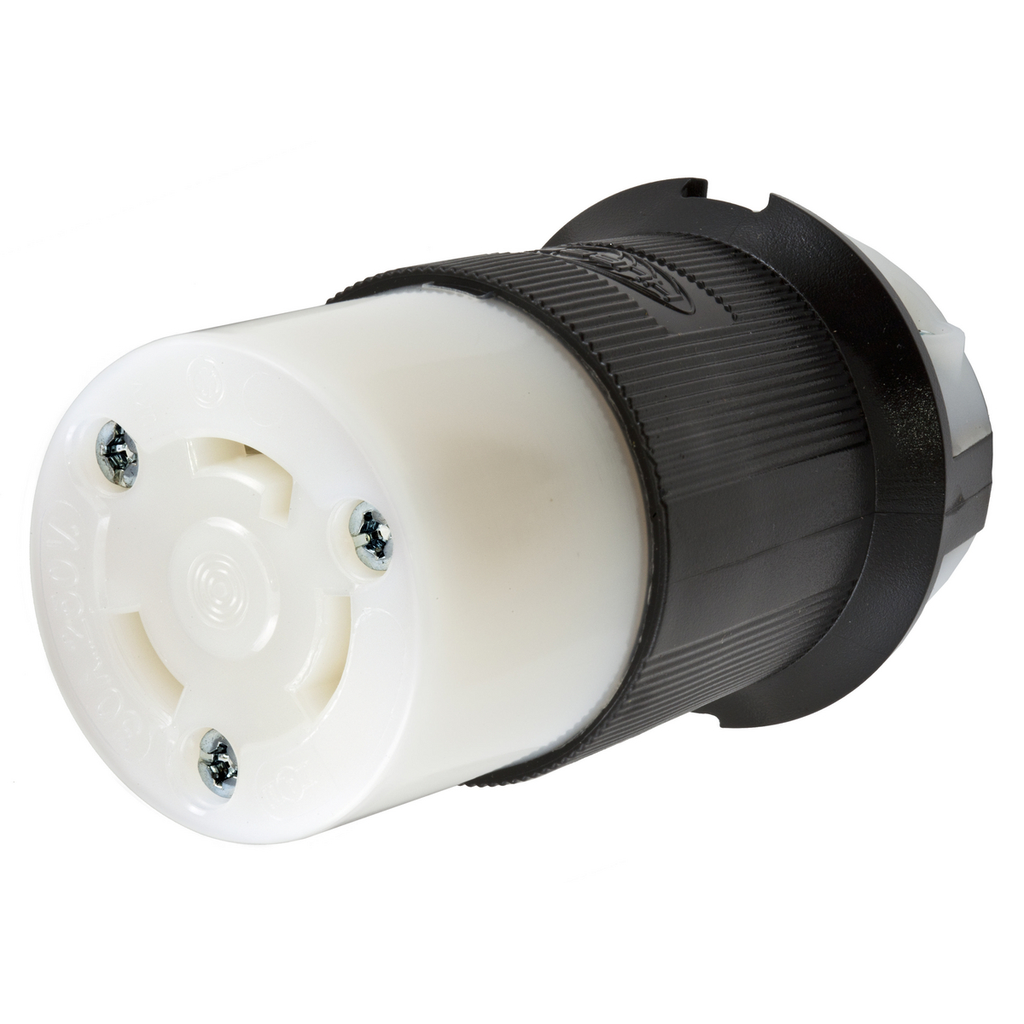

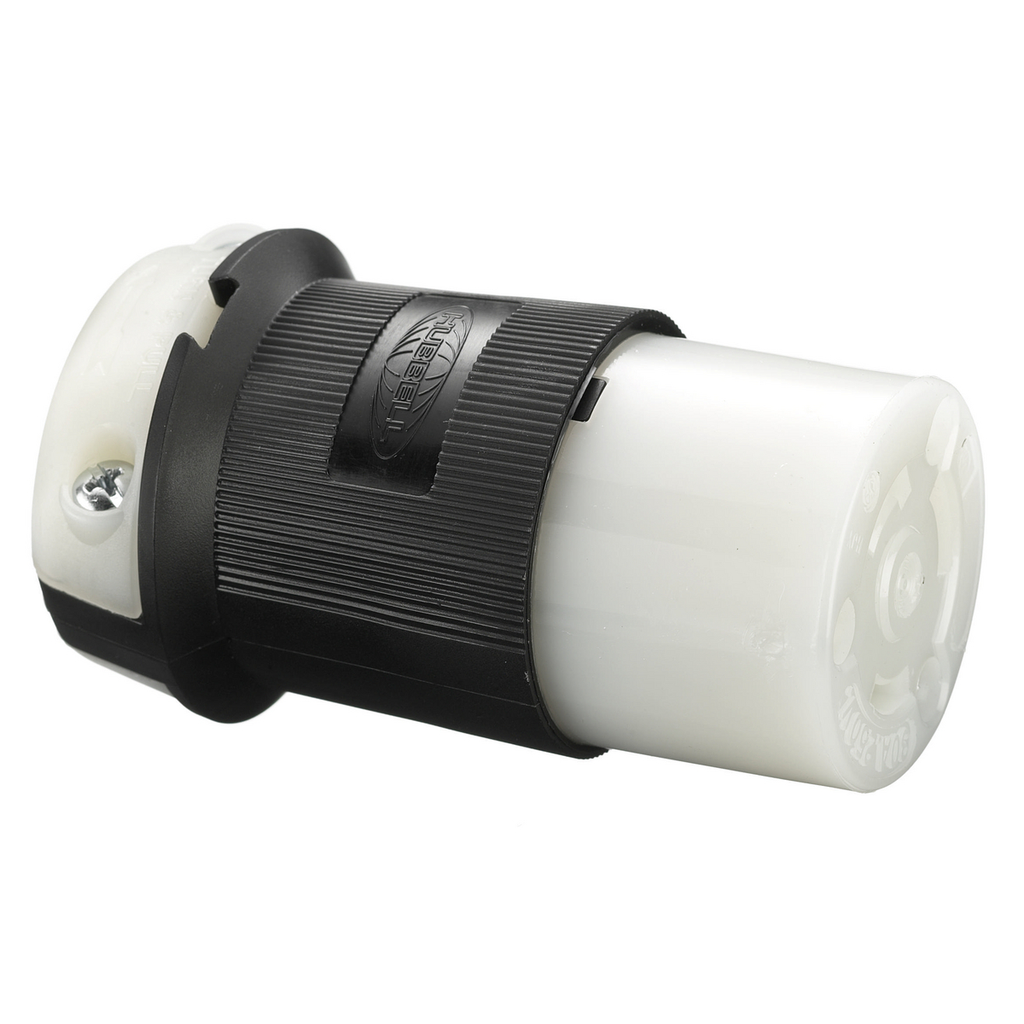

Hubbell HBL2623 30A 250V Twist-Lock INSULGRIP Black Nylon Connector Body

Product Description

The Hubbell HBL2623 is a 30 amp, 250 volt twist-lock connector body. This industrial female connector meets NEMA L6-30R specifications. It features a screw terminal design for easy installation and is constructed with black and white nylon for durability.

• Current rating: 30 amp
• Voltage rating: 250 volt
• 3-wire grounding with 2-pole configuration

Product Highlights

Designed for heavy-duty industrial applications, this connector provides reliable connections. Its superior cord grip design prevents strain on terminations, while the integral dust shield protects the wiring chamber.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• GTiN: 00783585038865

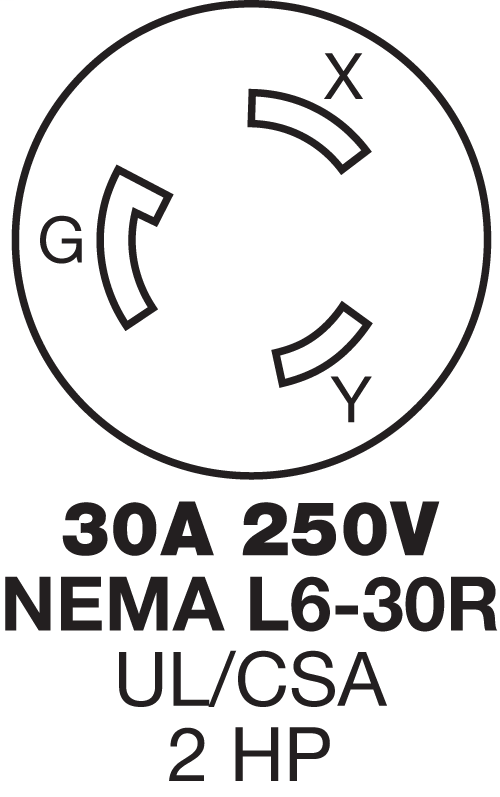

• NEMA Rating: L6-30R
• Material: Composite
• Wire Size: 16-8 AWG
• Operating Temperature: -40 degrees C
• Dimensions: 2.26 inches (length) x 2.5 inches (width) x 3.86 inches (height)
• Weight: 0.25 lb
• Environmental Conditions: Indoor dry unless protected
