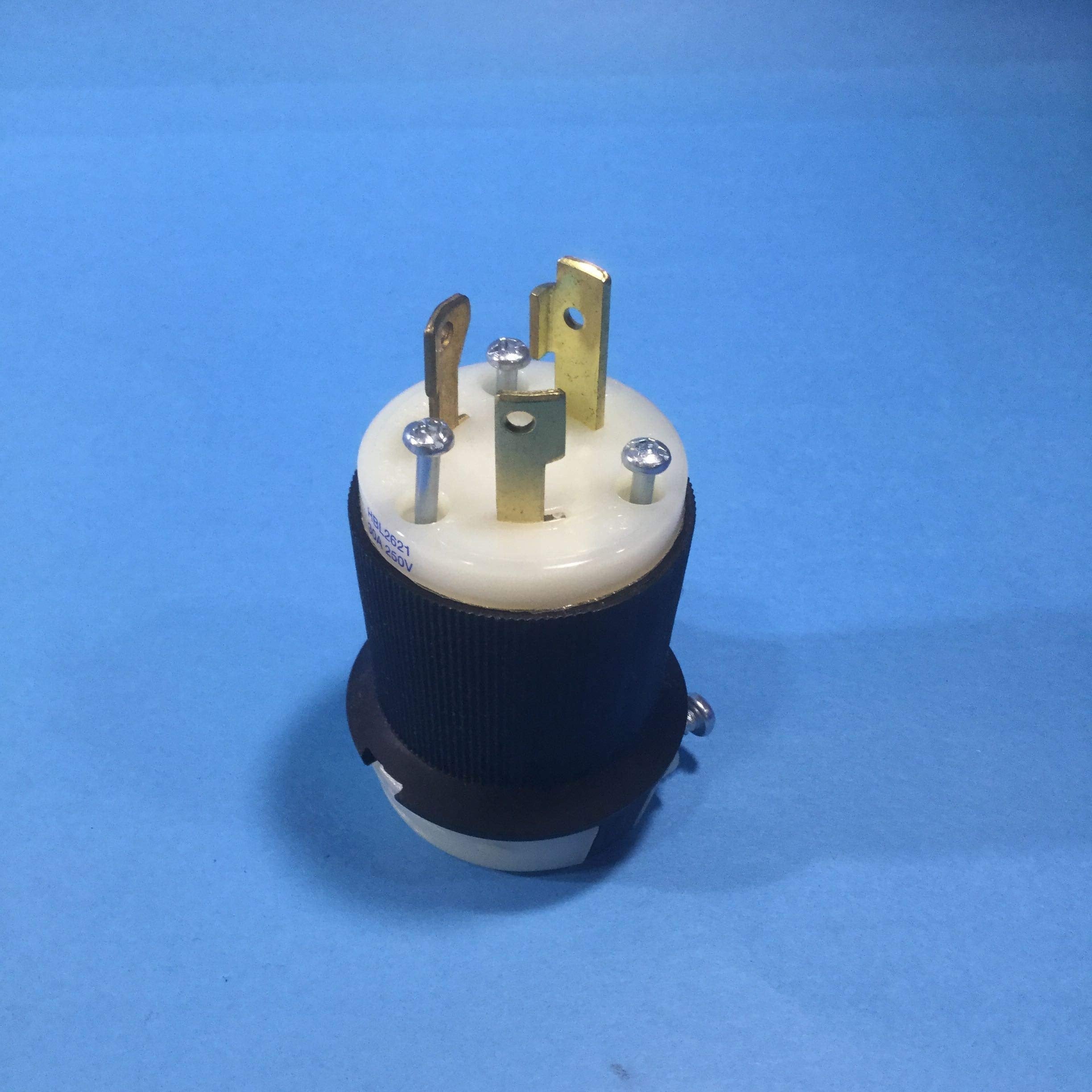

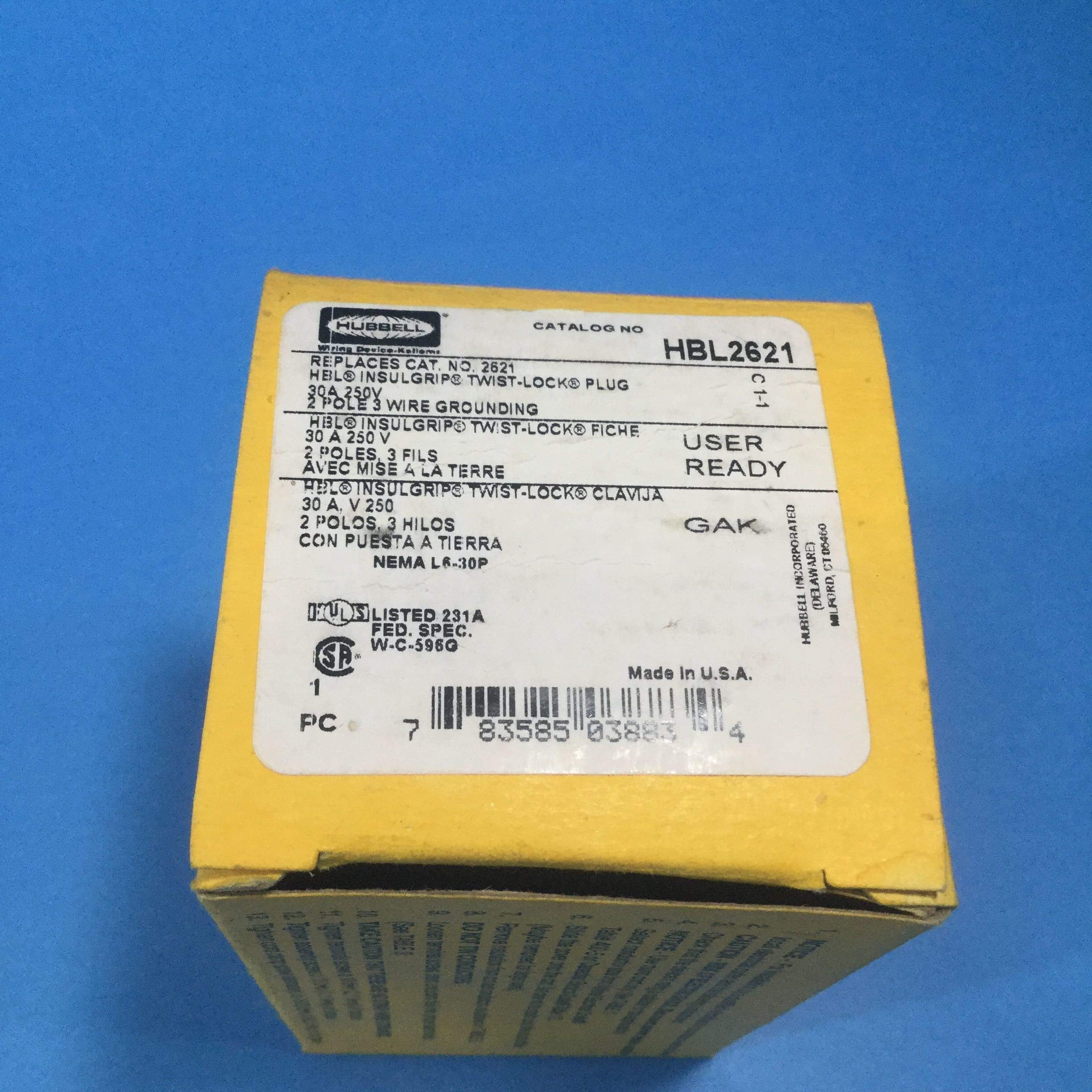

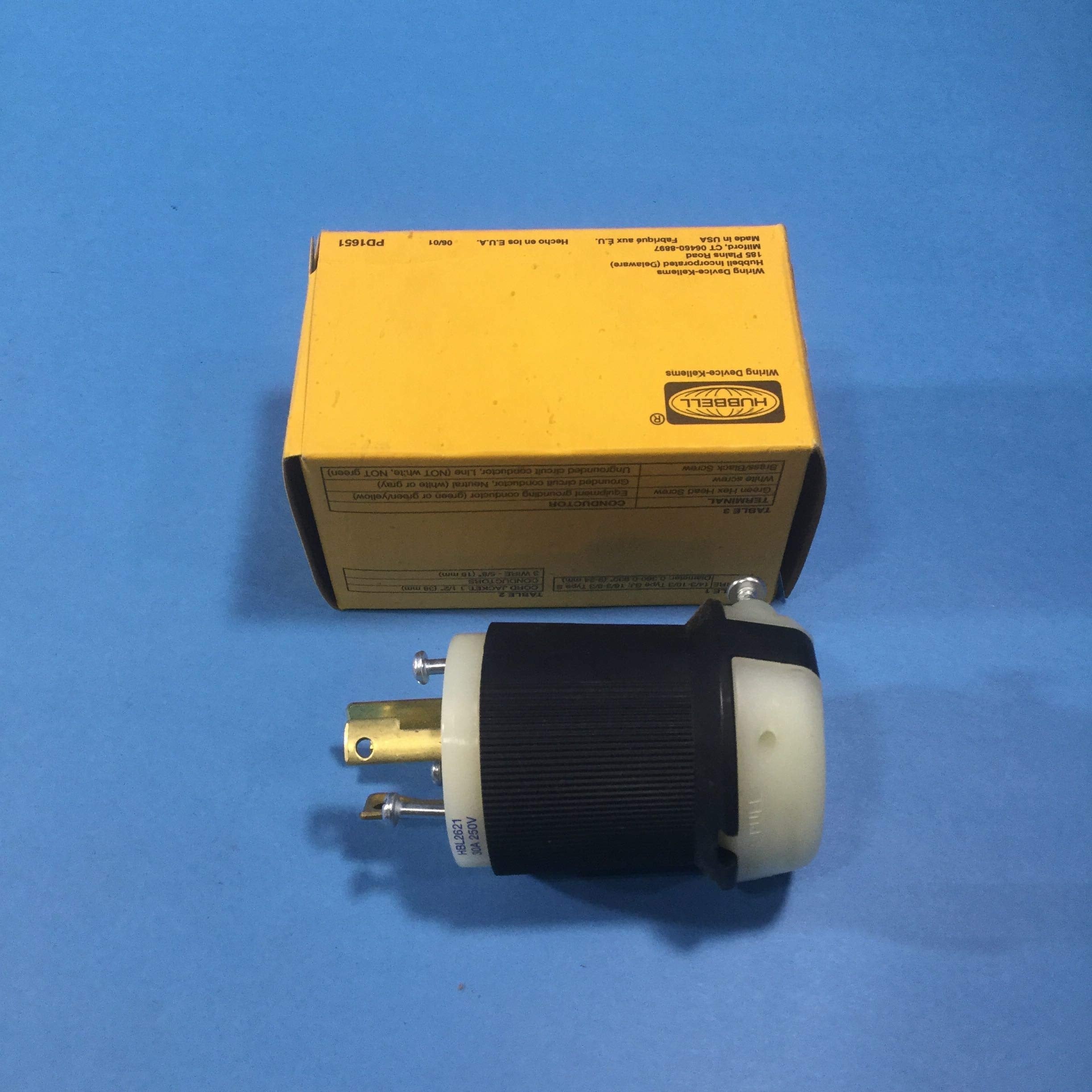

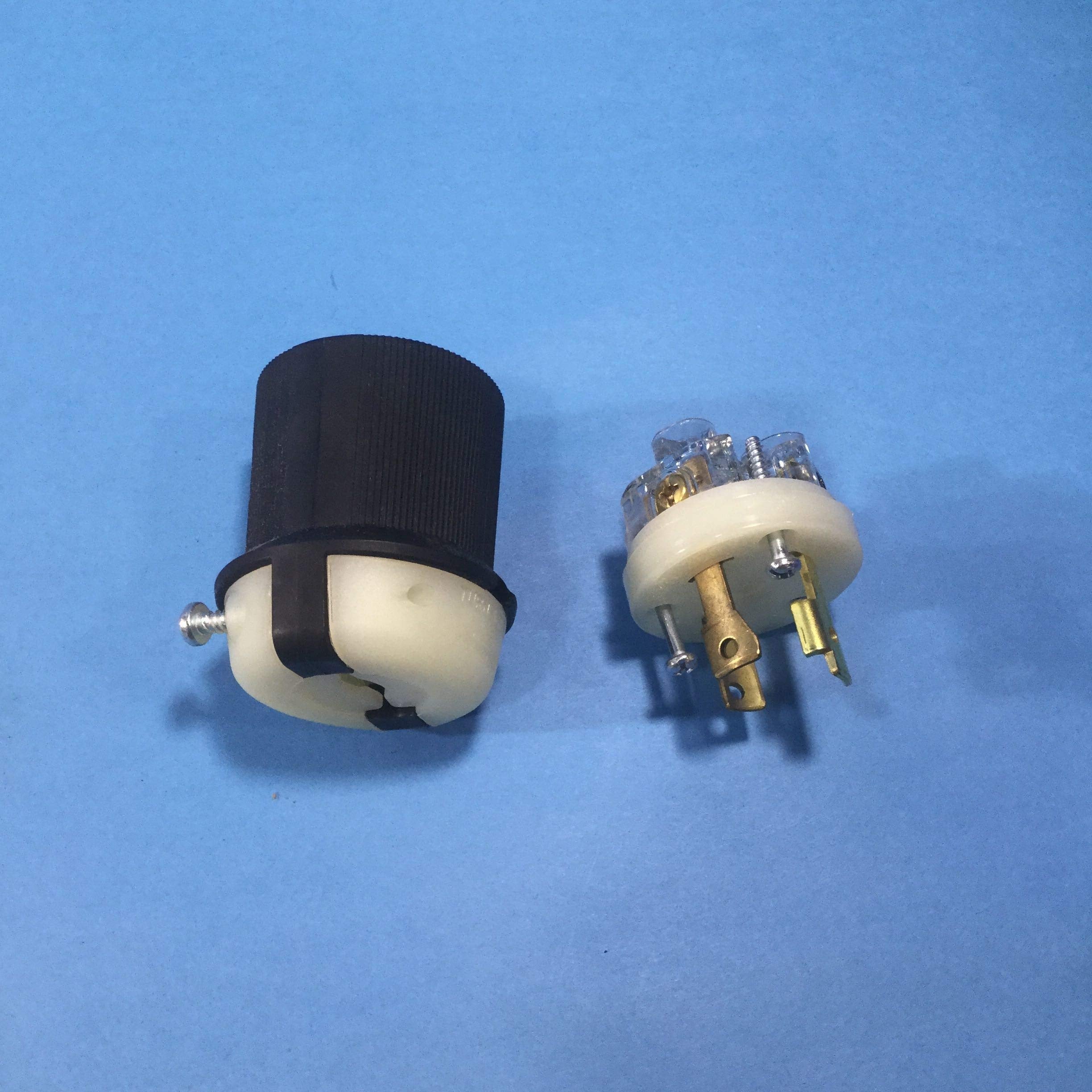

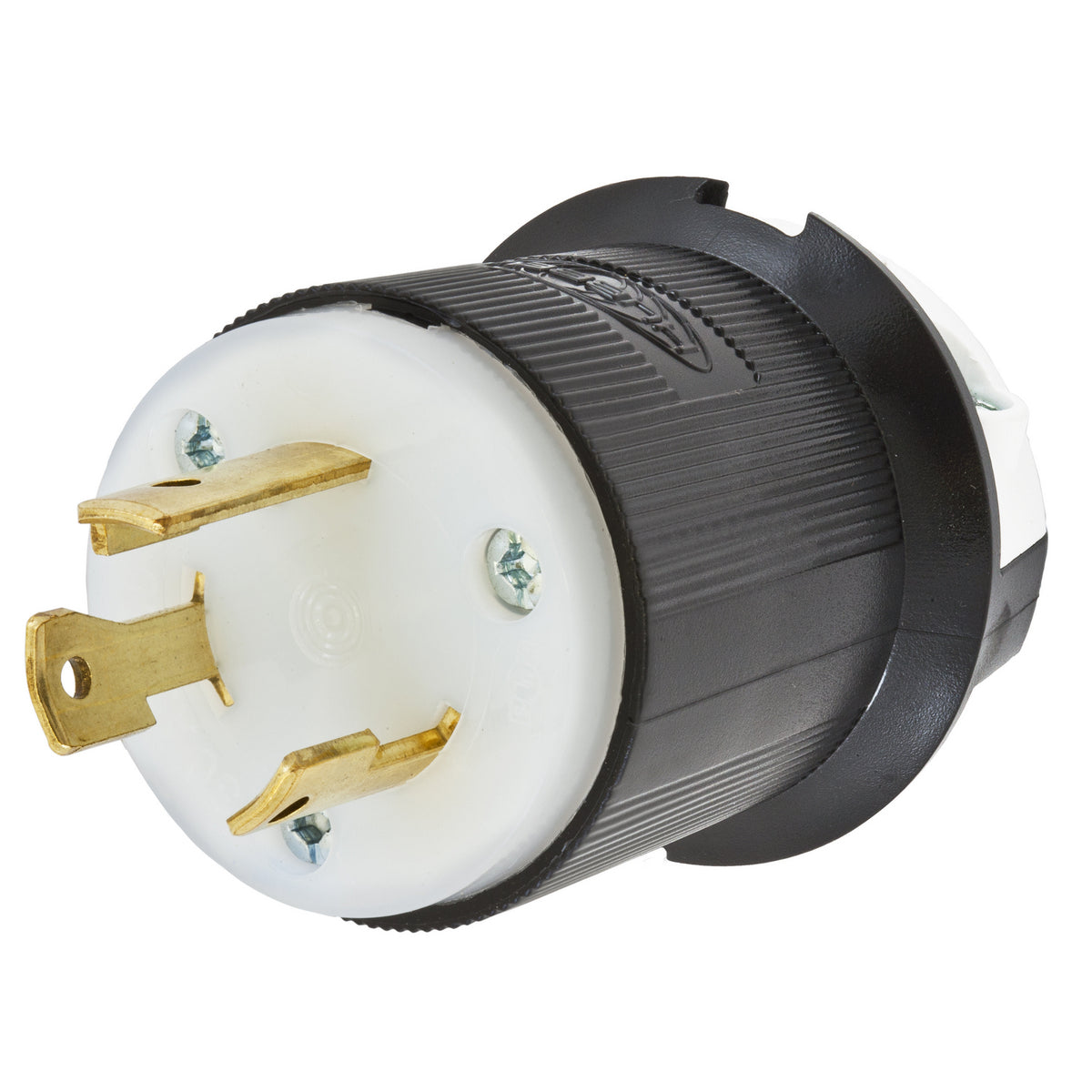

Hubbell HBL2621 Twist Lock Plug Nema L6-30 250V 30A

Product Description

The HUBBELL HBL2621 is a NEMA L6-30 male twist lock plug rated for 250 volts and 30 amps in a 2-pole, 3-wire single-phase configuration. Built with black and white nylon construction, this plug is designed to provide a secure, twist-locking electrical connection in demanding trade environments. The Insulgrip body design supports cord diameters from 0.36 inches to 0.93 inches, accommodating a wide range of cable gauges. Electricians rely on this plug for branch circuit terminations where a positive locking connection is required to prevent accidental disconnection under load.

The HBL2621 is suited for commercial and industrial electrical installations where NEMA L6-30 receptacles are specified. Typical applications include generator connections, portable power distribution equipment, HVAC equipment hookups, and high-draw single-phase loads operating at 250 volts. The twist lock design makes it appropriate for environments where vibration or movement could cause a straight-blade plug to disengage. It is installed by licensed electricians working on branch circuits requiring a 30-amp, 250-volt locking termination.

Key Features

• NEMA L6-30 configuration: 250V, 30A, 2-pole, 3-wire single-phase
• Twist lock design prevents accidental disconnection under load
• Insulgrip nylon body accommodates cord diameters from 0.36 to 0.93 inches
• Black and white nylon construction for durability in commercial and industrial use
• UL and CSA listed for code-compliant installations

Compatibility

Designed as an OEM-style replacement or new-installation male plug for circuits and receptacles wired to the NEMA L6-30 standard in commercial and industrial electrical systems.

Installation Notes

Installation of this plug must be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before opening any enclosure or terminating conductors. Verify that the cord diameter falls within the 0.36 to 0.93 inch range before securing the cord clamp. Do not exceed the 30-amp or 250-volt ratings of this device.
