Product Description

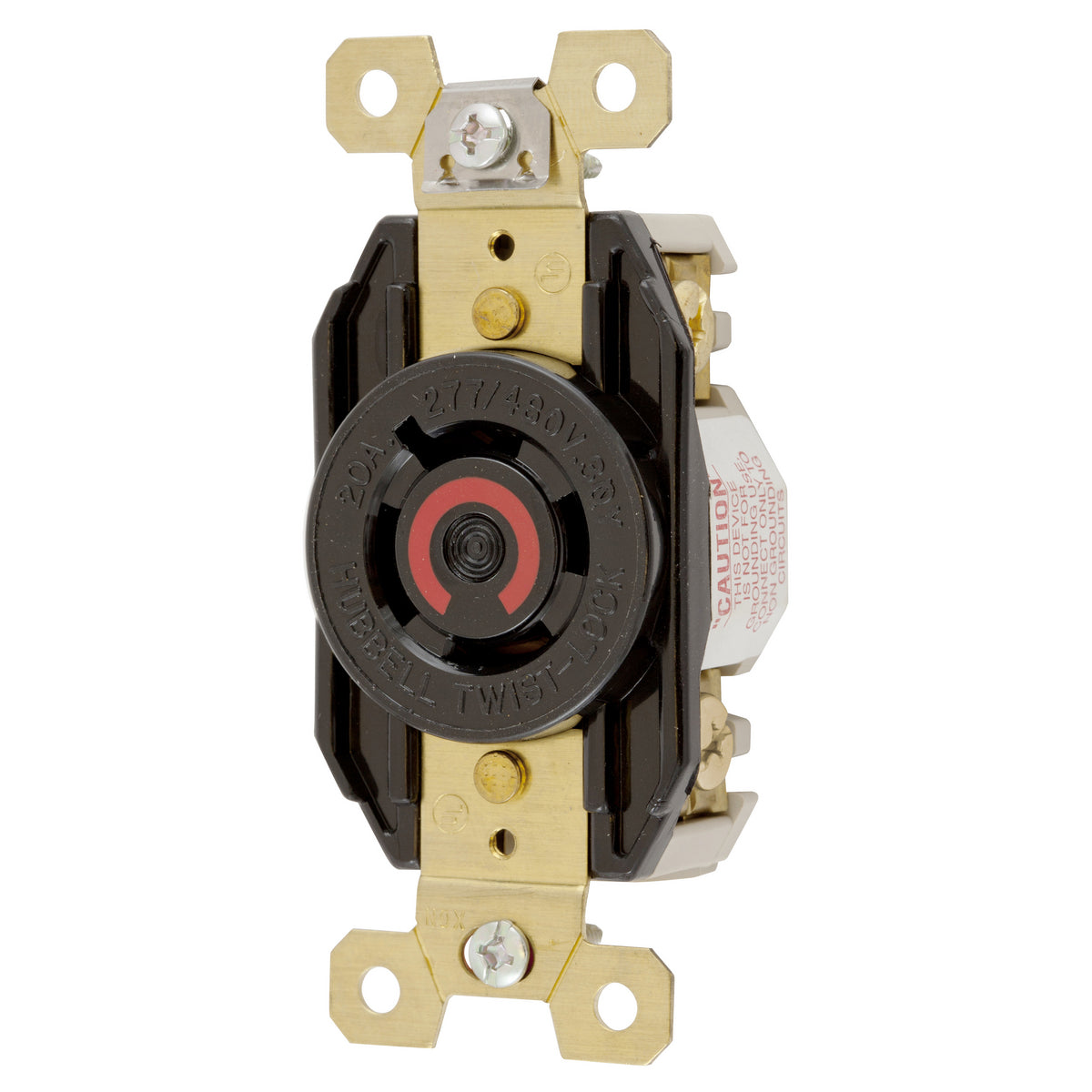

The Hubbell HBL2450 is a Twist-Lock Locking Receptacle with a voltage rating of 277/480 VAC and an amperage rating of 20 A. It is designed for 3-phase heavy-duty applications and features a flush non-grounding standard single screw mount.
- Compatible with L19-20R NEMA rating.
- Constructed with a durable nylon material.
- Suitable for use in dry locations and indoor applications.
Product Highlights
This receptacle provides reliable connections in a variety of industrial settings and is resistant to corrosion.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: HBL2450
Technical Specifications
-
Amperage Rating: 20 A
-
Voltage Rating: 277/480 VAC
-
Horsepower: 5 hp
-
Number of Poles: 4
-
Number of Wires: 4
-
Temperature Rating: -40 to 75 deg C
-
NEMA Rating: L19-20R
-
Dimensions: 3.28 x 1.7 x 1.24 in
-
Material: Nylon
-
Grade: Industrial
-
Standards/Approvals: RoHS Compliant, UL 498, CSA C22.2 No. 42/0.17, UL94 V-2 Flammability Rating, Federal Specification W-C-596, NEMA WD1/WD5
