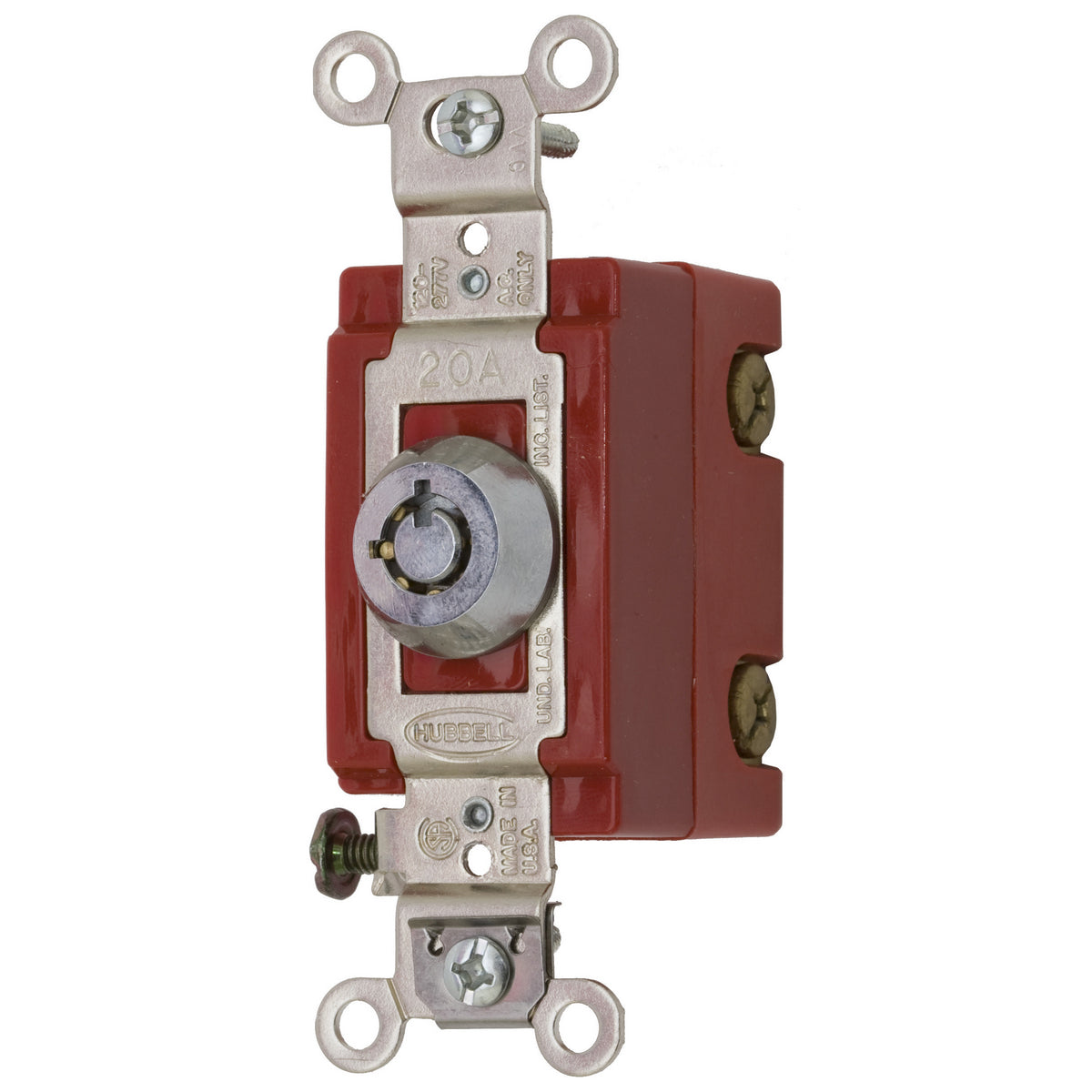

Hubbell HBL1221RKL HUB 20A 120-277V SP Barrel Key Lock

Product Description

The Hubbell HBL1221RKL is a locking switch designed for industrial applications. Rated for 20 amps and operates within a voltage range of 120 to 277 VAC. This switch features a two-position contact configuration and is built to handle inductive and resistive loads, making it suitable for various heavy-duty tasks.

• 20 amp rating for reliable performance
• Temperature range from -40 to 75 degrees Celsius
• Cylindrical key actuator enhances security

Product Highlights

This switch is ideal for environments that require secure operation and durability. It ensures the lock circuits can be toggled on or off easily, making it versatile for numerous applications.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: HBL1221RKL

Technical Specifications

• Actuator: Cylindrical Key
• Amperage Rating: 20 A
• Application: Industrial Applications
• Connection: Screw Terminal
• Contact Configuration: 2-Position
• Dimensions: 4.06 x 1.25 x 2.02 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Load: Inductive/Resistive
• Lock Type: Cylindrical
• Material: Composite
• Number of Poles: 1
• Power Rating: 5540 W
• Voltage Rating: 120 to 277 VAC
• Standards/Approvals: CSA Certified, UL 20, Federal Specification W-S-896, UL94 V-2 Flammability Rating
