Product Description

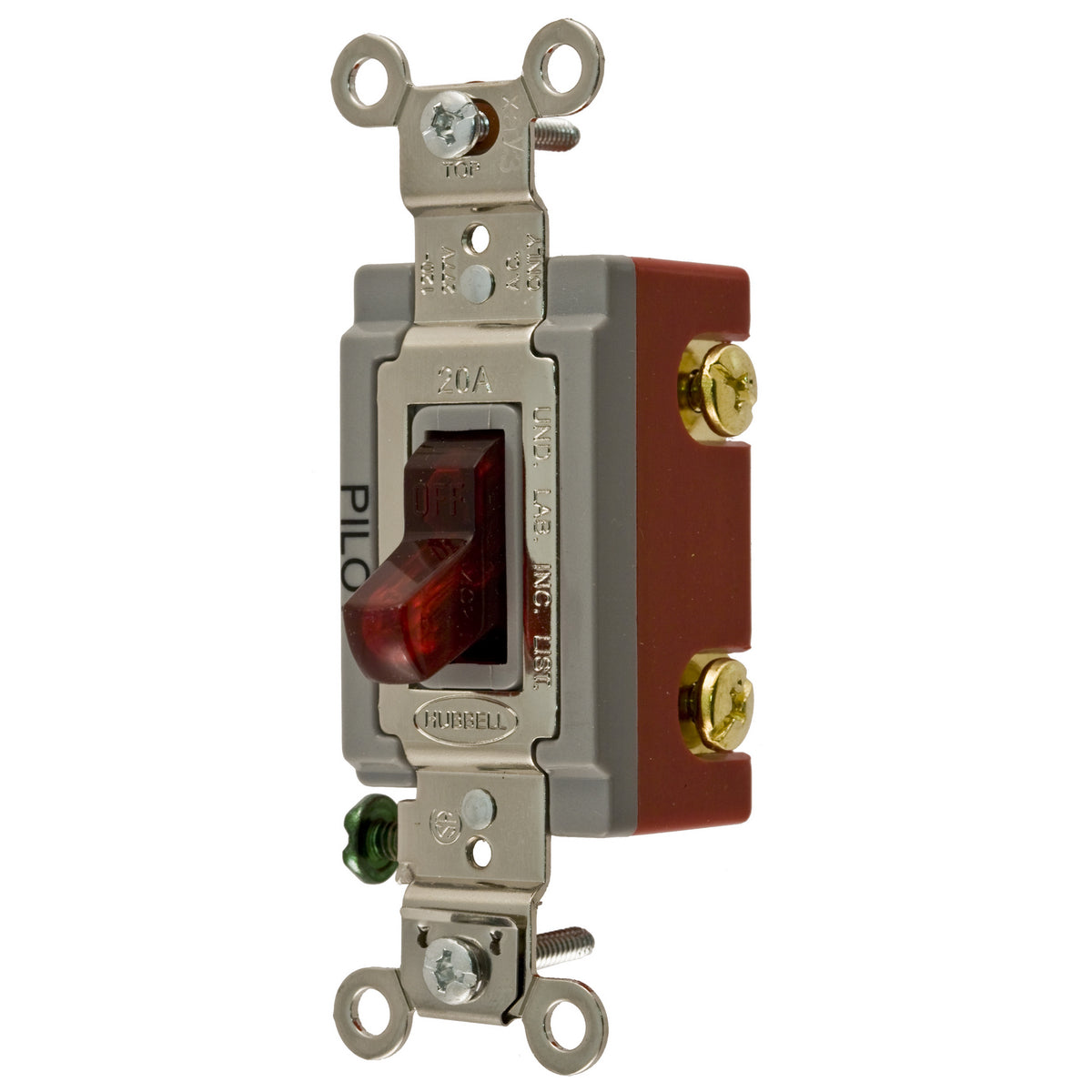

The Hubbell HBL1221PL is an extra heavy duty toggle switch designed for various applications.
- Rated for up to 20 A and 5540 W, suitable for 120 to 277 VAC.
- Constructed with a thermoset material for durability.
- Features a toggle actuator and threaded mounting for easy installation.
Product Highlights
This toggle switch is ideal for industrial environments and can handle harsh conditions.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358543146
Technical Specifications
-
Actuator: Toggle
-
Amperage Rating: 20 A
-
Application: Industrial Applications and Indoor Dry Environment
-
Color: Red
-
Contact Configuration: 2-Position
-
Dimensions: 4.06 inches x 1.31 inches x 1.86 inches
-
Environmental Conditions: -40 to 75 deg C
-
Manufacturer Part Number: HBL1221PL
-
Material: Thermoset
-
Mounting: Threaded
-
Number of Poles: 1
-
Operating Cycles: 50000 cycles
-
Power Rating: 5540 W
-
Standards/Approvals: CSA Certified, UL94 V-2 Flammability Rating, UL 20, Federal Specification W-S-896
-
Terminal Type: Back/Side Wire
-
Voltage Rating: 120 to 277 VAC
