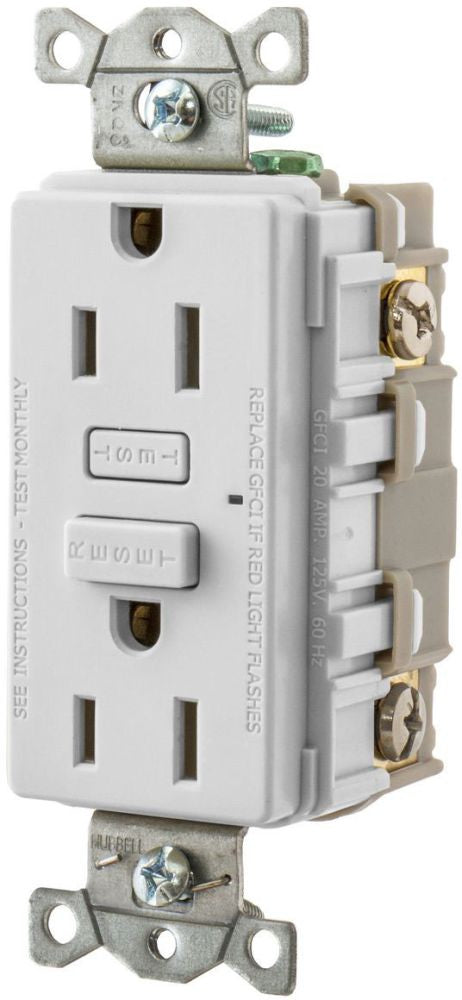

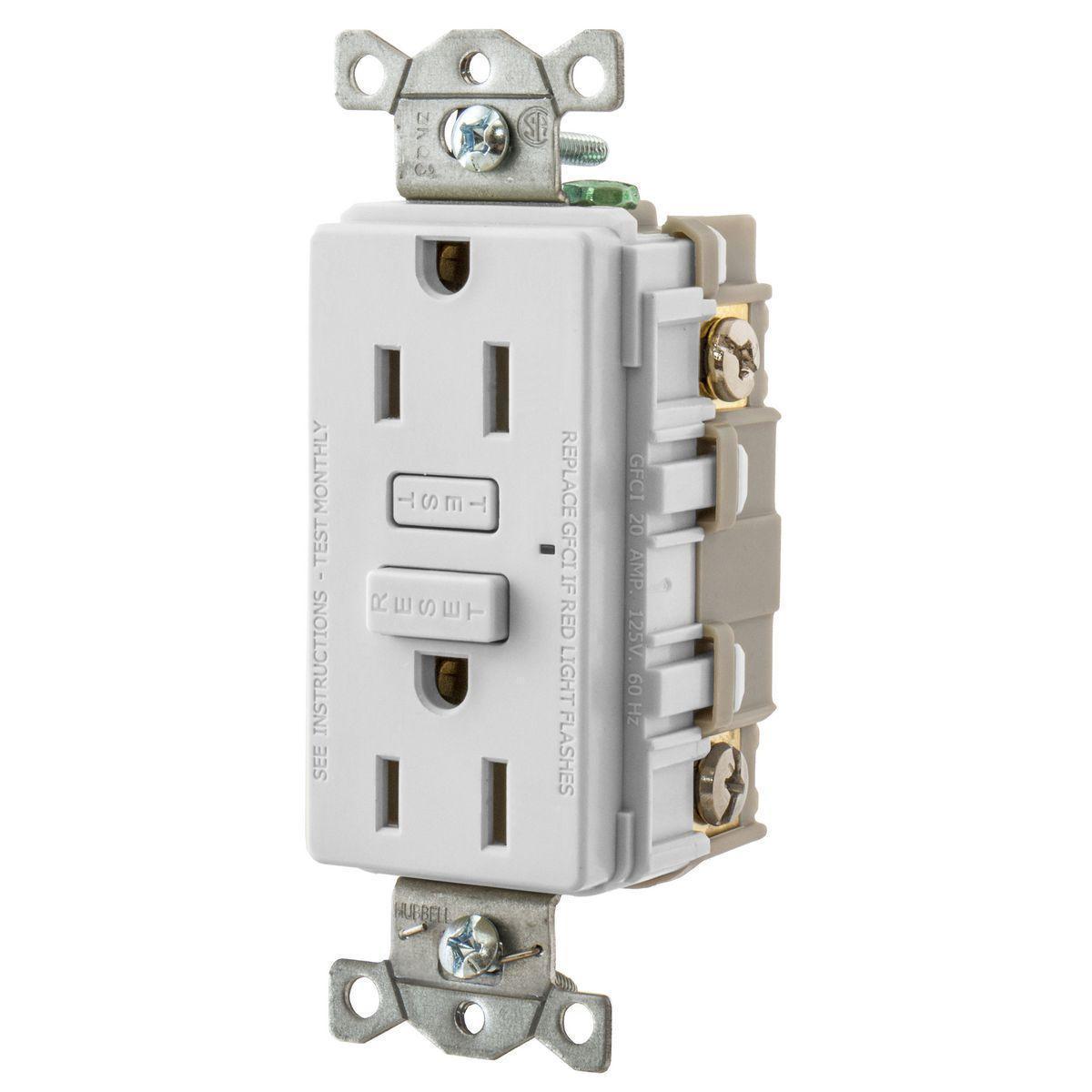

Hubbell GF15W Pro GFR 15A

Product Description

The HUBBELL GF15W is a 15A GFCI receptacle. Featuring patented CIRCUITPRO self-test technology, it disconnects power if critical components are damaged and GFCI protection is lost. Designed with a smooth profile and satin finish to complement any decor. Ideal for kitchens, bathrooms, garages, and laundry areas.

• Patented CIRCUITPRO self-test technology disconnects power if GFCI protection is lost
• High impact and ultraviolet-resistant construction provides resilience in harsh environments
• Clear indication if unit can no longer provide protection (LED red flashes) and will not reset

Product Highlights

The Hubbell GF15W GFCI receptacle provides reliable ground fault protection with a sleek design suitable for residential and commercial applications.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: GF15W
• Country of Origin: CHN

Technical Specifications

• Brand: HUBBELL
• MPN: GF15W
• Amperage Rating: 15 A
• Application: Kitchens, Bathrooms, Garages, Basements, Laundry Areas, Workshops, Wet or Damp Locations, Outdoor Porches and Deck Applications
• Frequency Rating: 60 Hz
• Grade: Commercial
• Horsepower: 1/2 hp
• Material: Composite/Thermoplastic
• NEMA Rating: NEMA 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Standards/Approvals: ANSI C73|UL 498/943 File No. E41978|UL94 V2 Flammability Rating|CSA C22.2 No. 42|M-012A|NEMA WD1/WD5 WD6|NOM Certified
• Temperature Rating: -30 to 150 deg F
• Terminal Type: Back Wire/Clamp/Screw;Screw
• Type: 1-Phase Duplex Grounding Heavy Duty Self-Test Standard;1-Phase Duplex Standard Screw Mount
• Voltage Rating: 125 VAC
• Catalog Number: GF15W
• Current / Amperage Rating: 15 A
• Wattage: 1875
• Connection: Terminal Screws
• Conductor Size: #14 AWG to #12 AWG
• Country of Origin: CN
• Environmental_Conditions: Indoor Dry unless Protected by Additional Means
• Mounting: Mounting Screws
• NEMA_Rating: 5-15R
• Number_Of_Poles: 2
• Number_Of_Wires: 3
• Phase: 1
• Size: Standard Product
• Standard: NEMA WD1 and WD5, UL 498 and 943
