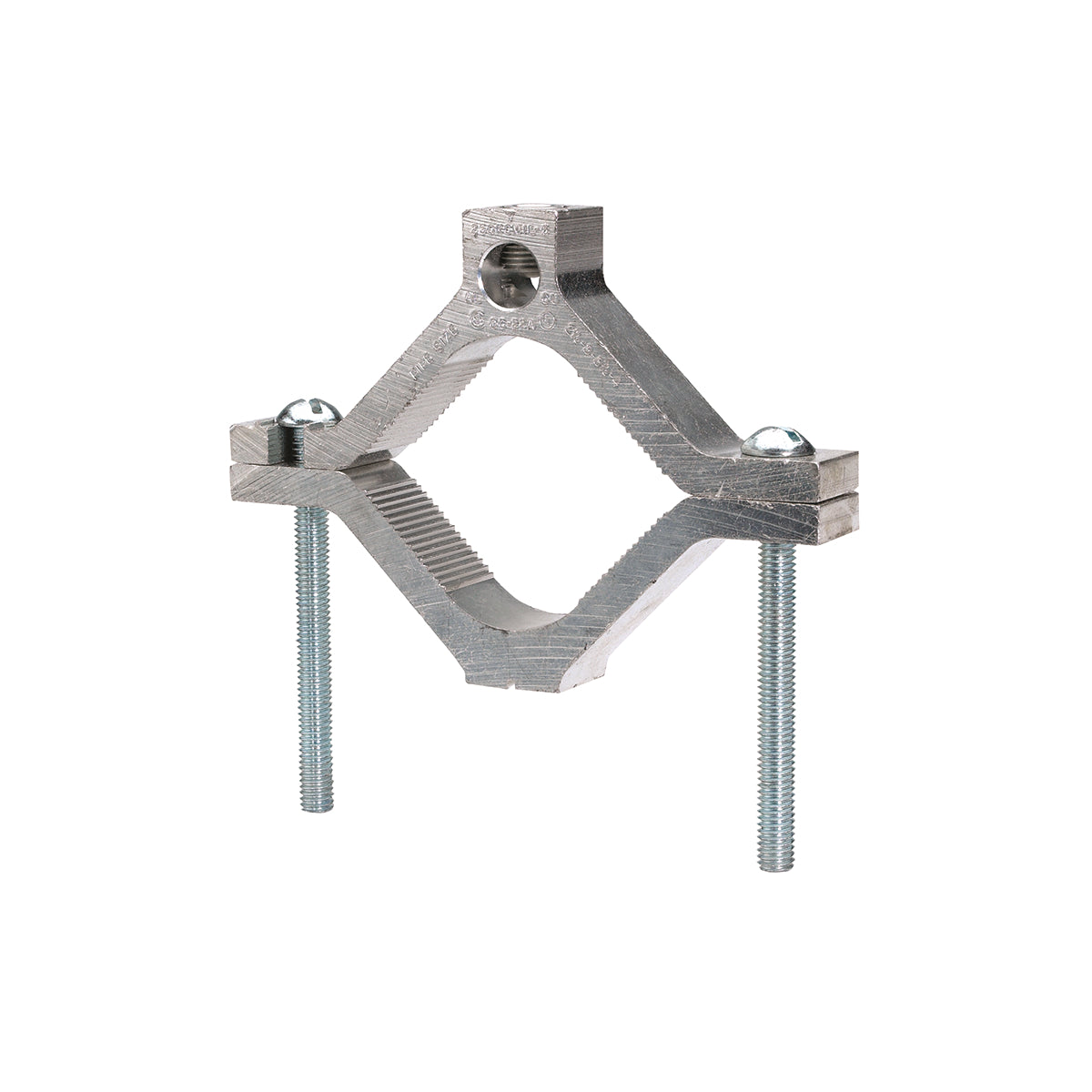

Hubbell GC18A Ground Clamp 6-250MCM

Product Description

The Hubbell GC18A Ground Clamp is designed for effective grounding and bonding in electrical installations. It handles conductors ranging from six AWG to two hundred fifty kcmil and is suitable for pipes with diameters from one and one-fourth inches to two inches.

• Dual rated for both copper and aluminum conductors
• Constructed from high-strength aluminum alloy
• UL listed for direct burial applications

Product Highlights

This clamp ensures low contact resistance and prevents corrosion, making it ideal for challenging environmental conditions.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181024001

Technical Specifications

• Application: For use with either copper or aluminum conductors to copper water pipe, galvanized pipe or steel conduit
• Conductor Size: One and one-fourth inches to two inches, six AWG to two hundred fifty kcmil
• Conductor Type: Aluminum and Copper
• Connection Type: Cable to Water Pipe
• Dimensions: Three and three-fourths inches long by thirteen-sixteenths inches wide
• Finish: Tin Coated
• Material: Aluminum Alloy
• Series: GC-A
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65 Warning
