Product Description

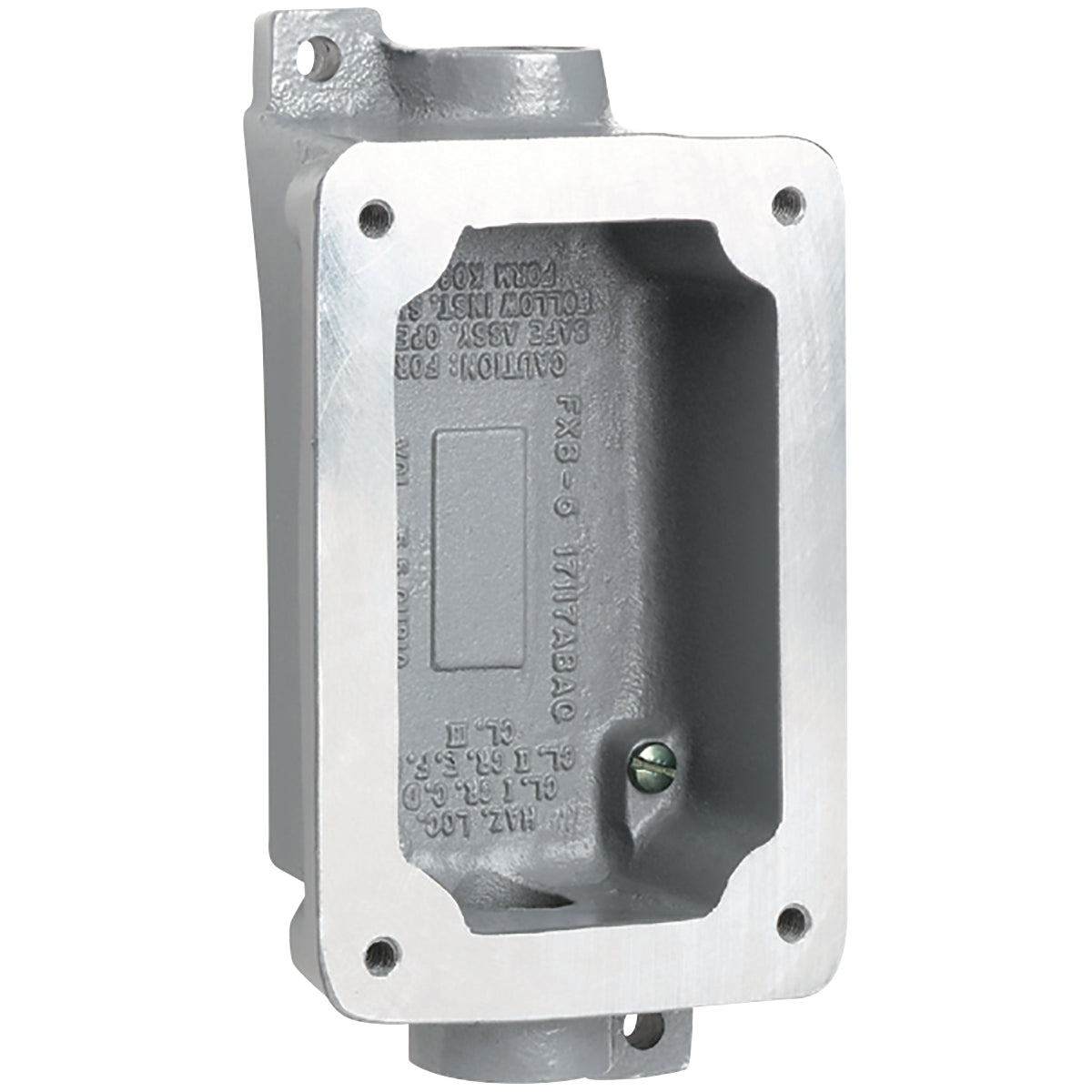

The Hubbell FXB-5 is a factory sealed feed-through splice box designed for hazardous locations. It features a one gang configuration with a three-fourth inch hub. This box is made of copper-free aluminum and has a NEMA rating of 3, 7, and 9 suitable for both indoor and outdoor environments. Its dimensions are six and thirteen-sixteenths inches in height, three and eleven-sixteenths inches in width, and one and three-fourths inches in depth.
- Use with FXCS and FXS cover sub-assemblies.
- Mounts easily on walls.
- Offers protection against dust and moisture.
Product Highlights
The FXB-5 splice box is designed for seamless integration in various control applications, including motor controls and LED indications. This box is ideal for use in class 1 division 1 and 2 hazardous areas.
Product Information
Standard Information
-
Brand: Hubbell
-
Manufacturer Part Number: FXB-5
Technical Specifications
-
Application: For use with the FXCS and FXS Series of Cover Sub-Assemblies
-
Color: Gray
-
Dimensions: Six and thirteen-sixteenths inches high, three and eleven-sixteenths inches wide, one and three-fourths inches deep
-
Enclosure: NEMA 3/7/9
-
Hub Size: Three-fourth inch
-
Material: Copper-Free Aluminum
-
Mounting Type: Wall
-
Number of Gangs: One
-
Series: FXB
-
Standards/Approvals: Class I, Div 1 and 2, Groups C, D; Class I, Zones 1 and 2, Groups IIB, IIA; Class II, Div 1 and 2, Groups E, F, G; Class III Div 1 and 2
