Hubbell FSCT1 FSCT Type Shallow Device Box 1/2 inches

Product Description

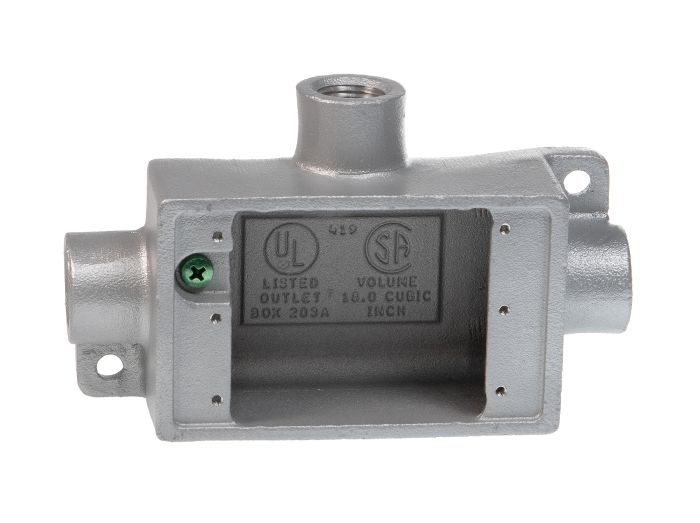

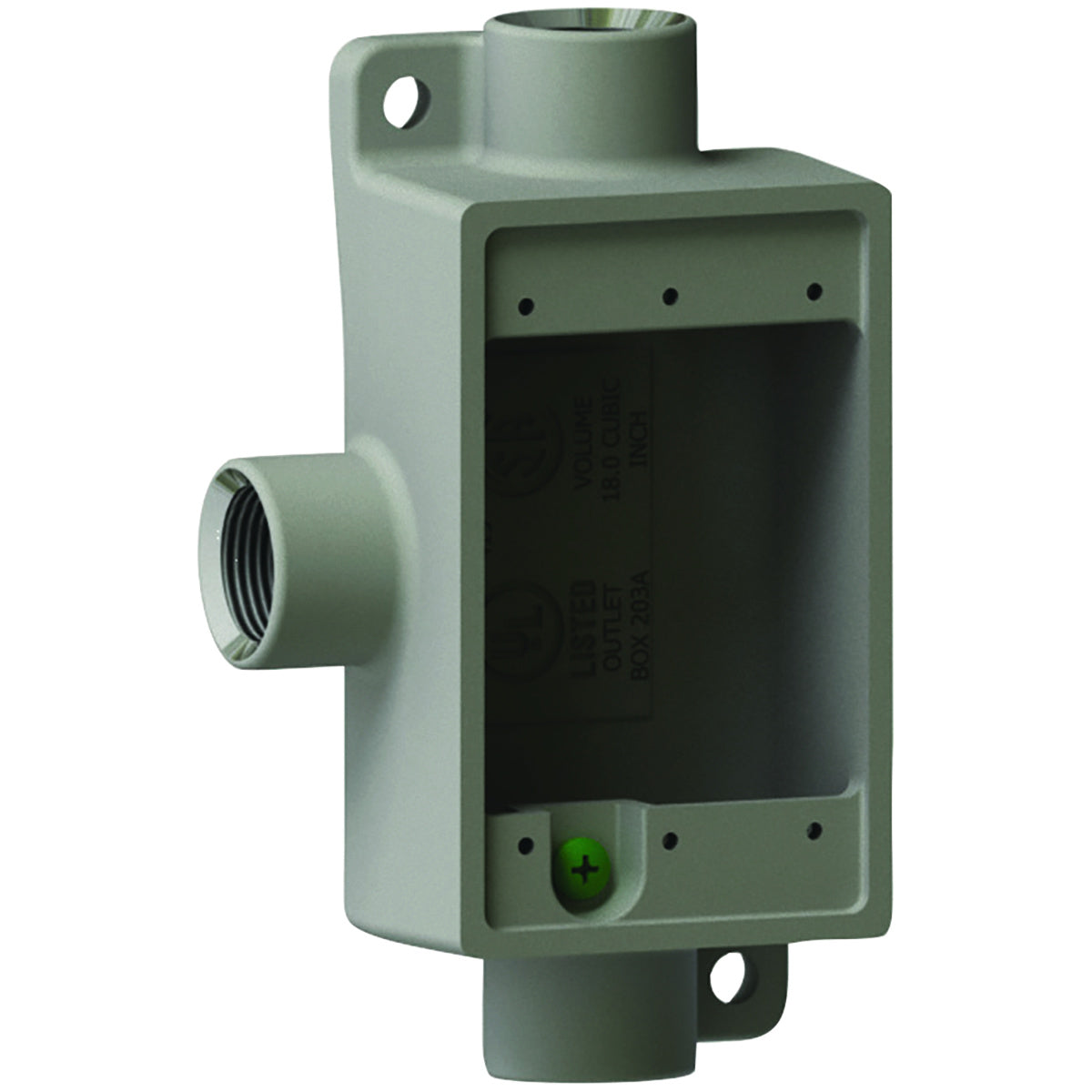

The HUBBELL FSCT1 is a 1/2" aluminum, FSCT type shallow device box. It accommodates wiring devices and provides an opening to splice, tap, or pull conductors. It also provides access to conductors for maintenance and future system changes. Suitable for use in wet locations when used with gasket covers.

• Tapered threads (NPT with integral bushings)
• Internal grounding screw
• Mounting feet are provided as standard

Product Highlights

The FSCT1 device box features tapered threads, an internal grounding screw, and mounting feet. It is suitable for wet locations and concrete use.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: FSCT1

Technical Specifications

• Application: Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
• Catalog Number: FSCT-1
• Color: Gray
• EU RoHS Indicator: Contact Manufacturer
• Finish Type: Powder Epoxy Paint
• Hub Pattern: FSCT
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Number Of Outlets: 1
• Series: F Series
• Type: Device Box
• UPC: 783936190266
• Number of Gangs: 1
• Number of Hubs: 3
• Connection Type: Threaded
• Grounding: Yes
• Composition: Aluminum
• Protection Rating: Indoor, Outdoor
• Hazardous Location: Yes
• Approvals: CSA, UL
• Product Series: FSCT
• Manufacturer Part Number: FSCT-1
• Manufacturer: Killark
• Family Series: Killark Electrical Boxes, FSCT Series
• Description: 1/2in. K ALUM SHALLOW DEV BX TYPE FSCT
• Hub Size: 1/2"
• CSA File Number: LR11852
• UL File Number: E3397
