Hubbell FS-1 FS Series Dead End Cast Device Box, Copper Free Aluminum, 18 cu-in Capacity, 1 Gangs

Product Description

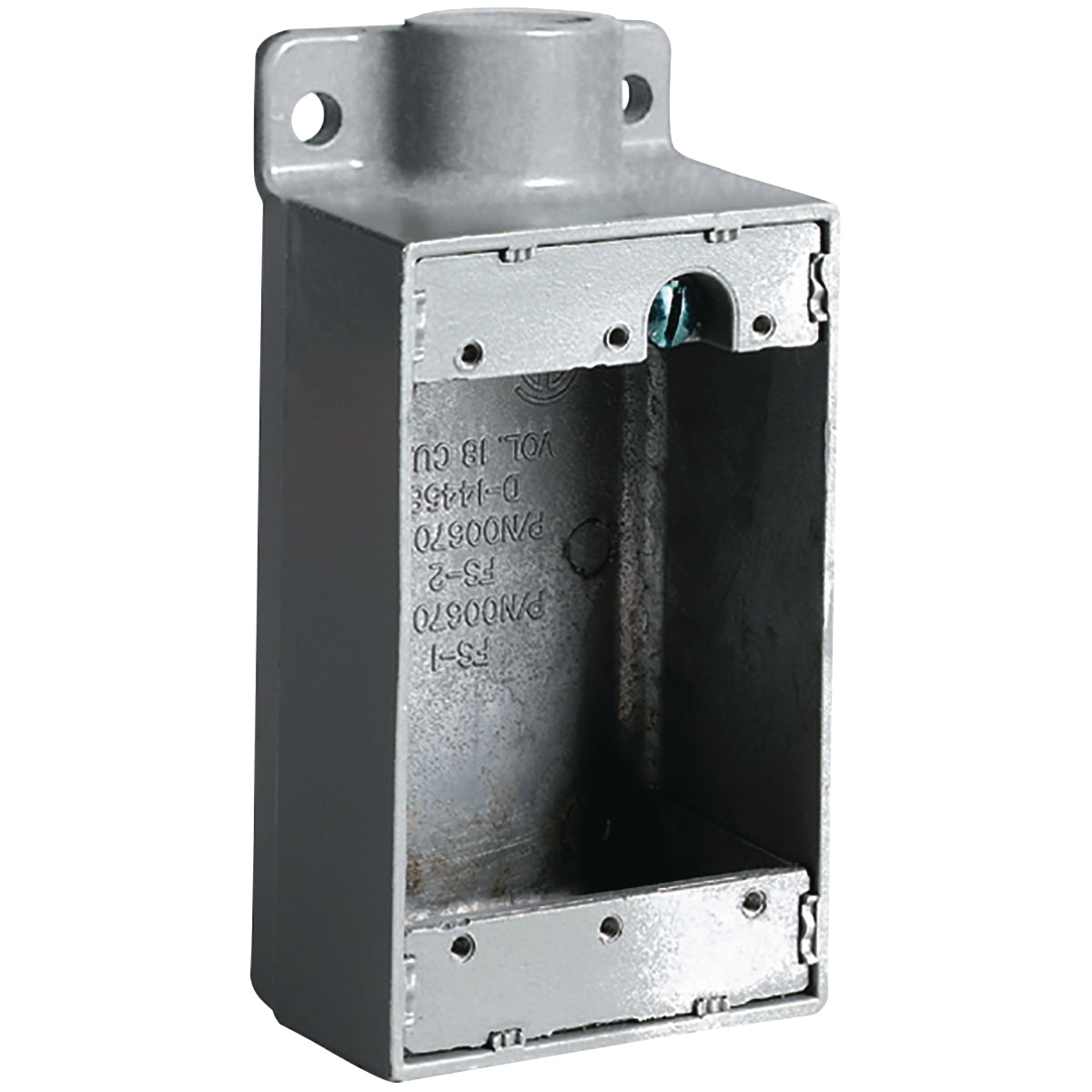

The Hubbell FS-1 is a dead end cast device box made of copper free aluminum with a capacity of eighteen cubic inches. It is designed for one gang and includes one outlet. The dimensions are five and one-half inches high by two and seven-eighths inches wide by two inches deep. This device box is ideal for providing access to conductors for maintenance and future system changes.

• Constructed from copper free aluminum
• Accommodates wiring devices and provides openings to splice or tap conductors
• Suitable for wet locations when used with gasket covers

Product Highlights

This device box offers a tapered threaded hub and an internal grounding screw, making it reliable for electrical installations.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: FS-1

Technical Specifications

• Application: For providing access to conductors for maintenance and future system changes
• Color: Gray
• Dimensions: 5-1/2 in H x 2-7/8 in W x 2 in D
• Enclosure: NEMA FB-1
• Finish: Powder Coated
• Hub Size: 1/2 in
• Hub Style: Tapered Threaded
• Material: Copper Free Aluminum
• Mounting Type: Lug
• Number of Gangs: 1
• Number of Outlets: 1
• Series: FS Series
• Standards/Approvals: CSA C22.2 No. 18 File No. LR11852, Federal Specification No. W-C-586D, UL 514A File No. E3397, PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
• Type: Dead End
