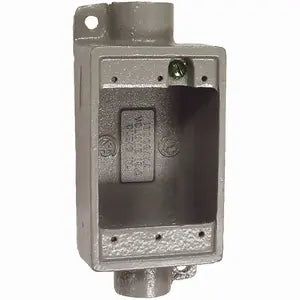

Hubbell FDC1 1/2 inches Aluminum Deep Feed Thru Device Box

Product Description

The HUBBELL FDC1 is a ½" Aluminum, Deep Feed Thru Device Box. It accommodates wiring devices and provides an opening to splice, tap, or pull conductors. It also provides access to conductors for maintenance and future system changes. Suitable for use in wet locations when used with gasket covers.

• Tapered threads (NPT with integral bushings)
• Internal grounding screw
• Mounting feet are provided as standard

Product Highlights

This device box features tapered threads, an internal grounding screw and mounting feet. It is suitable for wet locations when used with gasket covers.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: FDC1

Technical Specifications

• Application: Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
• Catalog Number: FDC-1
• Color: Gray
• Finish Type: Powder Epoxy Paint
• Hub Pattern: Feed-Thru
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Number Of Outlets: 1
• Series: F Series
• Type: Device Box
• UPC: 783936150079
• Height: 3 in
• Hub Size: 1/2"
• Length: 1 in
• Width: 1 in
• CSA File Number: LR11852
• UL File Number: E3397
