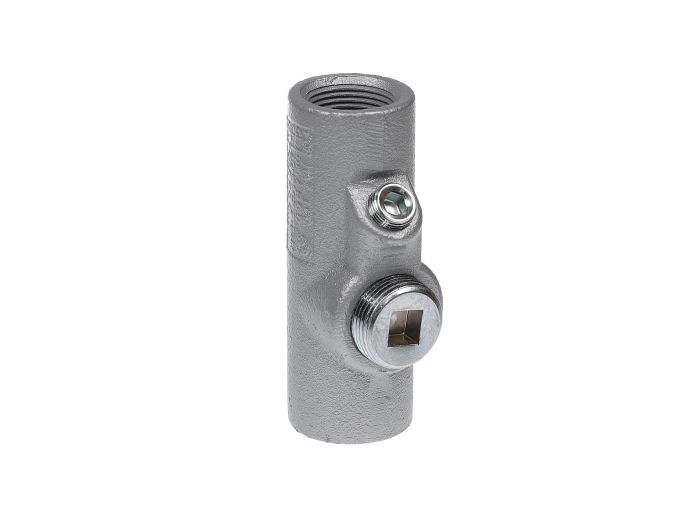

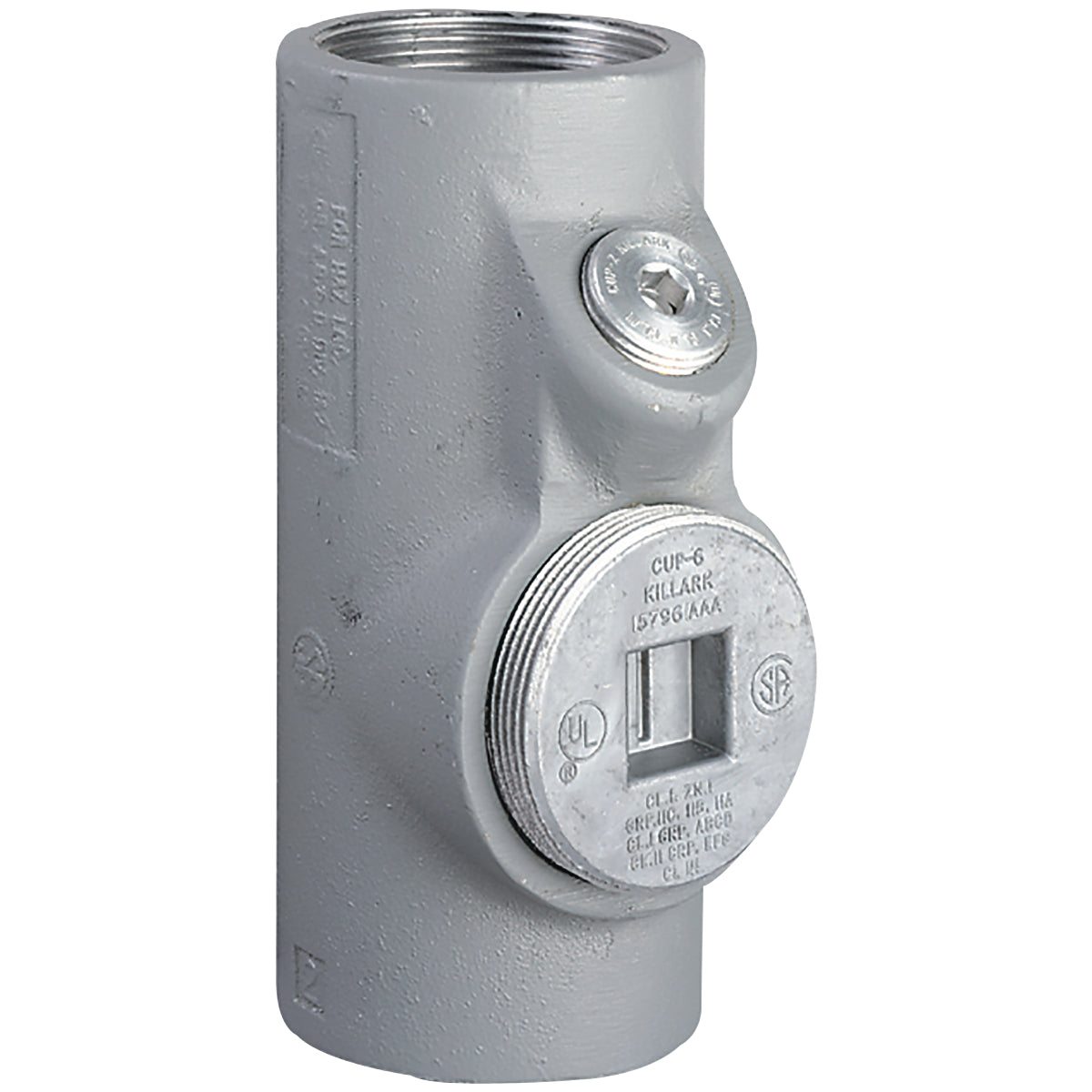

The HUBBELL ENY-3M Killark conduit sealing fitting is designed for vertical/horizontal conduit and surface mounting. The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames. It has a tri-coated finish and dimensions of 2-37/64 in L x 2-11/32 in W x 4-25/32 in H.
Suitable for vertical and horizontal conduit
Features a tri-coat finish of electro-zinc, chromate sealant, and electrostatically applied powder coating
Minimal turn radius for optimal spacing of both enclosures and conduit
Product Highlights
The Killark ENY-3M is ideal for hazardous locations, preventing the passage of flames through conduit systems.
Product Information
Standard Information
Brand: HUBBELL
Manufacturer Part Number: ENY-3M
Country of Origin: STL
Technical Specifications
Manufacturer Part Number
ENY-3M
Color
Gray
Finish
Tri-Coated
Material
Duraloy Iron
Mounting Type
Surface
Series
ENY
Size
1 in
Standards/Approvals
CSA File No. LR11716|Class I, Div 1 & 2, Groups A, B, C, D, Class I, Zone 1, Groups IIC, IIB, IIA, Class II, Div 1 & 2, Groups E, F, G, Class III|UL 514B File No. E10514
Suitable For Use With
Vertical/Horizontal Conduit
Type
Female/Female
Finish Type
Powder Epoxy Paint
UPC
783936111339
Hub Size
1"
Trade Size
1 Inch
Product Series
ENY
Connection Type
Female Hub
Position
Vertical and Horizontal
Turning Radius
1.406 "
Composition
Metallic
Protection Rating
Indoor, Outdoor
Hazardous Location
Yes
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups A, B, C, D
Class I, Zones 1 & 2, Groups IIC, IIB, IIA
Class II, Divisions 1 & 2, Groups E, F, G
Class III, Divisions 1 & 2
