Hubbell CSB320LA Switch, Spec, 3W, 20A 120/277V, B+S, LA

Product Description

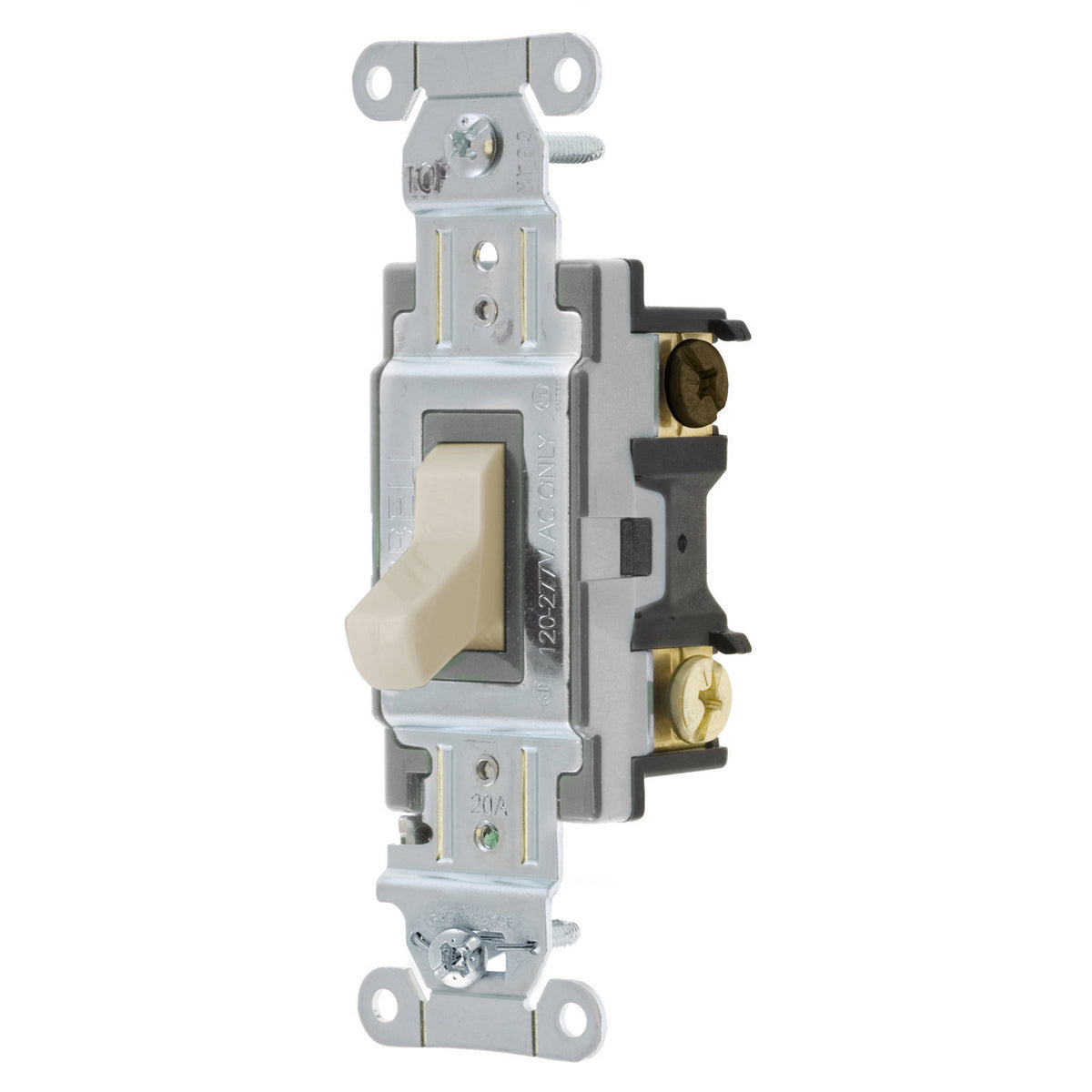

The Hubbell CSB320LA is a toggle switch designed for use in various electrical applications. This device operates at a voltage rating of one hundred twenty to two hundred seventy-seven volts and handles up to twenty amps of current. It features a two-position contact configuration suitable for general-purpose AC and indoor applications.

• 3-way, 2-position standard toggle switch
• Rated for heavy-duty commercial use
• General use in indoor electrical circuits

Product Highlights

This switch has a nylon body designed to withstand challenging conditions, with an operating temperature range from negative forty to seventy-five degrees Celsius. It also includes back and side wire terminals, providing versatility in installation.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: CSB320LA

Technical Specifications

• Actuator: Toggle
• Amperage Rating: 20 A
• Application: General Purpose AC and Indoor Applications
• Color: Light Almond
• Contact Configuration: 2-Position
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Material: Nylon
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Power Rating: 5540 W
• Standards/Approvals: RoHS Compliant, CSA Certified, Federal Specification WS896, NEMA WD1, UL 20, UL94 V-2 Flammability Rating
• Terminal Type: Back/Side Wire
• Type: 3-Way 2-Position Specification/Commercial Grade Standard
• Voltage Rating: 120 to 277 VAC
