Product Description

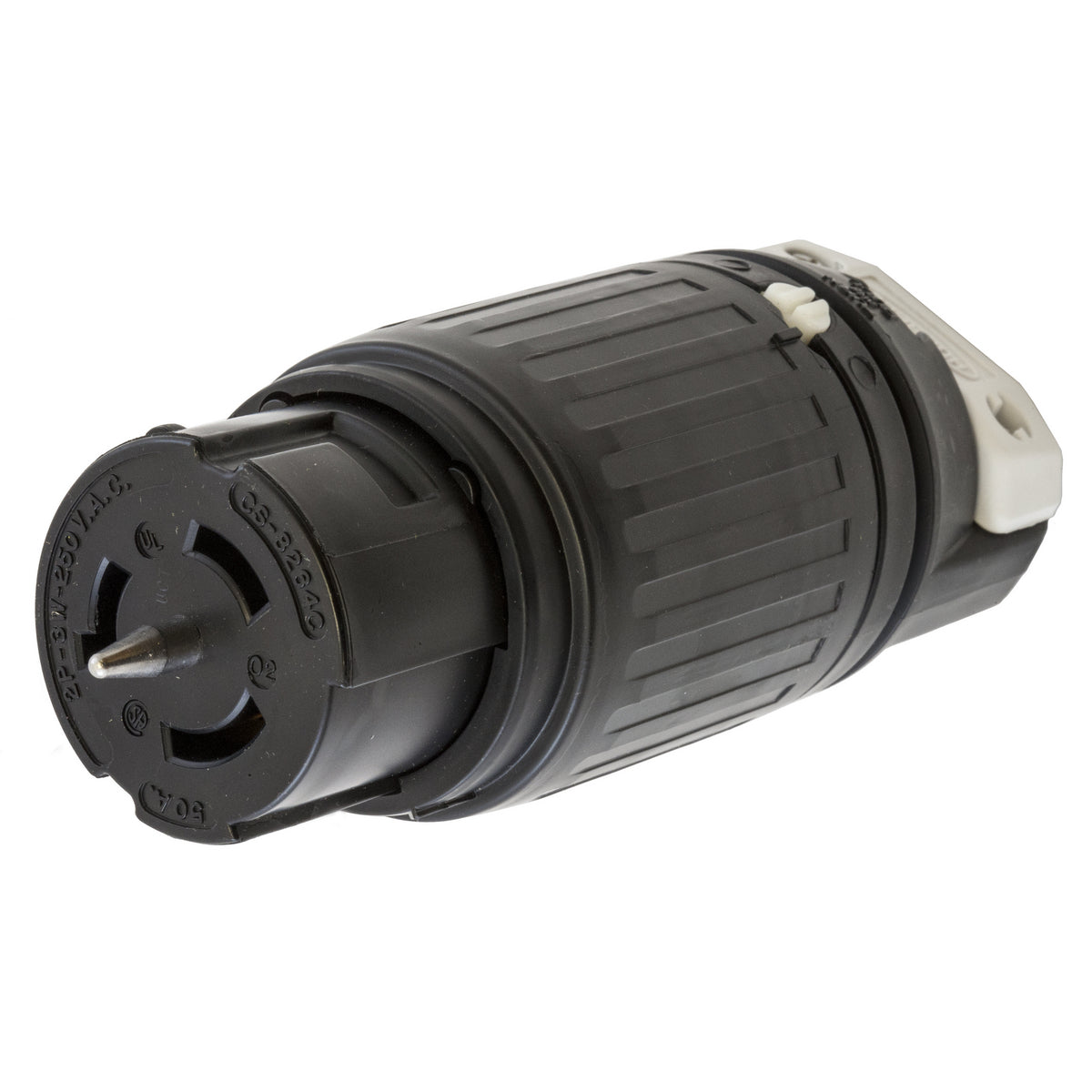

The Hubbell CS8264C is a locking connector designed for heavy duty cord mounting. It is part of the CS Series and operates at 250 VAC with an amperage of 50 A. This product features two poles and three wires, making it suitable for various industrial applications. The connector is made from nylon, featuring a black and white color scheme. It is rated for industrial use and has an IP20 enclosure for added protection.
- Designed for use with 3/4 to 1-1/8 inch diameter cord
- Temperature rating of -40 to 75 degrees Celsius
- Pressure screw terminal for secure connections
Product Highlights
This heavy duty locking connector is ideal for connection in demanding industrial settings. The rugged design ensures reliability even under challenging conditions.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358582846
Technical Specifications
-
Amperage Rating: 50 A
-
Voltage Rating: 250 VAC
-
Number of Wires: 3
-
Number of Poles: 2
-
Material: Nylon
-
Color: Black/White
-
Series: CS Series
-
Enclosure: IP20
-
Dimensions: 6.5 x 2.56 x 2.5 inches
-
Cord Diameter: 3/4 to 1-1/8 inches
-
Temperature Rating: -40 to 75 degrees Celsius
-
Terminal Type: Pressure Screw
-
Standards/Approvals: UL 498, CSA C22.2 No. 42 Certified, RoHS Compliant
