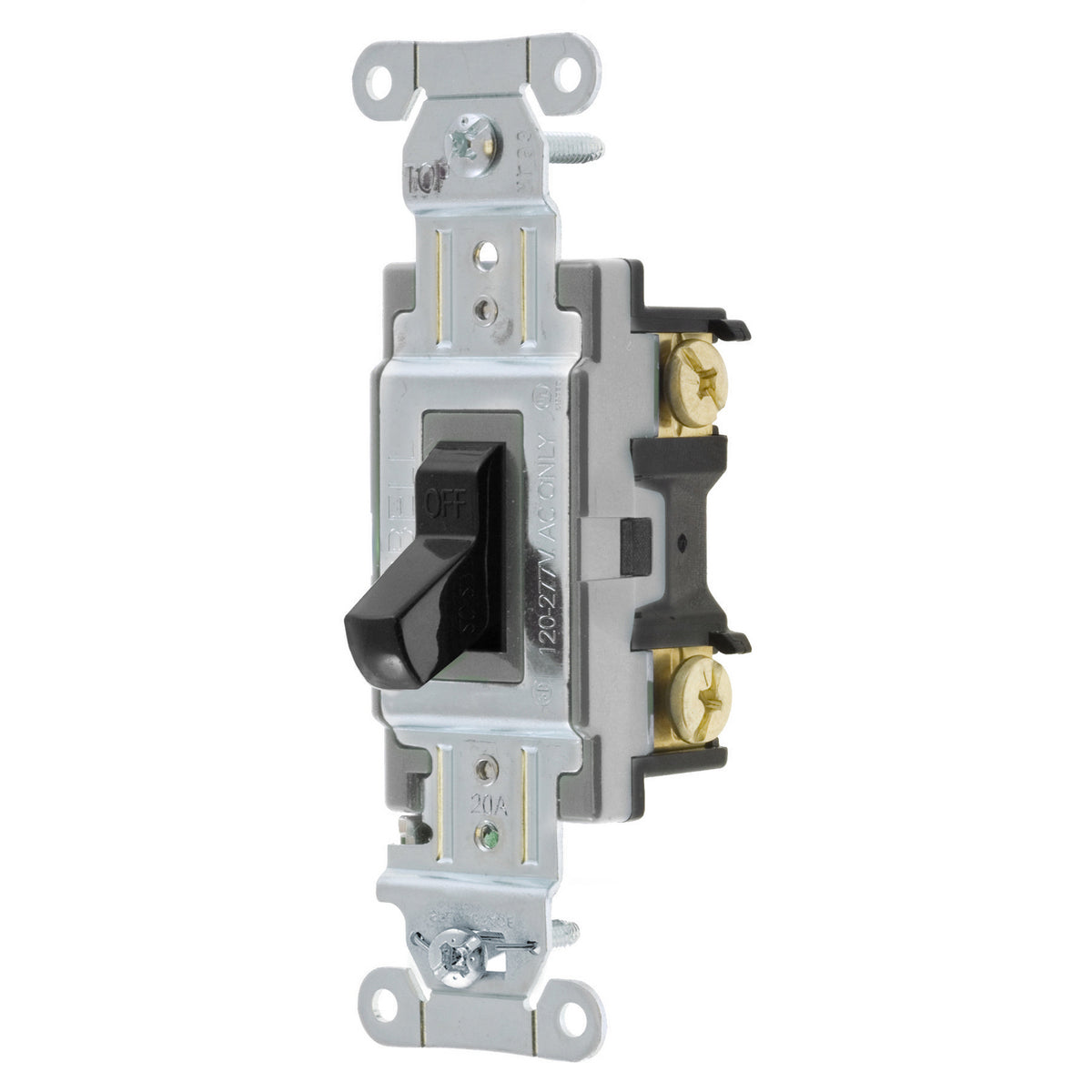

Hubbell CS120BK Toggle Switch 20A 120/277V

Product Description

The Hubbell CS120BK is a toggle switch ideal for general purpose applications. It operates at 20 amperes and supports a voltage range from one hundred twenty to two hundred seventy-seven volts. This switch features a durable nylon toggle and a threaded mounting design for secure installation in various environments.

• Rated for 20 amps and applicable for voltage up to 277 volts
• Designed with a toggle actuator for easy operation
• Constructed to meet commercial specifications, ensuring reliability

Product Highlights

This switch is engineered for commercial use and is perfect for indoor applications. It is designed to withstand environmental conditions ranging from negative forty to seventy-five degrees Celsius. The Hubbell CS120BK also comes with side wire terminals for easy connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: CS120BK

Technical Specifications

• Actuator: Toggle
• Amperage Rating: 20 A
• Voltage Rating: 120 to 277 VAC
• Power Rating: 5540 W
• Material: Nylon
• Operating Temperature: -40 to 75 degrees C
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Number of Poles: 1
• Contact Configuration: 2-Position
• Terminal Type: Side Wire
• Operating Cycles: 50000 cycles
• Environmental Conditions: Indoor Dry
• Standards/Approvals: RoHS Compliant, CSA Certified, NEC Certified, UL 20
