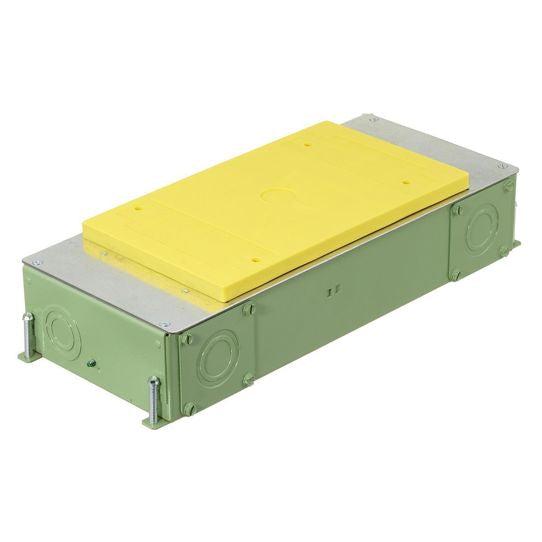

Hubbell CFB2G30CRE Recessed 2-Gang Concrete Floorbox with Rectangular Cover

Product Description

The HUBBELL CFB2G30CRE is a 2-Gang concrete floorbox with a rectangular cover, designed for use in concrete floors. It features 3.75" deep wiring chambers for large AV modules and feed-thru capacity. The floorbox allows for field installation of external high-capacity hubs, sold separately, and includes a flush installation cover and 1/2" prepour cap. Each gang includes a 6" solid #12 AWG conductor grounding pigtail.

• For Use In Concrete Floors
• 3.75" Deep Wiring Chambers
• External High Capacity Feed-Thru Hubs Sold Separately

Product Highlights

This recessed 2-gang floorbox is made of pregalvanized stamped steel with corrosion-resistant paint and concentric knock-outs.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: CFB2G30CRE
• Country of Origin: United States of America (the)

Technical Specifications

• Application: For Use in Concrete Floors
• Catalog Number: CFB2G30CRE
• Color: Metallic/Green Epoxy Paint
• Construction: Fabricated
• Knockouts: 10
• Material: Galvanized Stamped Steel
• Mounting Method: Screw Mount Device Mounting Plates
• Mounting Type: Field Installed
• Number of Gang(s): 2-Gang
• Series: Concrete Floorboxes
• Size: 2-Gang
• Style: 2-Gang
• Type: Recessed
• Cable Entry: Through Cover
• Industry Standard(s): cULus UL514
• Capacity: 56.5 cu-in
• Finish: Galvanized
• Hub Size: 2 in
• Knockout Size: (2) 1/2 in, 3/4 in, 1 in, 1-1/4 in Ends, (4) 3/4 in, 1 in, 1-1/4 in, 2 in Sides, (4) 1/2 in, 3/4 in, 1 in, 1-1/4 in Bottom
• Number of Gangs: 2
• Number of Knockouts: 10
• Shape: Rectangle
• Sold as: EACH
• Manufacturer: Hubbell Wiring Device-Kellems
• Country of Origin: United States
• Made in USA: Yes
• Mounting: Field Installed
• Special Features: Pregalvanzied Stamped Steel Box with Corrosion Resistant Paint; Concentric Knock-Outs;High-Capacity Feed-Through (External Hubs Purchased Separately)
• Standard: cULus;UL514
• Item Type: Recessed
• Length: 16.27
• Length UOM: Inch
• Width: 6.62
• Width UOM: Inch
• Height: 3.00
• Height UOM: Inch
