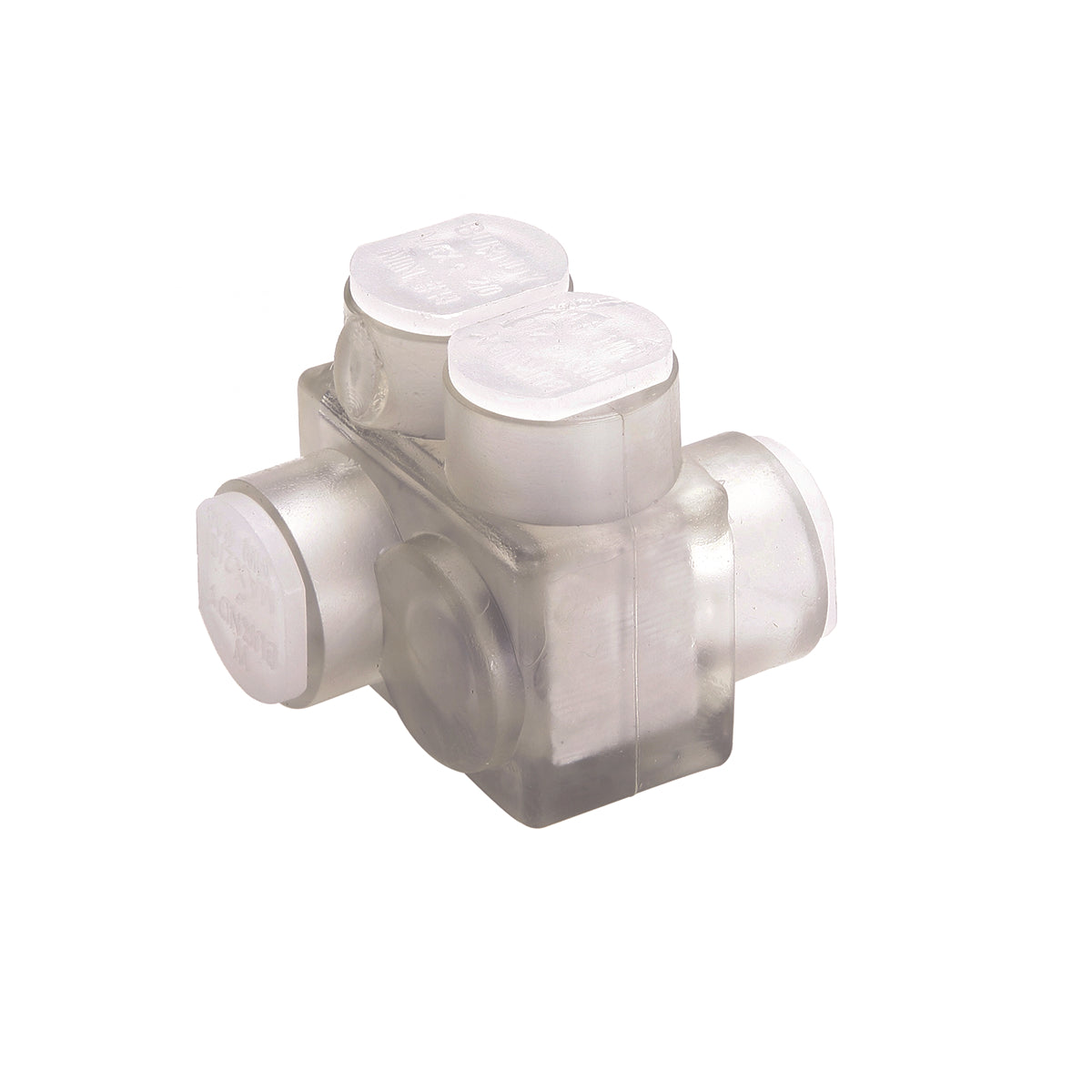

Hubbell BITO250 BURNDY UNI-TAP TERM. CONN. 10-250MCM TWO-OPPOSING ENTRY

Product Description

Hubbell BITO250 is a BURNDY UNI-TAP Multi-Tap Connector designed for conductors ranging from ten AWG to two hundred fifty kcmil. This connector features two opposing entries and is capable of handling up to six hundred VAC. The aluminum construction makes it suitable for use with both stranded aluminum and copper conductors.

• Compatible with various conductor sizes from 10 AWG to 250 kcmil.
• Meets UL wire connector standards and CSA certification.
• Features a clear plastisol insulation for easy visual confirmation of conductor insertion.

Product Highlights

This connector simplifies installation and reduces downtime by eliminating the need for taping. The oxide inhibitor prevents moisture and contaminants from affecting conductivity.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181013407

Technical Specifications

• Application: For copper or stranded aluminum, indoor applications
• Conductor Size: 10 AWG to 250 kcmil
• Conductor Type: Aluminum/Copper Stranded
• Dimensions: 2.13 inches L x 2.2 inches W x 2.14 inches H
• Manufacturer Part Number: BITO250
• Material: Aluminum
• Series: BITO
• Specifications: 5/16 inches Hex Key, 275 in-lb Torque Multi-Port, 1-3/16 inches L Wire Strip
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 486A, UL 486B
• Temperature Rating: 90 degrees C
• Type: 2-Sided Entry
• Voltage Rating: 600 VAC
