Hubbell BISR500 BURNDY 500-6 In-Line Splice

Product Description

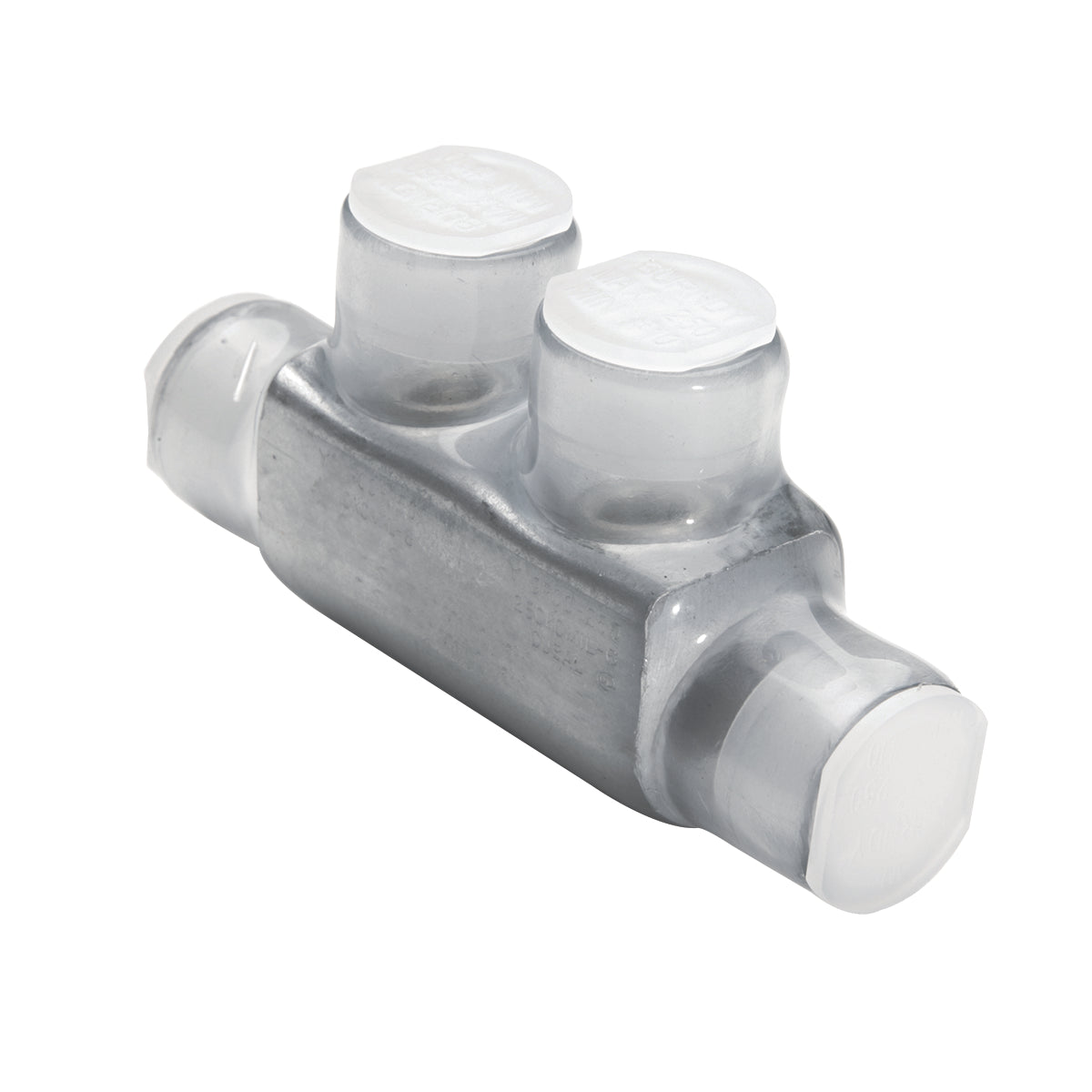

The Hubbell BISR500 is a BURNDY® UNITAP™ 2-Port Dual Rated In-Line Splice/Reducer. This connector is designed for use with aluminum and copper conductors ranging from six AWG to four hundred kcmil. It provides a reliable and efficient means to connect wires.

• Compatible with multiple conductor sizes including 6 AWG to 500 kcmil
• Clear plastisol cover which allows for visual inspection
• Easy installation with two screws and no need for taping

Product Highlights

This splice features a time-saving design that reduces installation costs. The oxide inhibitor prevents moisture from entering the connection, maintaining the integrity of the splice.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181013408

Technical Specifications

• Conductor Size: 6 AWG, 4 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG
• Conductor Type: Aluminum/Copper
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Specifications: 380 A, 1/2 in Hex, 375 in-lb Torque
• Dimensions: 5 in L x 1.56 in W x 2.29 in H
• Material: Aluminum
• Series: BISR
• Number of Screws: 2
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, CSA Certified, RoHS Compliant, UL 486A, UL 486B
