Hubbell BISR250 BISR-250 250MCM In-Line Splice Bur

Product Description

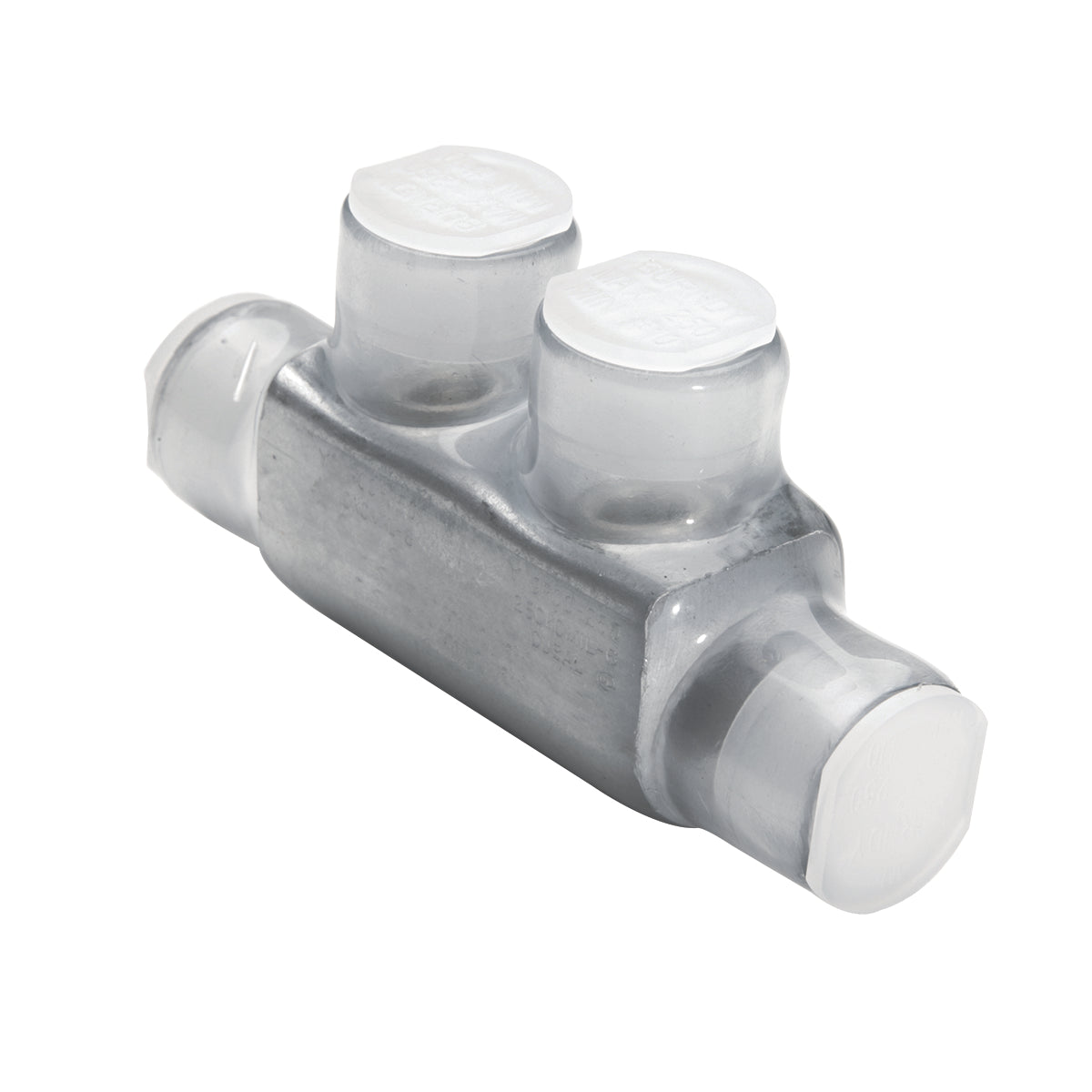

The Hubbell BISR250 is a 2-port in-line splice reducer designed for aluminum and copper conductors. It accommodates conductor sizes from ten AWG to two hundred fifty kcmil. This product is rated for six hundred VAC and is ideal for indoor applications.

• Quick and easy in-line splice and reductions using the unitap line of connectors.
• Moisture and contaminant protection through a pre-installed oxide inhibitor.
• Clear plastisol cover allows for visual insertion confirmation of conductors.

Product Highlights

This splice reducer provides effective and reliable connections for electrical installations.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181013410

Technical Specifications

• Application: Indoor Applications
• Conductor Type: Aluminum/Copper
• Run Main Size: 10 AWG to 250 kcmil
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Installation Torque: 275 in-lb
• Dimensions: 41 in L x 1.19 in W x 2.1 in H
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, CSA Certified, RoHS Compliant, UL 486A, UL 486B
