Product Description

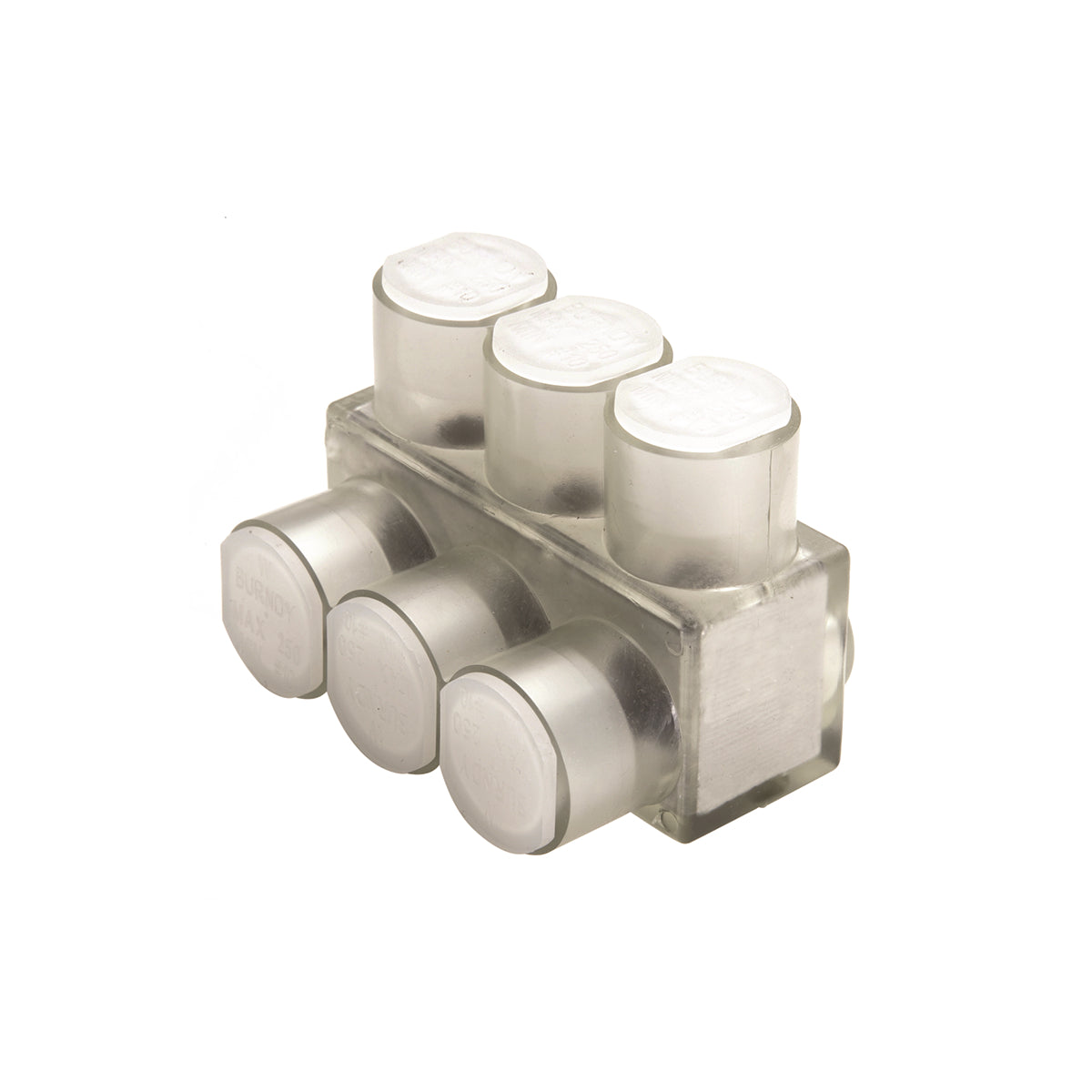

The Hubbell BIBS43 is a BURNDY UNITAP multi-tap connector designed for reliability in electrical connections. Built for 14 to 4 AWG conductors, this connector is suitable for copper and stranded aluminum wire. It operates at a voltage rating of 600 VAC. The aluminum body features clear plastisol insulation, allowing users to visually confirm proper conductor insertion.
- Supports copper or stranded aluminum conductors
- Temperature rated to 194 degrees Fahrenheit
- UL486A and UL486B compliant for safe connections
Product Highlights
With its efficient design, the BIBS43 reduces inventory needs and speeds up installations.
Product Information
Standard Information
-
Application: For copper or stranded aluminum and indoor applications
-
Conductor Size: 14 to 4 AWG
Technical Specifications
-
Manufacturer Part Number: BIBS43
-
Dimensions: 1.59 in L x 1.25 in W x 1.25 in H
-
Material: Aluminum
-
Specifications: 1/8 in Hex Key, 45 in-lb Torque Multi-Port, 5/8 in L Wire Strip
-
Standards/Approvals: ARRA Compliant|BAA Compliant|RoHS Compliant|UL 486A|UL 486B|Buy American Act Compliant
-
Voltage Rating: 600 VAC
-
Temperature Rating: 194 degrees Fahrenheit
