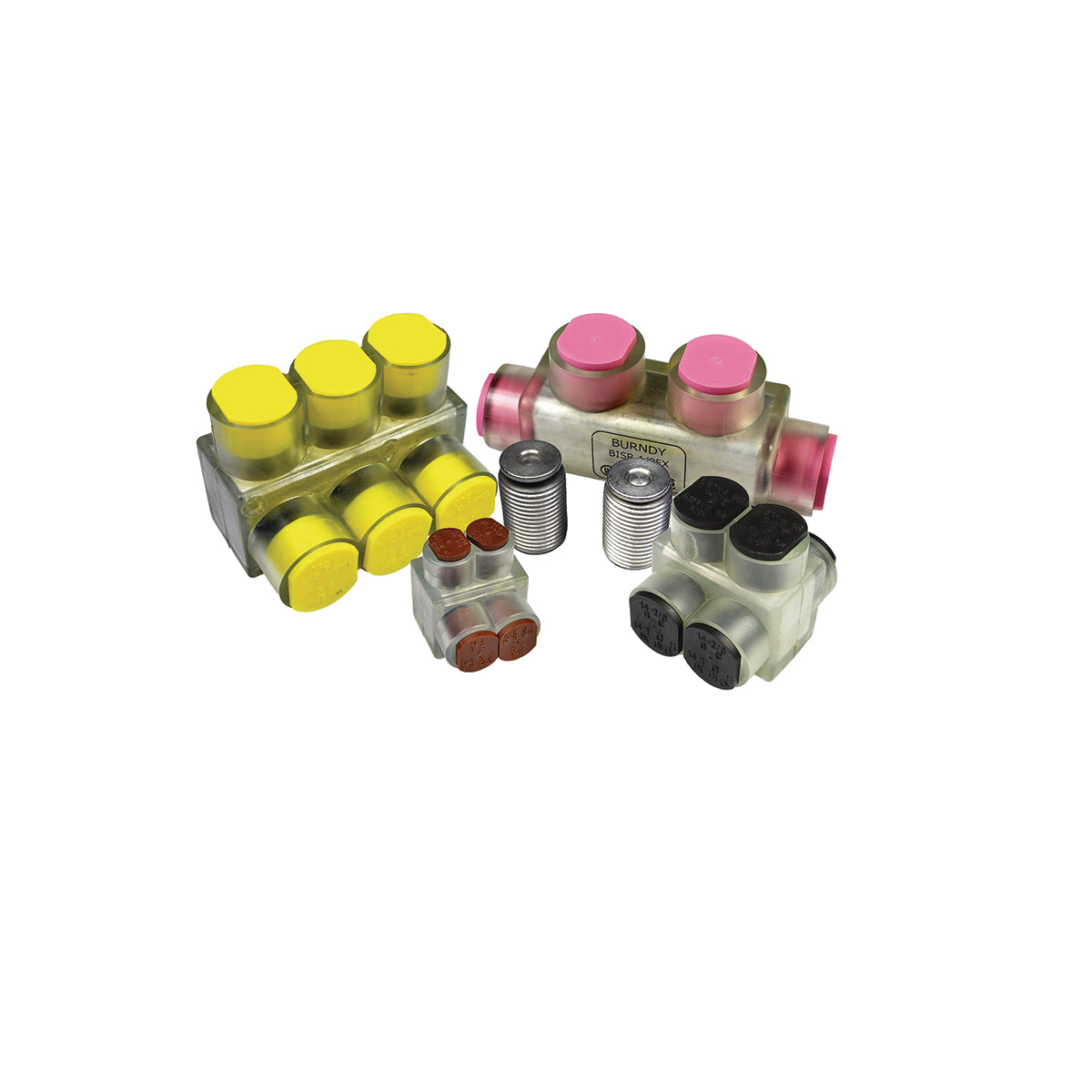

Hubbell BIBD43FX BURNDY 14-4 TWO SIDED UNITAP, 3 PORT

Product Description

BURNDY BIBD43FX is a multi-tap connector designed for electrical connections. This insulated connector supports aluminum and copper conductors ranging from fourteen to four AWG. It is suitable for use in various applications including tap connections and in-line splice/reductions.

• Supports 14 AWG to 4 AWG conductors
• Temperature rating from -40 to 135 degrees C
• Tin plated for enhanced corrosion resistance

Product Highlights

This product helps reduce installation costs and time by eliminating the need for taping while providing a reliable electrical connection.

Product Information

Standard Information

• Manufacturer: Hubbell
• Voltage Rating: 600 VAC

Technical Specifications

• Conductor Size: 14 to 4 AWG, 14 to 6 AWG
• Current Rating: 85 A
• Material: Aluminum
• Body Type: AL6061-T6 aluminum
• Series: BIBD
• Dimensions: 1.268 in L x 1.5 in W
• Finish: Tin Plated
• Temperature Rating: -40 to 135 degrees C
• Standards: RoHS Compliant, UL 468A/468B
