Product Description

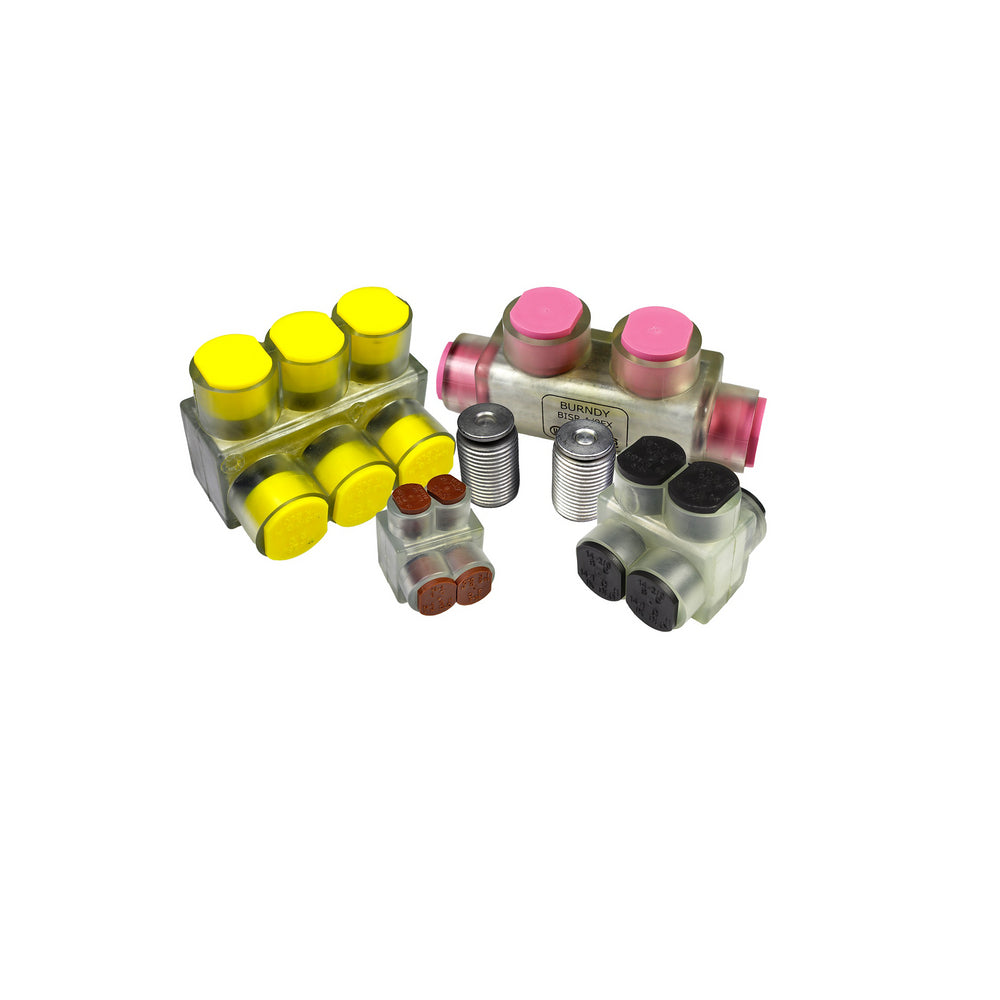

BURNDY UNITAP BIBD2502FX is an insulated multi-tap connector designed for efficient tap connections and in-line splices. This product accommodates aluminum and stranded copper conductors ranging from ten AWG to two hundred fifty kcmil and from ten to three aught AWG. It is rated for six hundred VAC and can operate in temperatures from negative forty to one hundred thirty-five degrees Celsius.
- Compatible with 10 AWG to 250 kcmil conductors.
- Features a clear plastisol covered AL6061-T6 aluminum body.
- Includes an oxide inhibitor to enhance performance.
Product Highlights
The BIBD2502FX ensures quick and easy connections, reducing installation time and costs.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: BIBD2502FX
Technical Specifications
-
Application: Tap connections and in-line splice/reductions
-
Conductor Size: 10 AWG to 250 kcmil, 10 to 3/0 AWG
-
Conductor Type: Aluminum/Stranded Copper
-
Dimensions: 1.78 in L x 2.63 in W
-
Finish: Tin Coated
-
Material: Aluminum
-
Specifications: 2-Ports
-
Voltage Rating: 600 VAC
-
Temperature Rating: -40 to 135 deg C
-
Standards/Approvals: UL 468A/468B | PROP65 - This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
