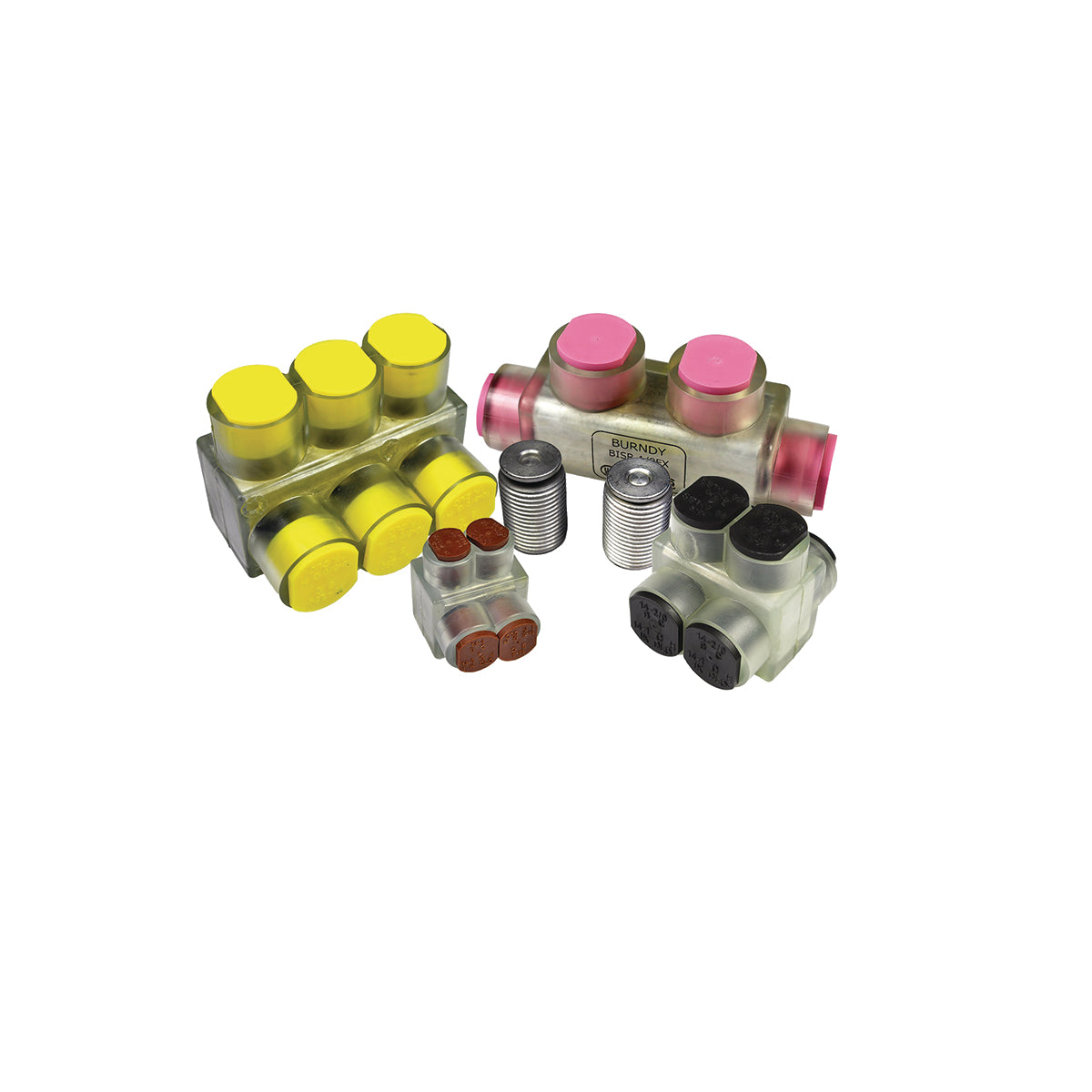

Hubbell BIBD2/03FX BURNDY 2/0-14 TWO SIDED UNITAP, 3 PORT

Product Description

The Hubbell BIBD2/03FX is a durable multi-tap connector for aluminum and copper applications. It accommodates conductors from fourteen to two-aught American Wire Gauge (AWG) and can handle a voltage rating of six hundred VAC. The connector is designed to facilitate quick and effective tap connections and in-line splices.

• Three ports for multiple connections
• Insulated for enhanced safety
• Suitable for aluminum, stranded or copper conductors

Product Highlights

This unitap connector simplifies installation and reduces the number of connectors needed.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: BIBD2/03FX

Technical Specifications

• Conductor Size: 14 to 2/0 AWG, 14 to 1 AWG
• Conductor Type: Aluminum/Copper/Stranded
• Voltage Rating: 600 VAC
• Temperature Rating: 194 deg F
• Material: Aluminum
• Finish: Tin Plated
• Dimensions: 1.938 in L x 1.56 in W
• Standards/Approvals: RoHS Compliant, UL 468A/468B
