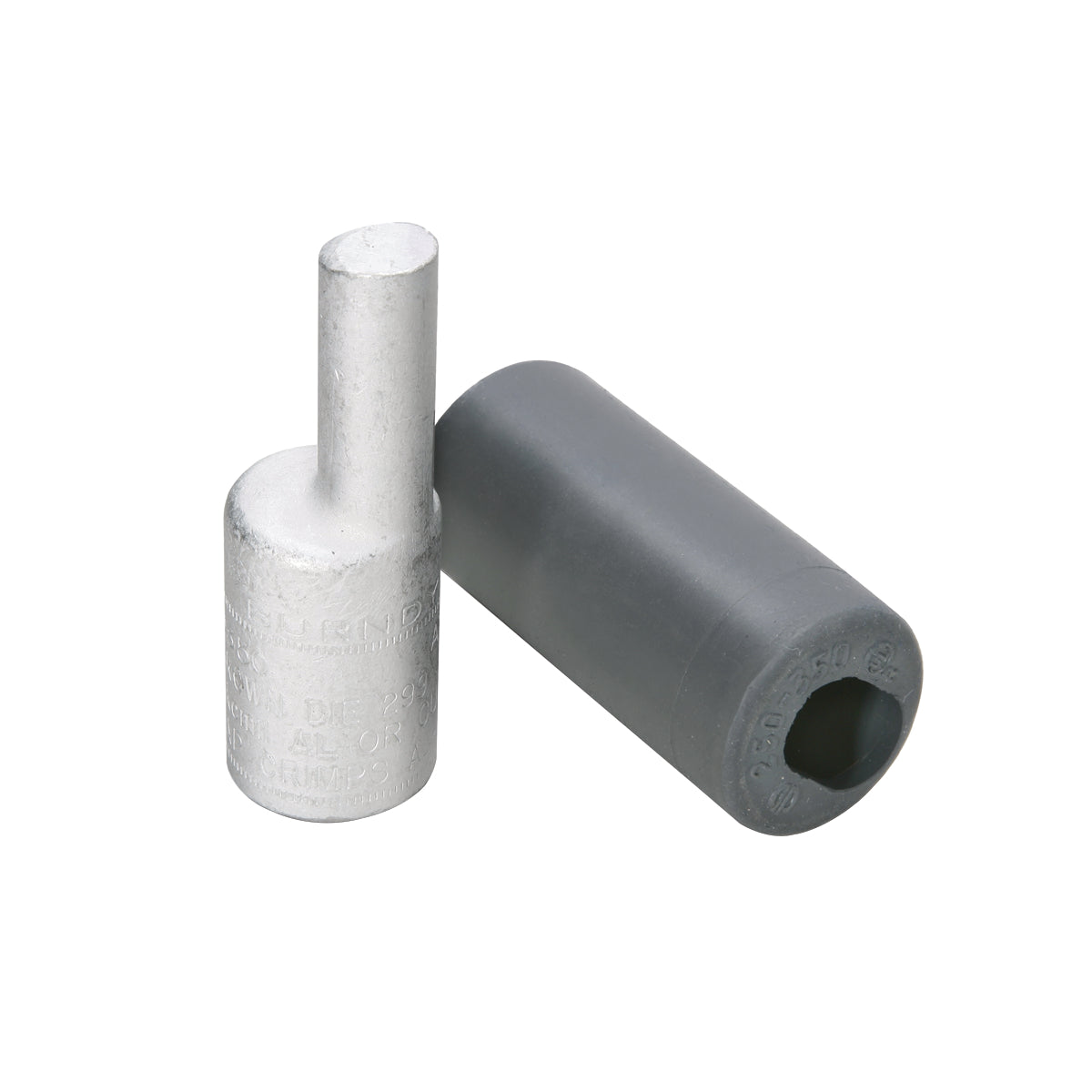

Hubbell AYPO350 350 Termination Plug Burndy

Product Description

The Hubbell AYPO350 is a compression pin adapter designed for efficient electrical connections. This product accommodates 350 kcmil conductors and is made of aluminum for durability. It features a pin diameter of zero point five seven inches and a length of one point three four inches. The terminal is suited for applications ranging from six hundred to thirty-five thousand volts alternating current.

• Compatible with aluminum and copper conductors
• Rated for up to 35 kV voltage applications
• Includes EPDM rubber covers for better performance

Product Highlights

The AYPO350 makes electrical connections faster and easier. It is suitable for both commercial and industrial electrical applications.

Product Information

Standard Information

• Application: For aluminum and copper conductors, mechanical connectors in molded case circuit breakers, panel board equipment, and meter sockets
• Manufacturer: Hubbell

Technical Specifications

• Manufactured Part Number: AYPO350
• Conductor Size: 350 kcmil
• Pin Length: 1.34 inches
• Pin Diameter: 0.57 inches
• Barrel Length: 1-1/16 inches
• Voltage Rating: 600 to 35000 VAC
• Material: Aluminum
• Color Code: Brown
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant
