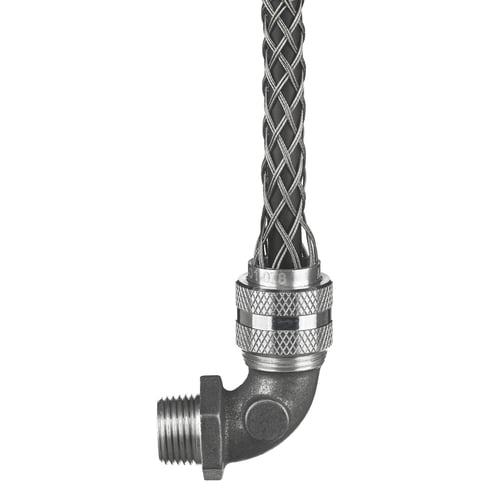

HUBBELL 74011275 Deluxe Cord Grip with Stainless Steel Mesh 3/4 Inch

Product Description

The HUBBELL 74011275 is a deluxe cord grip used to manage cable stress and prevent pull-out. It maintains a liquidtight seal and operates at a 90-degree angle. Built with aluminum fittings and stainless steel mesh, this grip is suitable for hazardous and wet locations when paired with a nylon washer. It is designed for insulated cables with a trade size of three-fourths of an inch.

• Has a three-fourths inch MNPT connection type.
• Accommodates cable openings from zero point seventy-five to zero point eighty-seven five inches.
• Suitable for single conductor cables.

Product Highlights

This cord grip is ideal for electricians needing reliable cord management in challenging environments.

Product Information

Standard Information

• Brand: Hubbell
• MPN: 74011275

Technical Specifications

• Material: Aluminum Fittings, Stainless Steel Mesh
• Angle: 90 degrees
• Connection Type: MNPT
• Trade Size: 3/4 inch
• Cable Diameter Range: 0.75 inches - 0.875 inches
• Conductor Range: 0.75 - 0.875 inches (1.90 - 2.22 mm)
• Number of Conductors: Single
• Temperature Rating: -34 to 115 degrees Celsius
• Application: For use in hazardous locations
• Standard & Approvals: UL 94 HB, UL 94 V2, CSA Certified, Class I, Division 2, Class II, Division 1 and 2, Class III, Division 1 and 2, UL Listed
• Mounting: Locknut or Tapped Opening
• Form Size: F3
• Thread Size: 3/4 NPT
• Dimensions: 1.375 inches Diameter x 2.8 inches Length
