Hubbell 5331-0 RACO WP BX 1G 5(3/4 OTLETS)

Product Description

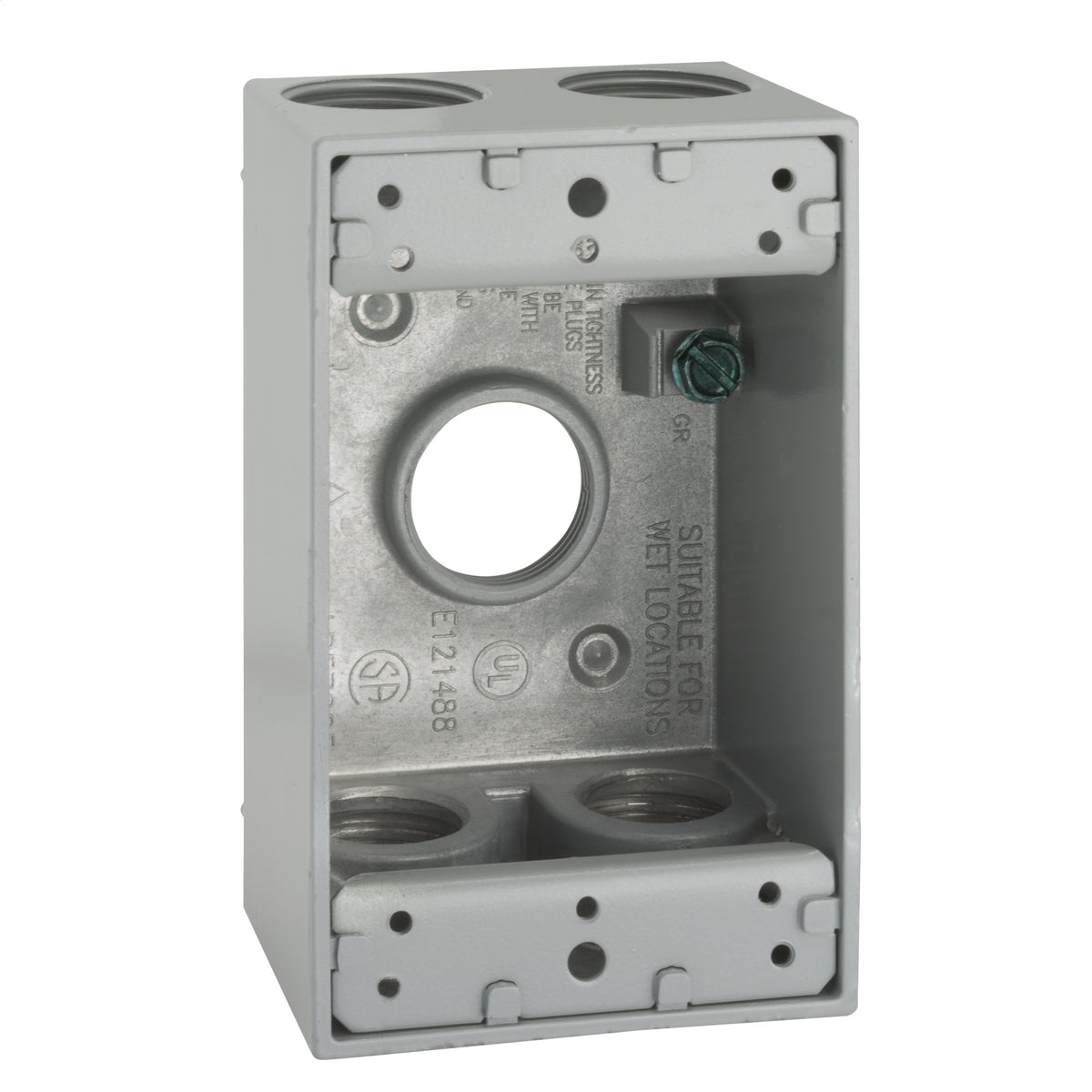

The Hubbell 5331-0 weatherproof outlet box is designed for use in various electrical applications. It offers five outlets in one gang and features a threaded hub. This NEMA 3R enclosure provides durability and is crafted from die-cast aluminum with a powder-coated finish. The outlet box holds an eighteen point three cubic inch capacity and is ideal for environments requiring moisture protection.

• Five reinforced connector outlets
• Internal hub threads meet NEMA requirements
• Includes mounting hardware and multi-lingual instructions

Product Highlights

This product is suitable for both wet and dry locations and can function as a junction box or a housing for switches and receptacles.

Product Information

Standard Information

• Brand: Hubbell
• MPN: 5331-0

Technical Specifications

• Application: Used in branch circuit wiring in wet, damp, and dry locations
• Color: Gray
• Dimensions: Four and a half inches high x two and three-quarter inches wide x two inches deep
• Enclosure: NEMA 3R
• Finish: Powder Coated
• Hub Size: Three-quarter inch
• Hub Style: Threaded
• Includes: (2) Closure plugs, (5) Threaded outlets, Ground screw, Gasket, and multi-lingual instructions
• Material: Die Cast Aluminum
• Mounting Type: Lug
• Number of Gangs: 1
• Number of Outlets: 5
• Prop65 Message: WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
• Standards/Approvals: CSA Certified, UL Listed
