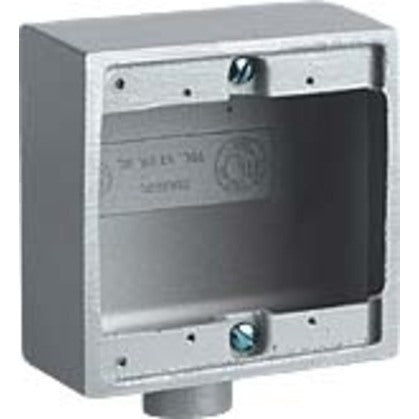

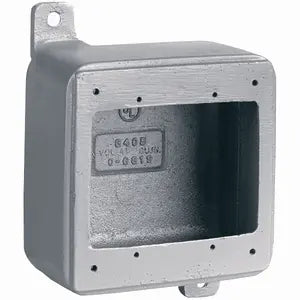

Hubbell 2FD Device Box, 2 Gang

Product Description

The HUBBELL 2FD Series fitting is a cast device box suitable for standard and hostile locations. It accommodates wiring devices and provides an opening to splice, tap, or pull conductors. It also provides access to conductors for maintenance and future system changes. Internal grounding screw. For use with FS-style covers.

• Tapered threads (NPT with integral bushings)
• Internal grounding screw
• Mounting feet are provided as standard
• Suitable for use in wet locations when used with gasket covers

Product Highlights

This 2 gang device box is made from copper-free aluminum with a powder epoxy paint finish and is suitable for concrete use.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: 2FD

Technical Specifications

• Application: Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
• Catalog Number: 2FD
• Color: Gray
• Finish Type: Powder Epoxy Paint
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Number Of Outlets: 2
• Series: F Series
• Type: Device Box
• Gangs: 2
