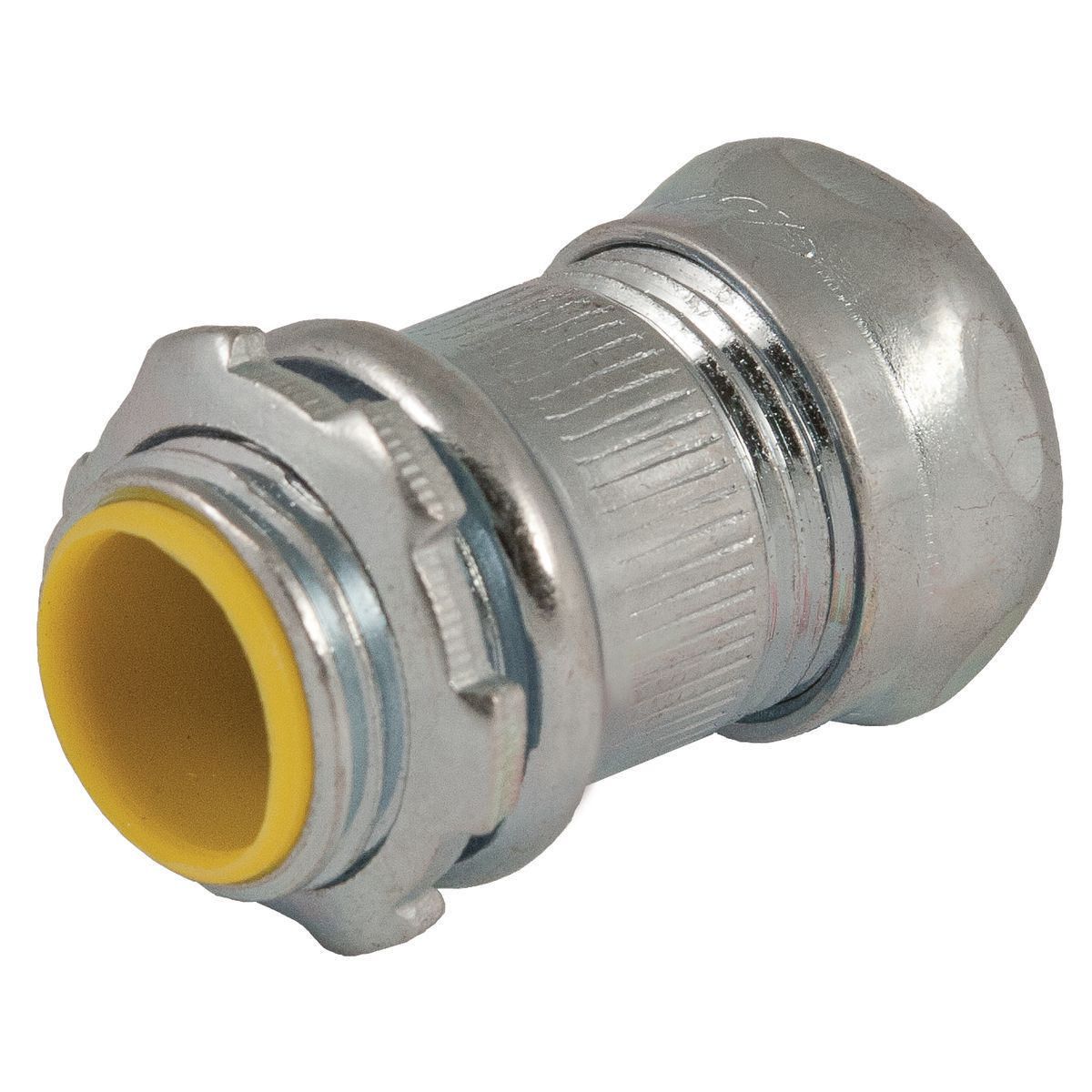

Hubbell 2914 RACO EMT COMPR CONNECTOR INSUL 1 IN

Product Description

The Hubbell 2914 RACO Insulated Compression Connector is designed for use with EMT conduit. This connector provides a secure bond between EMT conduit and an electrical box or enclosure. The product is constructed from steel and features an electro-plated zinc finish for enhanced corrosion resistance.

• Suitable for applications above 600 volts.
• Concrete-tight connections for sizes ranging from half to four inches.
• Mechanical protection ensured by all-steel construction.

Product Highlights

RACO compression connectors are ideal for protecting electrical raceways in various installations. Their threaded mount provides an easy connection, suitable for multiple applications.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 05016902914

Technical Specifications

• Application: Used to bond EMT conduit to a box or enclosure.
• Trade Size: 1 inch.
• Material: Steel.
• Finish: Electro-Plated Zinc.
• Dimensions: 1.9 inches long.
• Mounting Type: Threaded.
• Standards/Approvals: UL File No. E195969, cULus 514B, CSA C22.2 No. 18.
• Suitable For Use With: EMT Conduit.
