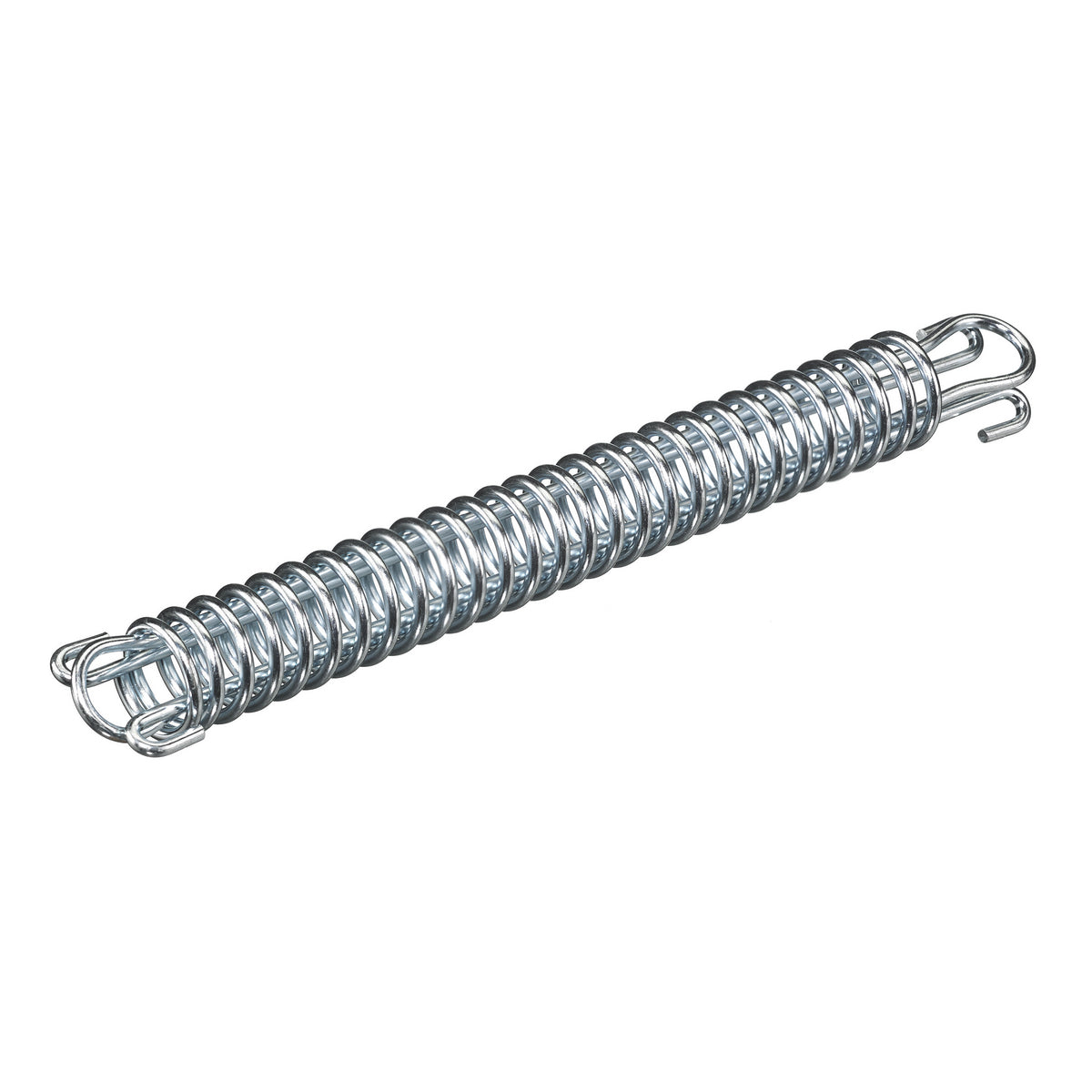

Hubbell 20302001 Wiring Device-Kellems Standard Woven Safety Grip Spring 40 lb Load

Product Description

The Hubbell 20302001 Wiring Device-Kellems Safety Grip Spring is designed for cable pulling tasks. With a load capacity of forty pounds, this spring features a maximum deflection of two and three-quarters inches and breaking strength of five hundred pounds. It has a total length of eight and one-quarter inches, made from galvanized steel for durability.

• Supports single eye grip applications
• Galvanized steel construction
• CSA certified and UL listed

Product Highlights

This safety grip spring is ideal for cable installations and offers reliable support during cable pulls, ensuring safety and efficiency.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358532626

Technical Specifications

• Type: Standard Woven
• Application: For use with single eye grips applications
• Breaking Strength: 500 lb
• Length: 8-1/4 in
• Load Capacity: 40 lb
• Finish: Galvanized
• Material: Steel
• Maximum Deflection: 2-3/4 in
• Standards/Approvals: CSA Certified | UL Listed
