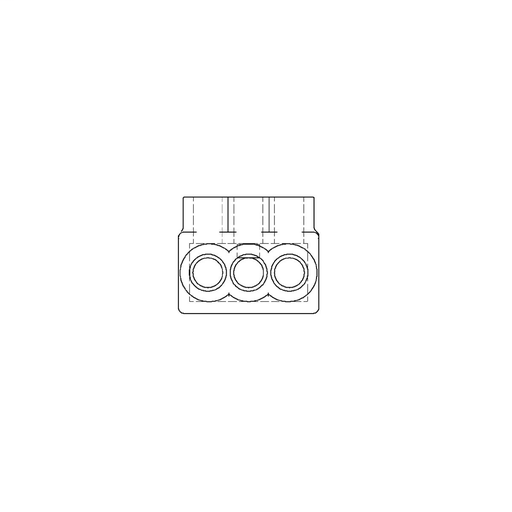

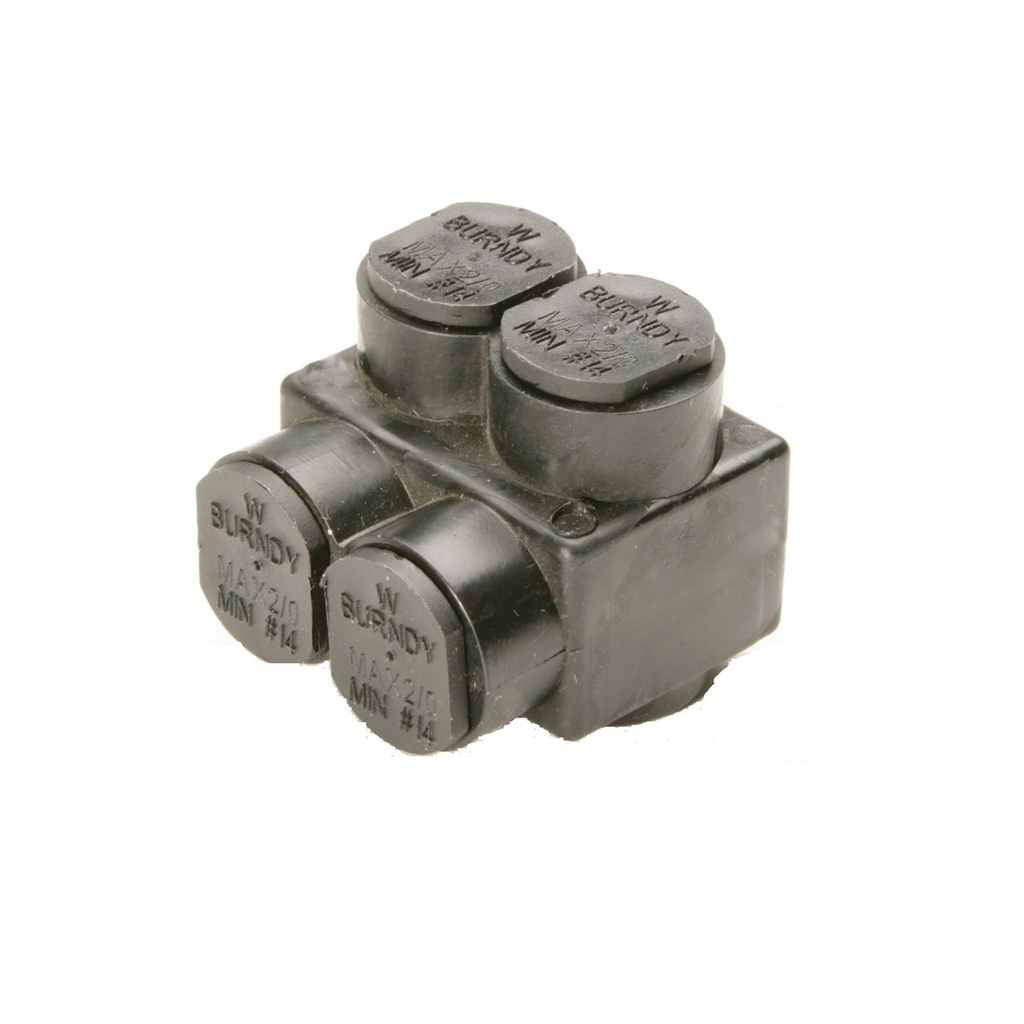

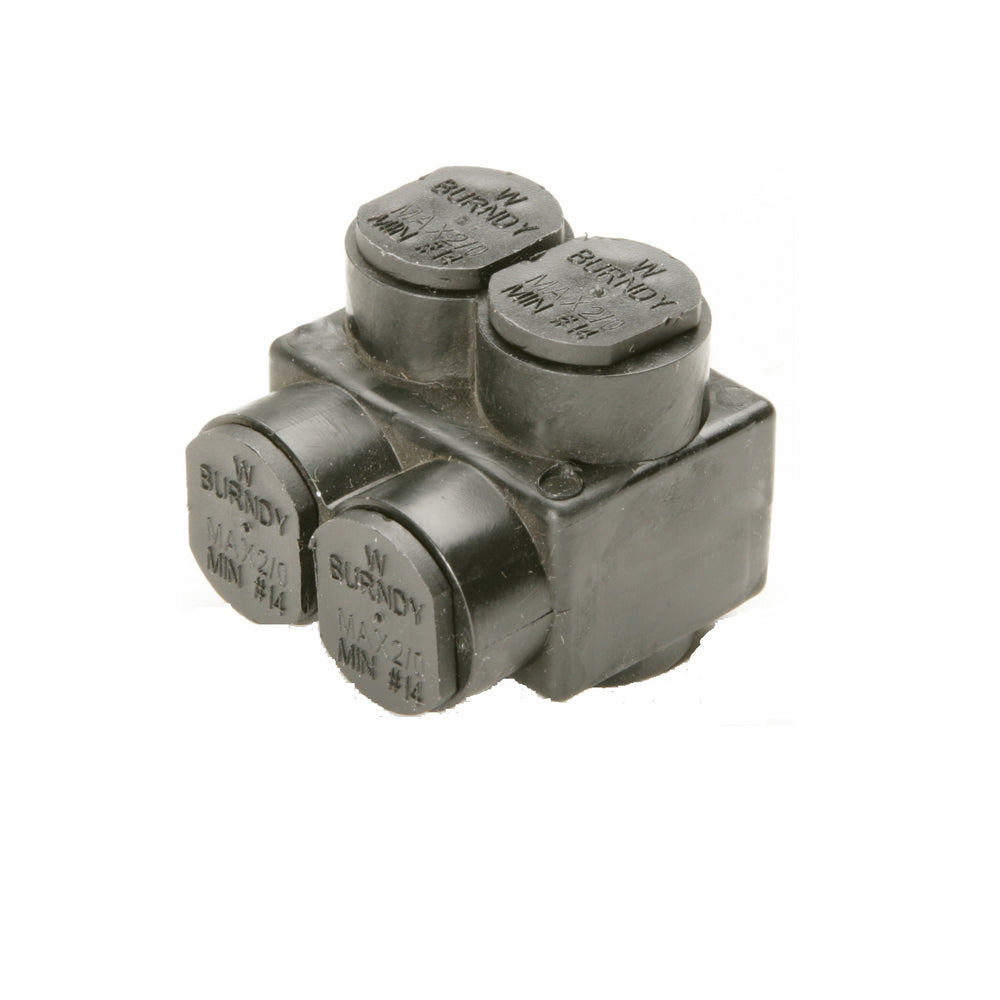

Hubbell 1PL2502 Aluminum Multiple Tap Connector, 600 Volt, 2 Port, 10 AWG-250 kcmil

Product Description

Hubbell 1PL2502 is an aluminum multiple tap connector designed for secure and efficient connections in electrical applications. Suitable for copper or stranded aluminum conductors, this connector can handle a voltage of 600 volts. It features a two-port design with one-sided entry, accommodating conductors from ten AWG to two hundred fifty kcmil.

• UV rated covering over aluminum body
• Includes oxide inhibitor to protect against moisture
• Range-taking capability simplifies inventory

Product Highlights

The design enables a straightforward solution for connecting multiple conductors. Its insulating cover eliminates the need for additional taping, reducing installation time. The built-in oxide inhibitor effectively prevents contamination, ensuring reliable connections. The range-taking feature allows for varied conductor sizes without the need for multiple connectors.

Product Information

Standard Information

• Brand: Hubbell Incorporated
• Sub Brand: Burndy

Technical Specifications

• Material: Aluminum
• Voltage: 600 Volt
• Conductor Size: 10 AWG to 250 kcmil
• Temperature Rating: 194 degrees F
• Type: BIBS, Multi-Port
• Dimensions: 2.13 inches height, 2.28 inches length, 2.07 inches width
• Buy American Compliant: Yes
• Country of Origin: USA
