Product Description

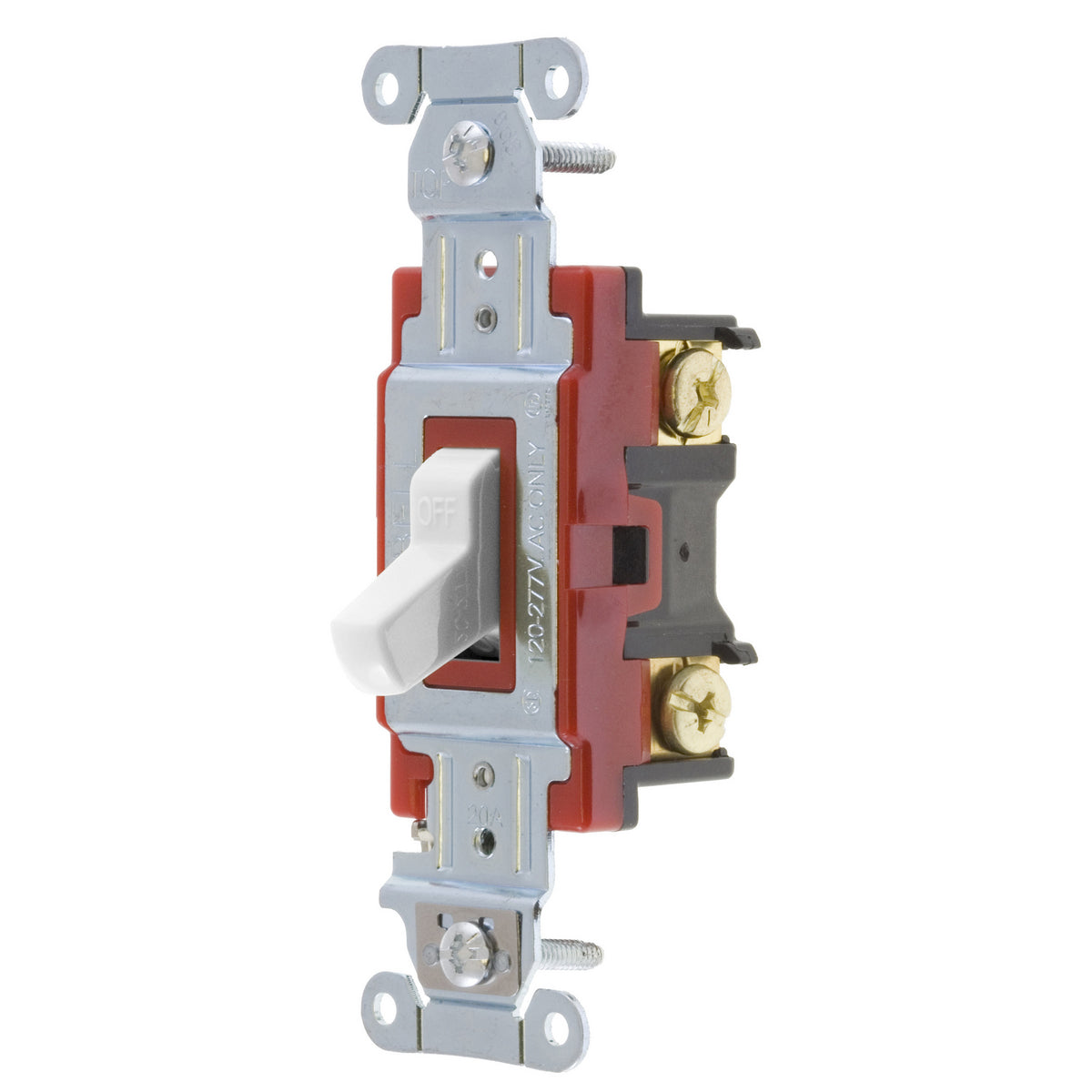

The Hubbell 1222W Toggle Switch is designed for heavy-duty applications with a voltage rating of one hundred twenty to two hundred seventy-seven volts and a power rating of five thousand five hundred forty watts. This product features a nylon and thermoplastic build which ensures durability and resistance to environmental conditions ranging from negative forty to seventy-five degrees Celsius. It is ideal for industrial and general-purpose use.
- 2-position heavy-duty configuration
- Corrosion-resistant zinc-plated bridge
- Fast wiring with back/side terminals
Product Highlights
Designed for tough environments, the 1222W offers reliable performance with extensive safety features.
Product Information
Standard Information
-
Brand: Hubbell
-
MPN: 1222W
Technical Specifications
-
Actuator: Toggle
-
Voltage Rating: 120 to 277 VAC
-
Amperage Rating: 20 A
-
Power Rating: 5540 W
-
Operating Cycles: 50000 cycles
-
Environmental Conditions: -40 to 75 deg C
-
Dimensions: 4.18 x 1.49 x 1.83 inches
-
Material: Nylon/Thermoplastic
-
Number of Poles: 2
-
Mounting: Threaded
-
Contact Configuration: 2-Position
-
Terminal Type: Back/Side Wire
-
Standards/Approvals: RoHS Compliant, UL 20, UL94 V-2 Flammability Rating, CSA Certified
