HTPG RFO600E4SEA CU NXT GEN 6HP 230/3

Product Description

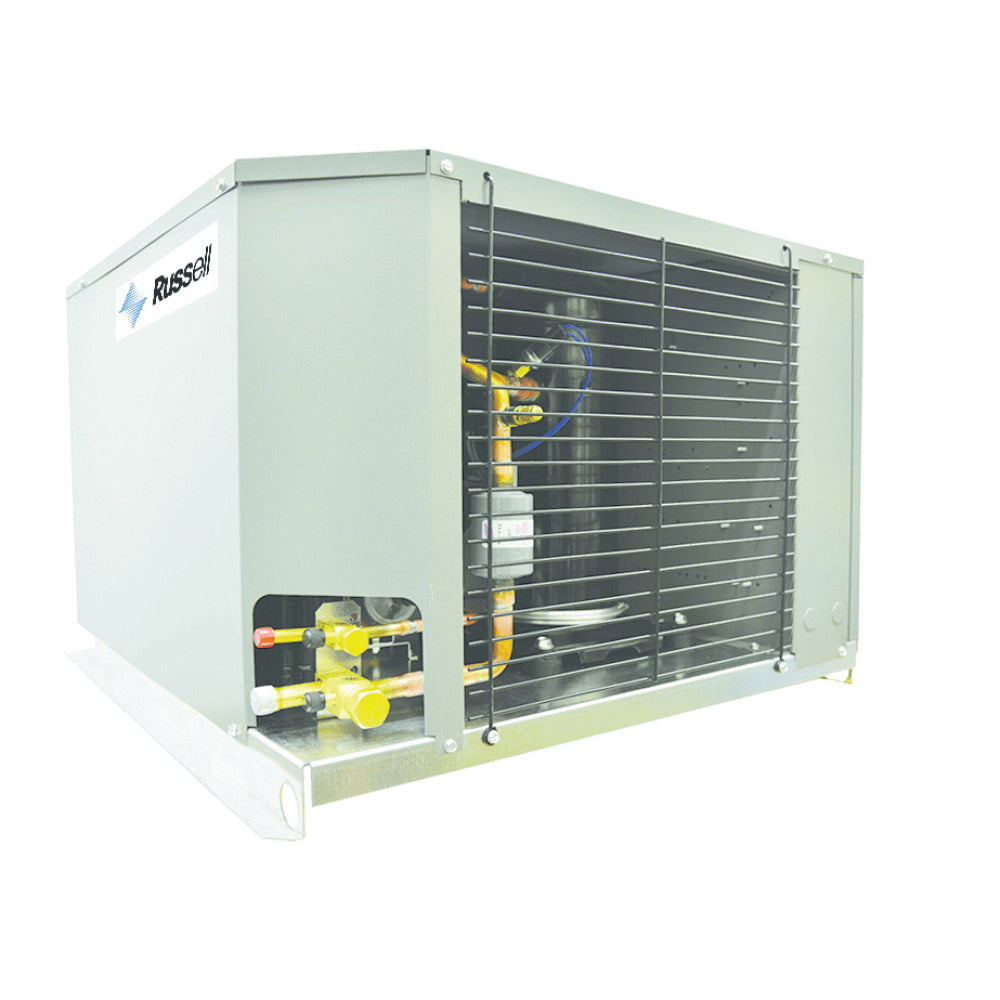

The HTPG RFO600E4SEA is a MiniCon air-cooled condensing unit designed for efficiency and flexibility. Built for lower long-term operating costs, this unit comes with an integral sub-cooling circuit that allows saturated liquid to flow from the receiver to the condenser. The refrigerant gets sub-cooled by ambient air for improved performance.

• Features an integral liquid sub-cooling circuit.
• High efficiency condenser with enhanced copper tubes and aluminum fins.
• Utilizes R404A or other low GWP refrigerants.

Product Highlights

This air-cooled unit meets various applications in HVAC systems and maintains a focus on sustainability.

Product Information

Standard Information

• Brand: HTPG
• MPN: RFO600E4SEA

Technical Specifications

• Series: R Series
• Voltage: 208 to 230 V
• Amperage: 30.9 A
• Horsepower: 6 hp
• Phase: 3 ph
• Frequency: 60 Hz
• Refrigerant: R-407A, R-407C, R-448A, R-449A
• Liquid Connection: 5/8 in
• Suction Connection: 1-1/8 in
• Sound Level: 76 dBA
• Material: Steel, Galvanized
• Dimensions: 35 in H x 43-7/8 in W x 33 in D
• Compressor Type: Scroll Compressor
• Temperature Range: Extended Medium Temperature Range
• Motor Type: PSC Motor
• Compressor Model: ZS45K4E
• Rated Load: 21.5 A
• Locked Rotor Compressor: 156 A
• Full Load Condenser Fan: 3.1 A
• MOPD: 50 A
• Maximum Evaporative Fan: 12 A
• Maximum Defrost: 30 A
• MCA: 42.9 A
• MOPD Electric Defrost: 60 A
