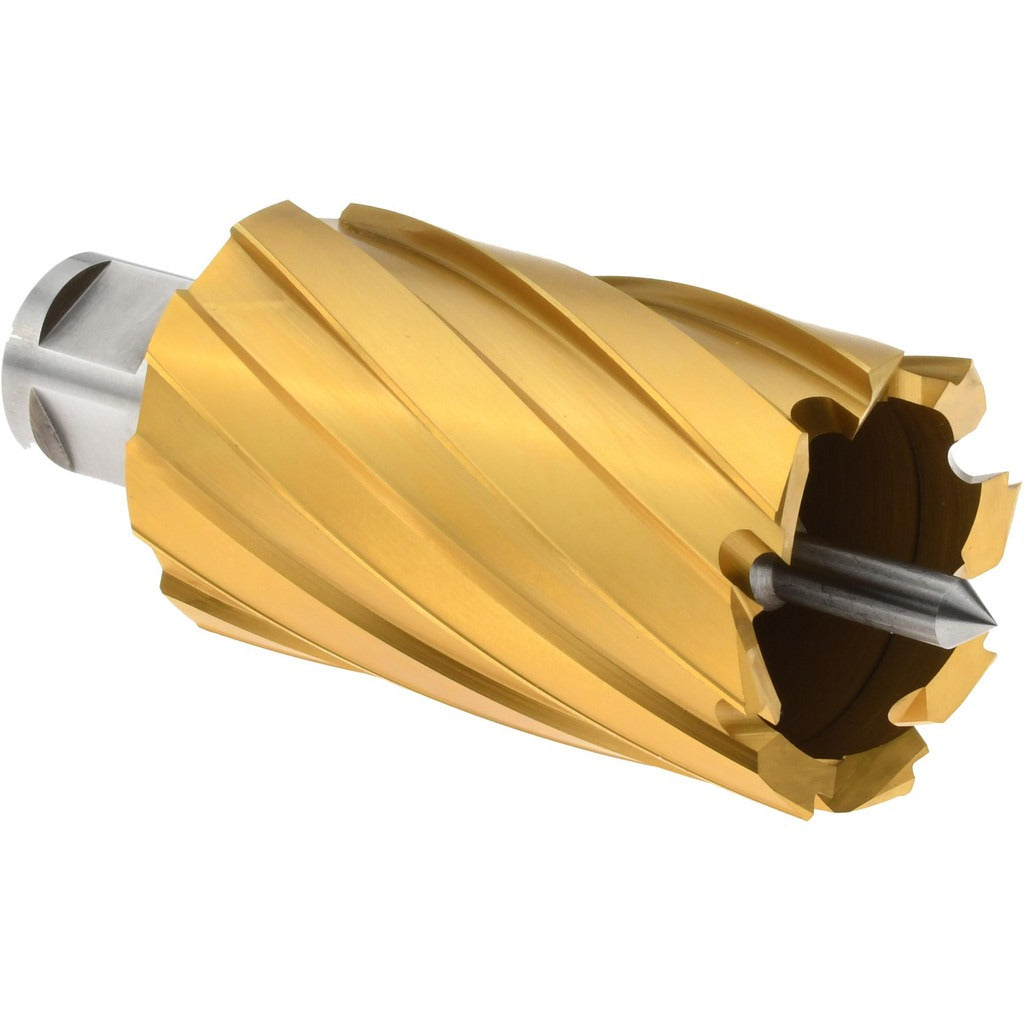

Hougen 12748 Annular Cutter 1-1/2 in 2 in Hss Tin

Product Description

The HOUGEN 12748 is a high speed steel annular cutter designed for fast, clean through-holes in ferrous metals. It cuts a 1-1/2 inch diameter hole to a depth of 2 inches using a core-style cutting action that removes only a slug rather than a full disc, reducing required torque and heat compared to twist-drill methods. The cutter is ground from M2 high speed steel and finished with a titanium nitride (TiN) coating to extend cutting life and reduce friction during deep cuts. It mounts via a 3/4 inch Weldon flat shank with two flats for positive tool retention in compatible magnetic drill presses and annular cutter holders.

This cutter is suited for structural steel fabrication, ironwork, and mechanical trades requiring accurate, burr-minimized holes in mild steel, stainless steel, and general steel stock. It is commonly used with magnetic base drills on job sites where a drill press is not practical, including beam work, plate drilling, and field steel fabrication. Licensed tradespeople in ironwork, pipefitting, and general mechanical construction are the primary installers.

Key Features

• 1-1/2 inch cutting diameter with 2 inch depth of cut for deep through-holes in structural sections
• M2 high speed steel construction for durability across mild and stainless steel applications
• Titanium nitride (TiN) coating reduces friction and extends cutter service life
• 3/4 inch Weldon flat shank with 2 flats ensures positive, non-slip chuck engagement
• Core-removal cutting action lowers required torque compared to solid-body drilling

Compatibility

Designed for use with magnetic drill presses and annular cutter arbors accepting a 3/4 inch Weldon flat shank. Rated for use in mild steel, stainless steel, and general steel stock.

Installation Notes

Installation is performed by metalworking tradespeople using a magnetic base drill or drill press equipped with a compatible Weldon shank arbor. Secure the cutter fully into the holder and verify both flat-engagement set screws are tightened before operation. Use cutting oil throughout the cut to manage heat buildup, particularly in stainless steel. Always clamp or magnetically secure the workpiece before beginning the cut to prevent movement.
