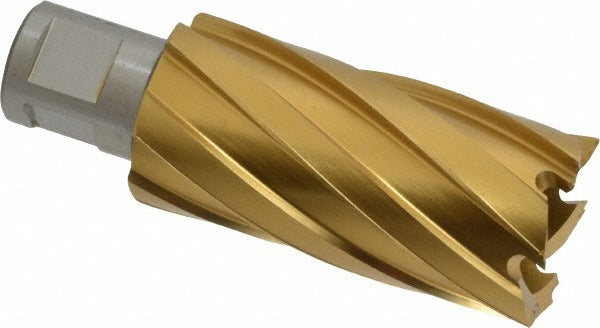

Hougen 12738 Annular Cutter 1-3/16 in Hss Tin

Product Description

The HOUGEN 12738 is a high speed steel annular cutter designed for clean, fast hole cutting in ferrous metals. With a 1-3/16 inch cutting diameter and a 2 inch depth of cut, this cutter removes only the material at the hole perimeter rather than boring out a solid slug, reducing the torque and horsepower required at the drill. The 3/4 inch Weldon flat shank with two flats seats securely in compatible magnetic drill press arbors. A TiN (titanium nitride) coating improves surface hardness and extends tool life when cutting mild steel and stainless steel. Material grade is M2 high speed steel.

The HOUGEN 12738 is suited for structural steel fabrication, ironwork, pipe fitting, and general metalworking applications. It performs in both portable magnetic drill presses and stationary drill press setups where a Weldon shank arbor is installed. Typical applications include bolt-hole drilling in steel plate, tube, and structural shapes. Rated for use in mild steel, stainless steel, and general steel stock.

Key Features

• 1-3/16 inch cutting diameter removes only the kerf, leaving a solid slug and reducing cutting force
• 2 inch depth of cut handles standard structural sections and heavier plate stock
• M2 high speed steel construction provides toughness and heat resistance
• TiN coating extends cutting edge life and reduces friction during the cut
• 3/4 inch Weldon flat shank with 2 flats locks into arbor without slipping
• Compatible with mild steel, stainless steel, and general steel applications

Compatibility

Designed for use with magnetic drill presses and drill press arbors accepting a 3/4 inch Weldon flat shank. Suitable for cutting mild steel, stainless steel, and general steel stock.

Installation Notes

Installation and use of this cutter should be performed by a qualified metalworker or machinist familiar with magnetic drill press operation. Secure the workpiece and ensure the magnetic drill base is fully engaged before starting the cut. Use cutting oil or an appropriate metalworking lubricant to extend cutter life and manage heat buildup. Inspect the Weldon flat shank seating in the arbor before each use to confirm the set screws are fully tightened against both flats.
