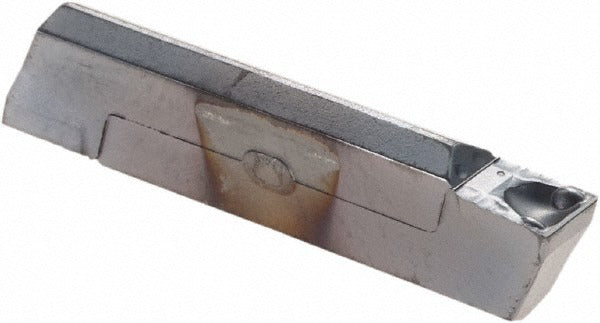

Horn S224030052TI25 Grooving Insert Solid Carbide

Product Description

The HORN S224030052TI25 is a solid carbide grooving insert designed for precision grooving and parting operations on CNC lathes and turning centers. Built to the S224 series standard, this insert features a 0.118-inch cutting width and a 0.008-inch corner radius, making it well suited for tight-tolerance groove profiles. The TI25 grade designation indicates a coated carbide substrate engineered for broad material compatibility across multiple workpiece categories. The insert mounts via screw-hold clamping and presents a 5-degree lead angle. At 0.866 inches overall length and 0.04 pounds, it is a compact, single-piece tooling component installed by machinists and CNC setup technicians.

This insert is rated for universal primary workpiece material compatibility, covering ISO material codes K, M, N, P, and S. That range spans cast iron, stainless steel, non-ferrous alloys, steel, and heat-resistant superalloys, making the S224030052TI25 a versatile stock item for job shops and production turning operations. It is available in both left-hand and right-hand cutting configurations within the same part number, supporting a variety of grooving orientations without requiring a dedicated handedness swap. Typical applications include external grooving, O-ring groove preparation, and recessing on turned components.

Key Features

• Solid carbide construction with TI25 manufacturer grade for broad material range
• 0.118-inch cutting width for consistent, repeatable groove geometry
• 0.008-inch corner radius for precise groove corner definition
• Screw-hold clamping method for secure, repeatable insert positioning
• 5-degree lead angle for controlled chip flow and reduced insert entry forces
• Compatible with ISO material codes K, M, N, P, and S workpiece materials

Compatibility

Designed as a direct-fit replacement insert for S224 series toolholders. Compatible with workpiece materials classified under ISO codes K, M, N, P, and S as stated by the manufacturer.

Installation Notes

Installation is performed by qualified machinists or CNC tooling setup technicians. Power down and lock out the machine spindle before changing inserts. Seat the insert fully in the pocket before tightening the clamping screw to the toolholder manufacturer specification. Inspect the pocket and clamping screw for wear or debris before seating a new insert to ensure proper support and repeatability.
