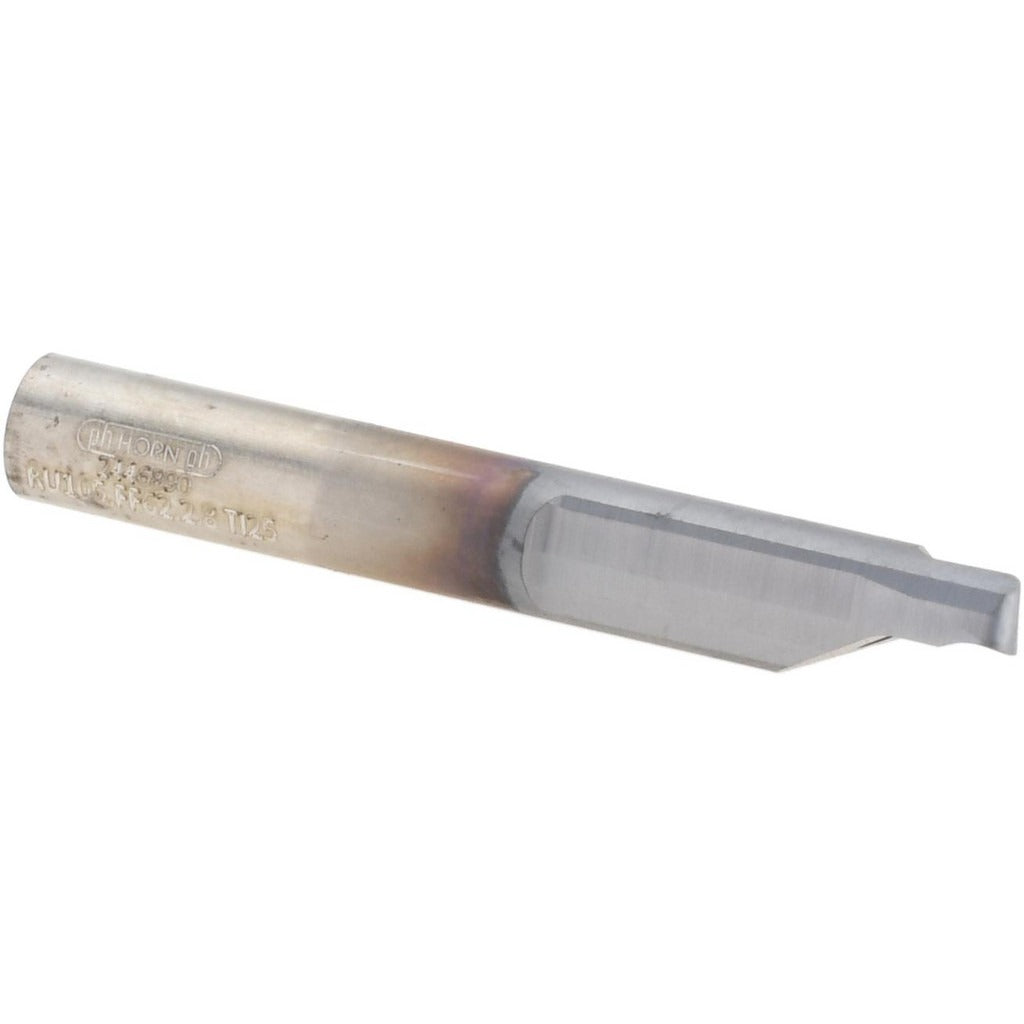

Horn RU105FF6228TI25 Grooving Tool 0.028 in Solid Carbide

Product Description

The HORN RU105FF6228TI25 is a solid carbide grooving tool designed for precision internal grooving operations in small-diameter bores. With a minimum hole diameter of 2.70 mm (approximately 0.106 inches) and a groove width of 0.70 mm (0.028 inches), this tool is engineered for tight-tolerance work where consistency and rigidity matter. The right-hand cutting direction suits standard machine spindle rotation. At 30.00 mm (1.181 inches) overall length with a 4.00 mm (0.157 inch) shank diameter, it fits compact toolholding setups common in Swiss-type and CNC turning centers. Machinists and toolroom technicians working on small precision components will find this tool suited to their applications.

This grooving tool is intended for internal grooving and groove-turning operations in small bores on CNC lathes, Swiss-type screw machines, and precision turning centers. It handles groove depths up to 12.00 mm (0.472 inches), making it applicable for retaining ring grooves, oil grooves, and similar features in small mechanical components. The solid carbide construction supports use in a range of workpiece materials where rigidity and cutting-edge sharpness are critical.

Key Features

• Solid carbide construction for rigidity and long tool life in precision grooving
• Right-hand cutting direction for standard spindle rotation
• 0.028 inch (0.70 mm) groove width for tight-tolerance groove features
• Minimum bore entry diameter of 2.70 mm supports very small hole applications
• Maximum groove depth of 0.472 inches (12.00 mm) suits a range of internal groove profiles
• Compact 30.00 mm overall length fits confined toolholding environments

Compatibility

Designed as an OEM-style grooving tool for use in CNC turning and Swiss-type machining setups requiring a 4.00 mm shank with right-hand internal grooving capability.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and the toolholder is secure before inserting or removing the tool. Verify shank clamping torque and runout per the toolholder manufacturer specifications before cutting. Confirm bore clearance and groove width requirements against the part drawing before beginning any grooving operation.
