Horn RS11402001D2TH3 Grooving Insert Solid Carbide TH35

Product Description

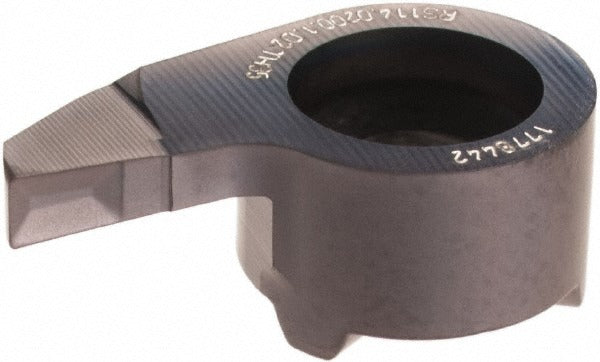

The HORN RS11402001D2TH3 is a solid carbide grooving insert designed for precision external grooving operations on CNC lathes and turning centers. Manufactured to the S114 series specification with TH35 grade carbide, this right-hand insert delivers consistent performance across a broad range of workpiece materials. It features a screw-clamping holding method for positive, repeatable seating in compatible S114 toolholders. The corner radius measures 0.0080 inches (0.20 mm), and the insert spans an overall length of 0.6220 inches (15.80 mm). This insert is suited for machinists and toolroom professionals requiring tight-tolerance grooving on production or job-shop turning applications.

The RS11402001D2TH3 is rated for universal primary workpiece material compatibility, covering material groups K, M, N, P, and S. This range includes cast irons, stainless steels, non-ferrous materials, steels, and heat-resistant superalloys. It is intended for use in professional CNC machining environments where consistent groove geometry and tool life are critical. The right-hand designation determines the cutting direction and toolholder orientation required for proper setup.

Key Features

• Solid carbide construction with TH35 manufacturer grade for wear resistance across multiple material groups
• Right-hand cutting orientation for standard CNC lathe grooving setups
• Corner radius of 0.0080 inches (0.20 mm) for controlled groove geometry
• Maximum depth of cut up to 6.50 mm for grooving applications
• Screw-type insert holding method ensures positive clamping and accurate indexing
• S114 series designation for direct compatibility with matching HORN S114 toolholders

Compatibility

Designed for use with S114 series toolholders. Compatible workpiece material groups include K, M, N, P, and S as specified by the manufacturer. Verify toolholder series and insert pocket configuration before installation.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Ensure the machine spindle is fully stopped and locked out before changing inserts. Use the correct torx or hex key for the clamping screw and tighten to the toolholder manufacturer specifications. Inspect the insert pocket for chips or debris before seating the new insert to prevent improper clamping and premature edge failure.
