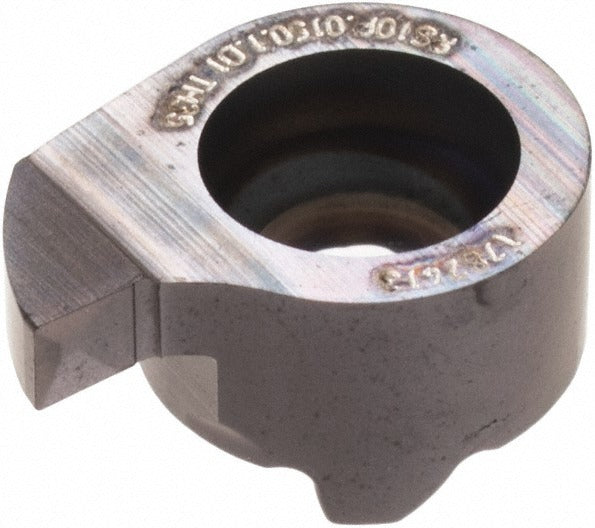

Horn RS10P01501D1TH35 Grooving Insert TH35 Carbide

Product Description

The HORN RS10P01501D1TH35 is a solid carbide grooving insert designed for precision external grooving and parting operations on CNC lathes and turning centers. Manufactured to TH35 grade carbide, this insert delivers consistent performance across a range of workpiece materials. It features a 1.5 mm cutting width, a maximum depth of cut of 2.0 mm, and a 0.10 mm corner radius. The screw-clamp holding method ensures rigid, repeatable seating in compatible S10P series toolholders. This insert is a right-hand cutting tool intended for professional machinists and toolroom technicians working in production or job-shop environments.

This insert is suited for grooving applications in both light and medium-duty turning operations. The TH35 grade and universal primary workpiece material designation make it appropriate for use on cast iron, steel, stainless steel, non-ferrous alloys, and high-temperature alloys. It is part of the S10P series and is sized for toolholders accepting the 01501D1 insert code. Typical applications include O-ring groove cutting, snap-ring groove cutting, and parting-off operations on small-diameter workpieces.

Key Features

• TH35 grade solid carbide construction for wear resistance across universal workpiece materials
• 1.5 mm cutting width for narrow, precise groove profiles
• 2.0 mm maximum depth of cut suitable for shallow grooving and parting
• 0.10 mm corner radius for sharp, clean groove walls
• Screw-clamp insert holding method for secure, repeatable positioning
• Right-hand cutting orientation for standard lathe spindle rotation

Compatibility

Designed for use with S10P series toolholders accepting insert size code 01501D1. Compatible with workpiece materials classified under ISO material groups K, M, N, P, and S, covering cast iron, steel, stainless steel, non-ferrous metals, and heat-resistant superalloys.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and the turret is indexed away from the work zone before replacing inserts. Use the correct screw-clamp torque driver specified by the toolholder manufacturer to seat the insert without cracking the carbide. Inspect the insert pocket and clamping screw for wear or debris before seating a new insert.
