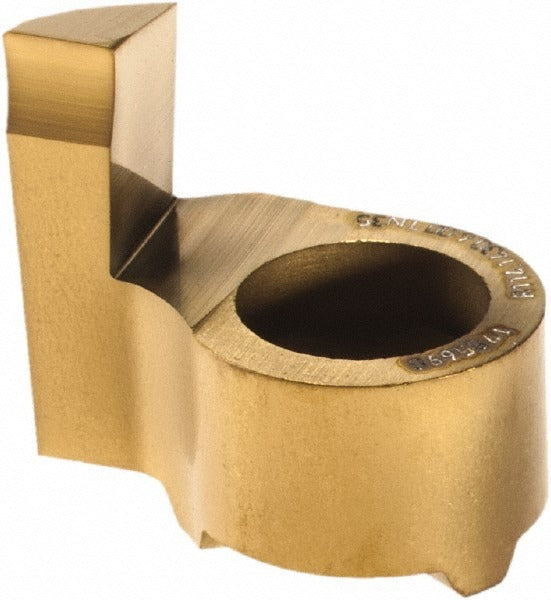

Horn R1141430600TN35 Grooving Insert Solid Carbide

Product Description

The HORN R1141430600TN35 is a solid carbide grooving insert designed for precision external and internal grooving operations on CNC lathes and turning centers. Built to Series 114 specifications, this right-hand insert carries the TN35 manufacturer grade and is held in place via a screw-clamping method for secure, repeatable positioning. The insert measures 0.531 inches in overall length and features a corner radius of 0.008 inches, supporting a maximum depth of cut of 6.00 mm. Machinists and tooling specialists working with turning applications will find this insert suited for tight-tolerance grooving work across a broad range of workpiece materials.

The R1141430600TN35 is rated for universal workpiece material compatibility, covering material codes K, M, N, P, and S. This includes cast iron, stainless steel, non-ferrous metals, general steel, and heat-resistant superalloys. It is appropriate for use in both production shop and job shop environments where consistent groove geometry and dimensional accuracy are required. The screw-held design makes indexing and insert changes straightforward during tool maintenance on the machine.

Key Features

• Solid carbide construction with TN35 manufacturer grade for wear resistance across universal workpiece materials
• Right-hand cutting orientation, Series 114 designation
• Maximum depth of cut of 6.00 mm
• Corner radius of 0.008 inches (0.20 mm) for controlled groove geometry
• Screw-held insert mounting for secure, repeatable clamping
• Overall length of 0.531 inches (13.50 mm)

Compatibility

Designed as an OEM-style replacement insert for HORN Series 114 toolholders and grooving systems that accept the 1430600 insert size in a right-hand, screw-held configuration.

Installation Notes

This insert is installed and indexed by a qualified machinist or tooling technician familiar with CNC turning tooling systems. Before replacing the insert, ensure the machine is powered down and the spindle is fully stopped. Use the correct torx or hex key as specified by the toolholder manufacturer when securing the clamping screw - do not overtighten. Confirm insert seating and alignment before returning the machine to operation.
