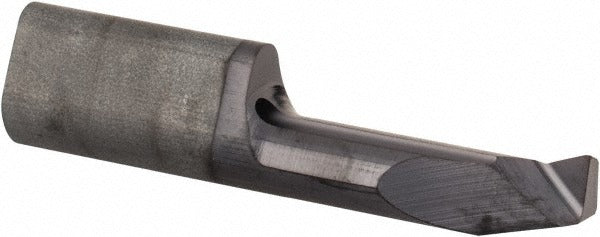

Horn R105182325TH35 Profile Boring Bar Solid Carbide

Product Description

The HORN R105182325TH35 is a solid carbide profile boring bar engineered for precision internal profiling operations on CNC turning centers and boring machines. It features a right-hand cutting direction and an AlTiN finish coating that improves heat resistance and tool life in demanding cutting conditions. The bar has a minimum bore diameter of 0.197 inches and a maximum bore depth of 0.591 inches, with an overall length of 1.378 inches. A 0.008-inch corner radius provides controlled edge geometry for consistent surface finish. This tooling is installed by machinists and CNC toolroom technicians working in production or job-shop environments.

This profile boring bar is suited for small-diameter internal profiling and finishing passes in ferrous and non-ferrous workpieces. Its compact geometry makes it appropriate for tight-bore applications where clearance is limited. The 4.00 mm shank diameter is compatible with toolholding systems designed for that bore size. The TH35 grade designation indicates the carbide substrate and coating combination selected by HORN for this geometry. Typical applications include internal contour turning, groove profiling, and finish boring in precision component manufacturing.

Key Features

• Solid carbide construction for rigidity and dimensional stability in small-bore applications
• AlTiN coating improves oxidation resistance and extends tool life at elevated cutting temperatures
• Right-hand cutting direction for standard CNC lathe and boring machine setups
• 0.008-inch corner radius for controlled profile geometry and surface finish
• Overall length of 1.378 inches supports reach requirements in short-bore configurations
• TH35 manufacturer grade specifies substrate and coating combination for this tool

Compatibility

Designed for use in toolholding systems accepting a 4.00 mm shank diameter. Confirm toolholder bore size and clamping method before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC toolroom technician. Ensure the machine spindle is fully stopped and the control is in an e-stop or locked-out state before changing tooling. Verify shank seating depth and runout with a dial indicator before production use. Follow the toolholder manufacturer guidelines for clamping torque and projection length.
