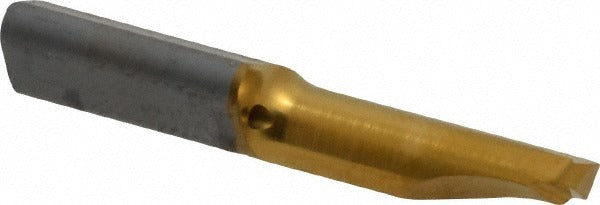

Horn R105051025TN35 Single Point Threading Tool

Product Description

The HORN R105051025TN35 is a solid carbide single point threading tool designed for internal thread cutting on CNC lathes and turning centers. It features a 60-degree profile angle with a TiN (Titanium Nitride) coating for extended tool life and reduced friction. The minimum threading diameter is 0.1772 inches (4.50 mm), and the cutting depth reaches 0.5906 inches (15.00 mm). Coolant-through capability supports chip evacuation and heat control during deep internal threading operations. At 0.5 pounds, this is a compact, precision-ground insert-style tool suited for close-tolerance thread forms in small-bore applications.

This tool is intended for internal threading operations where tight bore diameters and precise thread profiles are required. It supports both left-hand and right-hand thread directions, making it versatile across a range of part configurations. Typical applications include threading small hydraulic fittings, precision shafts, medical components, and aerospace hardware. The 60-degree profile covers the most common unified and metric thread standards encountered in general machining and production environments. Installation and setup are performed by qualified CNC machinists or toolroom technicians.

Key Features

• Solid carbide construction for rigidity and wear resistance in small-bore internal threading
• TiN coating reduces friction and extends cutting edge life
• 60-degree profile angle compatible with common unified and metric thread forms
• Coolant-through design supports chip evacuation and thermal management
• Supports both left-hand and right-hand thread directions
• Compact overall length of 30.00 mm suited for restricted-access bore entry

Compatibility

Designed for use in CNC lathes and turning centers configured for single point internal threading with toolholders accepting this shank geometry and size class.

Installation Notes

Installation should be performed by a qualified CNC machinist or toolroom technician. Always power down and lock out the machine before mounting or adjusting tooling. Verify correct tool projection and center height alignment before initiating a threading cycle. Confirm coolant-through lines are clear and active to maintain chip control during operation.
