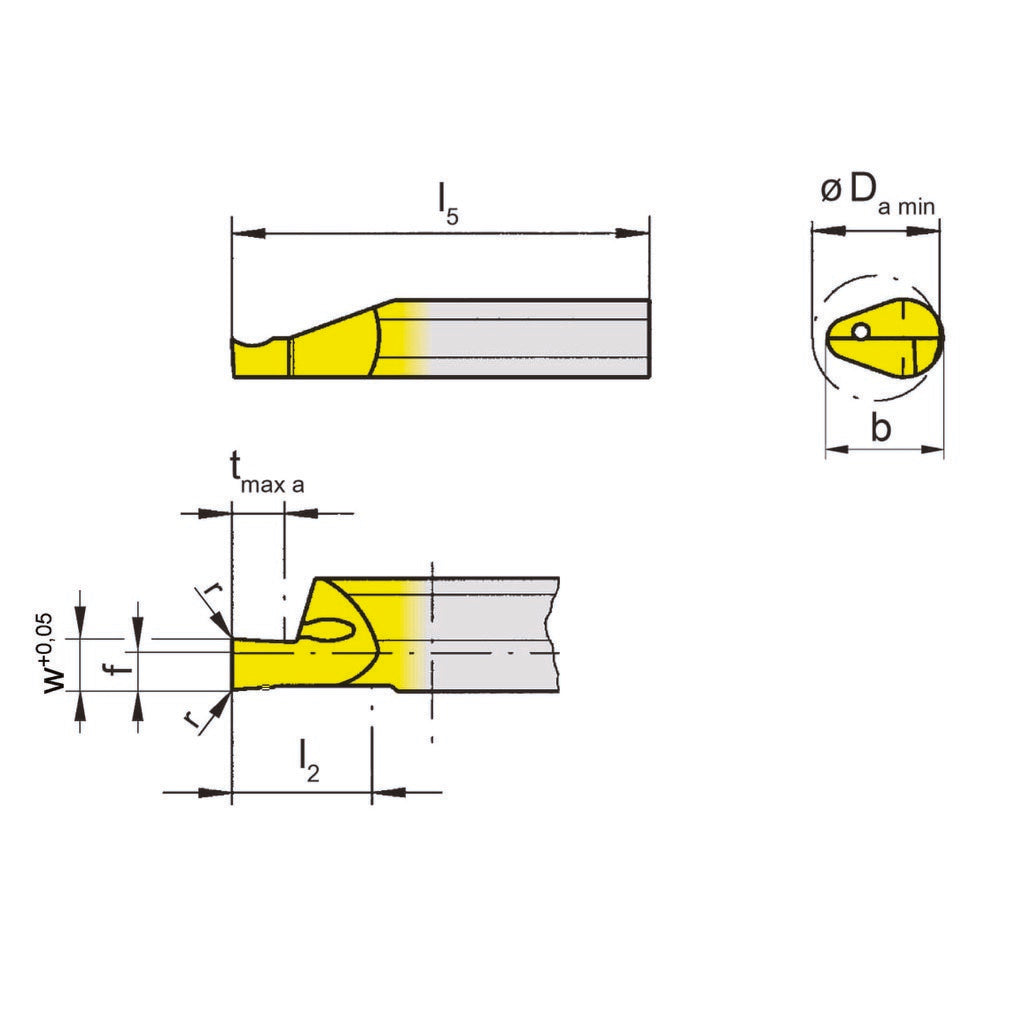

Horn R105051018TI25 Face Grooving Tool Solid Carbide

Product Description

The HORN R105051018TI25 is a solid carbide face grooving tool designed for internal grooving operations on bores and recesses. It produces a 0.0390-inch-wide groove and is built for precision work in small-diameter applications. The solid carbide construction provides the rigidity and wear resistance required for consistent, repeatable cuts in demanding materials. This tool is suited for use by machinists and toolroom professionals working on lathes and turning centers where tight tolerances and clean groove geometry are required.

This face grooving tool is intended for internal face grooving in bores starting at a minimum hole diameter of 0.1970 inches, with a maximum hole depth of 0.3940 inches. The 0.1180-inch projection allows the tool to reach into the bore and execute precise groove cuts. It is commonly used in production turning, repair machining, and precision component manufacturing where internal face grooves are required for snap rings, seals, or fluid passages.

Key Features

• Solid carbide construction for rigidity and long tool life in demanding cutting conditions
• 0.0390-inch groove width for precise, narrow internal face grooves
• Minimum hole diameter of 0.1970 inches supports small-bore applications
• Maximum hole depth of 0.3940 inches for adequate reach in typical bore configurations
• 0.1180-inch projection allows controlled engagement at the grooving face
• Overall length of 0.9840 inches for compact fitment in tight tooling setups

Compatibility

Designed as an OEM-style replacement and standard tooling option for CNC turning centers and manual lathes requiring internal face grooving capability in small-bore workpieces.

Installation Notes

This tool is installed by qualified machinists or toolroom technicians following standard toolholder mounting procedures for the applicable machine. Ensure the machine spindle is fully stopped and the tool is properly clamped and torqued in the holder before operation. Confirm bore diameter and depth are within the specified working range before engaging the cut. Follow the machine manufacturer and tooling manufacturer guidelines for feeds, speeds, and coolant application.
