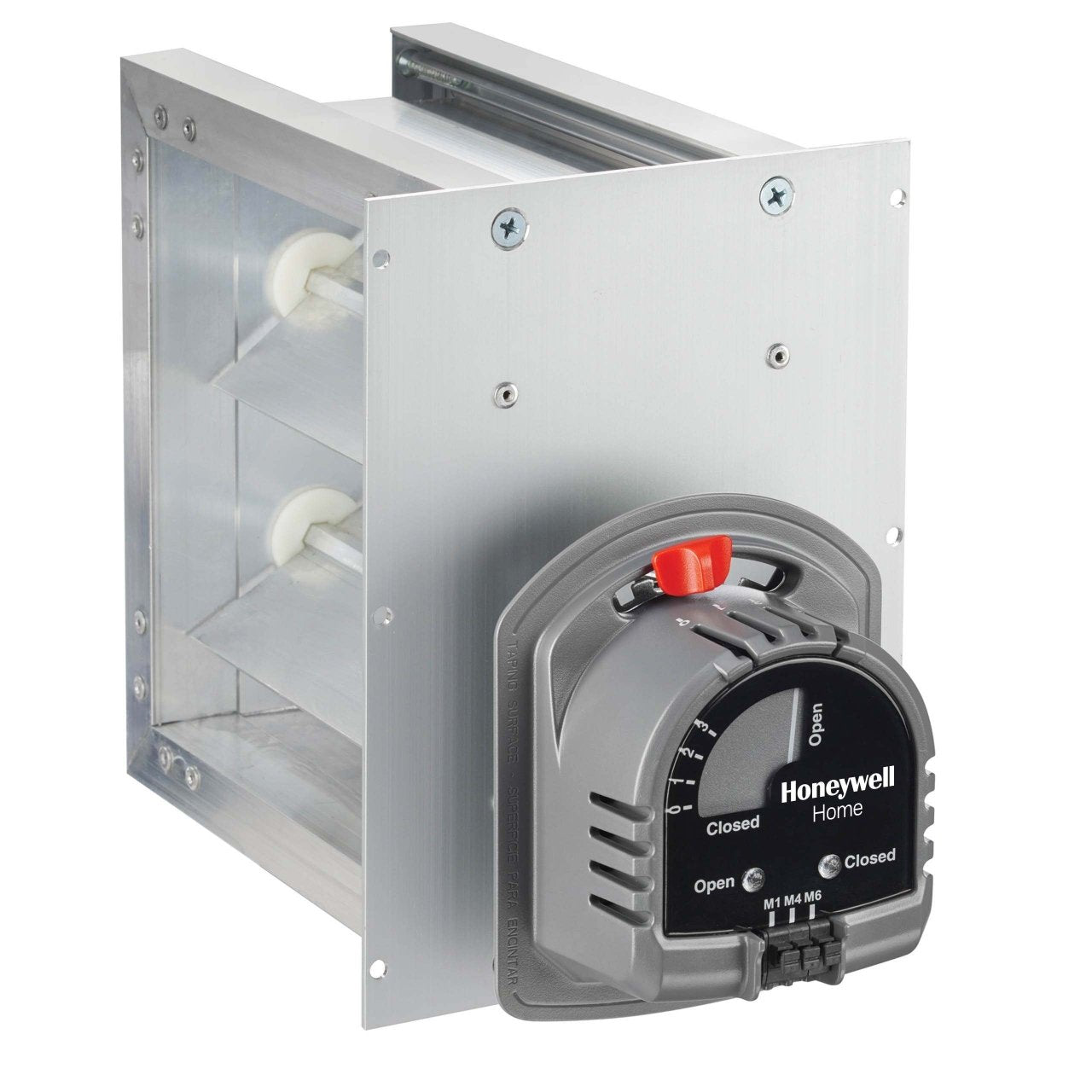

Honeywell ZD8X18TZ/U Damper Parallel Blade 8X18 Truezone

Product Description

The HONEYWELL ZD8X18TZ/U is a damper parallel blade designed for Truezone systems. This damper features a 24V spring-return motor to control circulating air in HVAC systems. It is used when a normally open damper is required and is compatible with conventional and networked zoning.

• Power close, spring open
• Parallel blade design for low leakage performance
• Simple, easy-to-wire, 2-wire installation

Product Highlights

The Honeywell ZD8X18TZ/U damper offers reliable air control with its durable construction and easy installation, suitable for various HVAC zoning applications.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ZD8X18TZ/U
• Country of Origin: Import

Technical Specifications

• Brand: HONEYWELL
• MPN: ZD8X18TZ/U
• Size: 8 in x 18 in
• Material: Aluminum
• Type: Zone Damper
• Shape: Rectangular
• Voltage: 24V
• Application: Parallel Blade Damper
• Damper Duct Shape Type: Rectangular
• Blade Action: Parallel
• Motor or Actuator Mounting: Bottom
• Motor: Power closed, spring open
• Motor Timing: 30 seconds power open/10 seconds spring return
• Wires to Motor: Terminals: M1-Power; M6 Common; M4 (optional)-LED indication
• Actuator Torque: 71 in-oz
• Leakage: Less than 1% at 0.5 in WC
• Postition Indicator Included: Yes
• Position Indicator Type: Damper Position Range Stops, LED indication light for open and close
• Range Stop: Yes
• Range Stop Options: 4
• Domestic / Import: Import
• Rotation Angle: 90 deg
• Voltage Rating: 24 V
• Electrical Connections: M1-Power/M6-Common/M4-LED Indication Terminal
• Manufacturer: Honeywell
• Series: ZD Series
• Temperature Rating: 32 to 120 deg F
• Timing: 30 s
• Additional Information: 8 x 18 in Opening Size
• Blade Type: Parallel
• Electrical Connection: Push Terminal
• Frequency Rating: 60 Hz
• Model: ZD
• Motor Type: Spring Open, Power Closed
• Mounting Type: Bottom
• Pressure Rating: 1 in-WC
• VA Rating: 8 VA
• Width: 4-41/64 in
• Height: 4-31/32 in
• Length: 3-61/64 in
