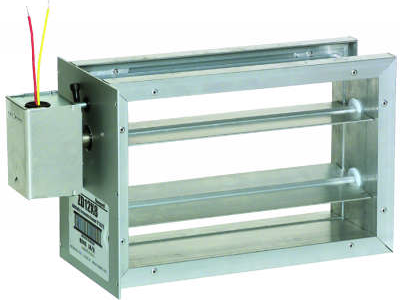

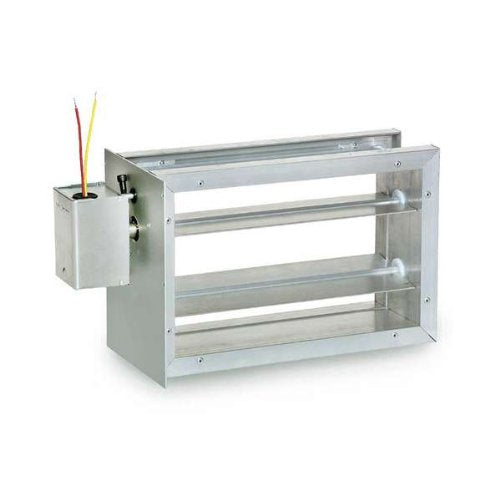

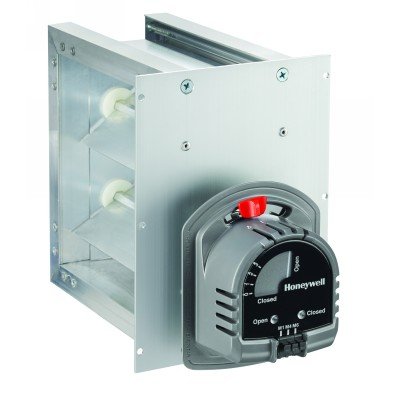

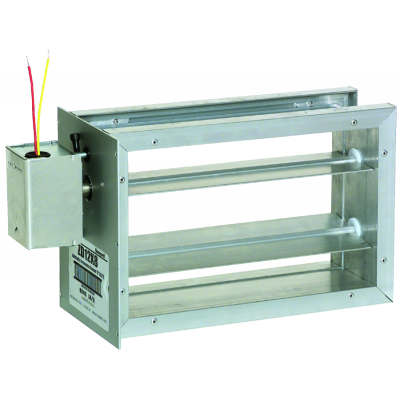

Honeywell ZD8X16 8 x 16 inch Rectangular Zone Damper

Product Description

The HONEYWELL ZD8X16 is an 8 x 16 inch rectangular zone damper. This power close and spring open damper utilizes a 24-volt motor to manage circulating air in heating, cooling, and ventilating systems, typically used with TrueZONE and other electronic zoning systems, and is required when a normally-open damper is needed.

• Kevlar gearing reduces wear and doubles damper life.
• Features a mechanical visual position indicator for damper status.
• Designed with a parallel blade for low leakage performance.

Product Highlights

The ZD8X16 damper features a 24V motor, adjustable range stops, and a simple two-wire installation. Its solid construction includes an extruded aluminum frame and blades.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ZD8X16

Technical Specifications

• Size: 8" x 16"
• Voltage: 24V
• Application: Air Quality
• Features: Adjustable Range Stops
• Motor: Spring Return
• Motor Side: 16"
• Shape: Rectangle
• Wires to Motor: 2
• Manufacturer: Honeywell
• Product Number: ZD8X16
• Category: HVAC
