Honeywell ZD8X10TZ/U damper parallel blade 24V (8 x 10) ZD8X10TZ

Product Description

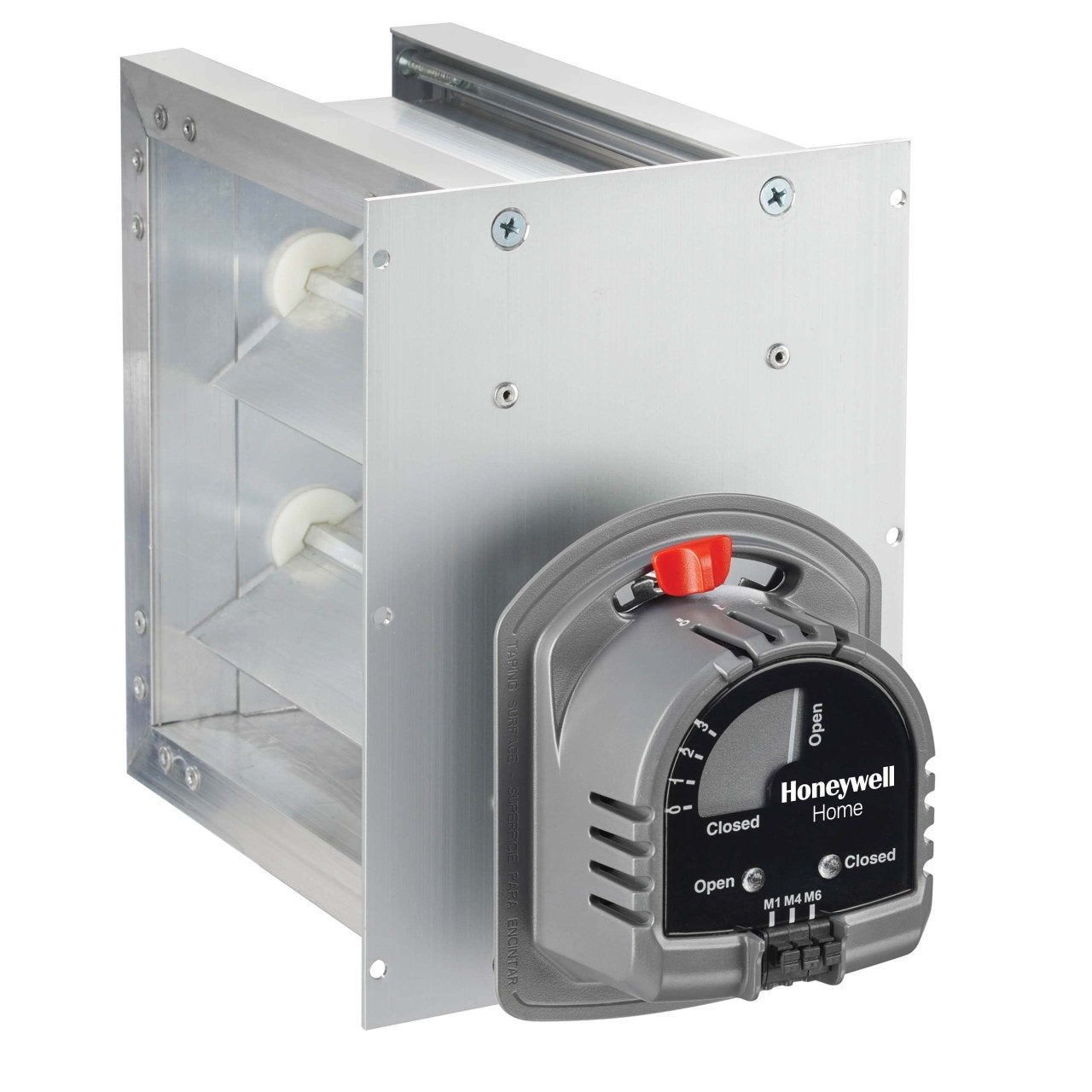

Honeywell ZD8X10TZ/U is an 8 in x 10 in parallel blade zone damper designed for residential HVAC zoning systems. It features a 24 V spring-return motor (power close, spring open) with approximately 90 degree rotation and 30 s power-open / 10 s spring-return timing. The damper uses an extruded aluminum frame and blades with low-leakage parallel action and a mechanical visual position indicator for zone airflow control.

• 24 V power-close, spring-open motor; rated current 0.32 A; approximately 90° rotation
• Extruded aluminum frame and parallel blades with leakage less than 1% at 0.5 in WC and mechanical position indicator
• Motor timing 30 seconds power open / 10 seconds spring return; terminals M1 (power), M6 (common), M4 (optional LED indication); mounts in any orientation

Product Highlights

8 x 10 parallel blade zone damper for TrueZONE and other electronic zoning systems with 24 V spring-return motor, low-leakage aluminum construction, and visual position indication.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ZD8X10TZ/U
• Country of Origin: Imported

Technical Specifications

• Brand: Honeywell
• MPN: ZD8X10TZ/U
• Series: ZD Series (TrueZONE)
• Model: ZD8X10TZ/U
• Type: Parallel blade zone damper
• Size: 8 in H x 10 in W
• Shape: Rectangular
• Material: Extruded aluminum frame and blades
• Input Voltage: 24 VAC
• Current: 0.32 A
• Rotation Angle: 90 degrees
• Motor Operation: Power close, spring open (spring-return, fail-safe normally open)
• Motor Timing: 30 seconds power open / 10 seconds spring return
• Actuator Torque: 71 in-oz
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator: Mechanical visual position indicator; range stops
• Electrical Connections: Terminals: M1 (Power), M6 (Common), M4 (optional LED indication)
• Mounting Orientation: Can be installed in any orientation
• Operating Temperature: 32 to 120 F
• Application: Residential HVAC zoning, TrueZONE and other electronic zoning systems
• Blade Action: Parallel
• Typical Use: Control airflow in duct runs for zoning systems
• Country of Origin: Imported
